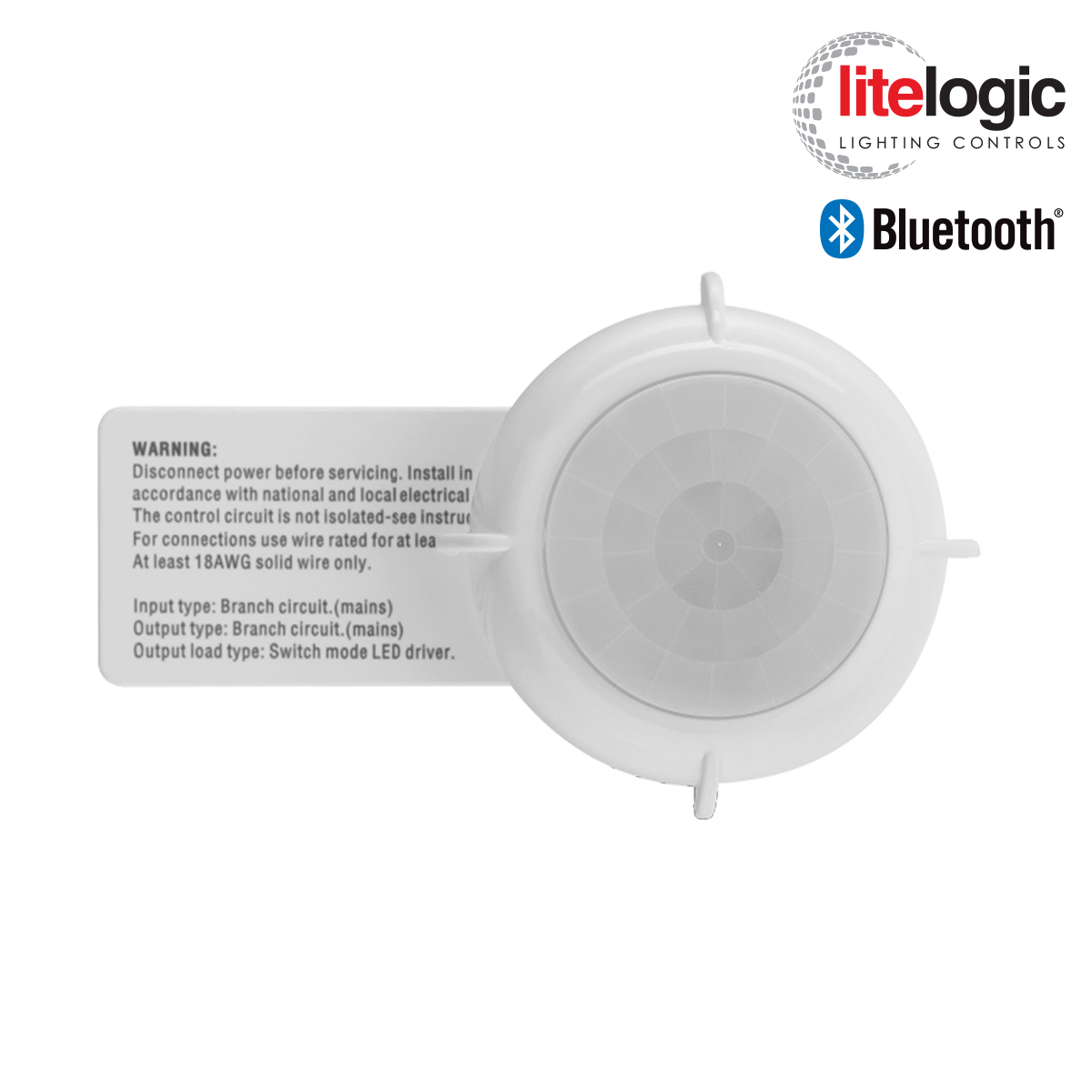

LE-MS1-HB1 Series LiteLogic Integral Highbay PIR Motion Sensor with Daylight Harvesting

The LE-MS1 is an AC powered, integrated sensor for highbay and other indoor or outdoor luminaires. Equipped with LiteLogic wireless Bluetooth® mesh technology and a user-friendly interface that can be programmed within minutes using just your smartphone, automation becomes effortless, energy, labor and material costs are significantly reduced, and setting up lighting control becomes a breeze. LiteLogic sensors are easily installed on-site and are compatible with a variety of Trace-Lite fixtures. Equipped with highbay lens for mounting heights up to 40 feet.

cULus Listed CE Compliant DLC Qualified California Title 24 IP66 Rated for protection from high pressure water jets from any direction FCC Approved Litelogic bluetooth Warranty

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP66, suitable for indoor use
  • Finish: White
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F), case temperature if installed within a fixture
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 120-277VAC, 50/60Hz
  • Input Current: 8A Max
  • Input Power: 960W @ 120V, 2216W @ 277V
  • Output Voltage: 120-277VAC
  • Output Current: 8A Max
  • Output Power: 960W @ 120V, 2216W @ 277V
  • Dimming: 0-10VDC, 10mA max
  • Sinking Current: 10mA max

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, UL 1376, RohS
  • FCC ID: 2A26YLTKTVT2021
  • DesignLights Consortium Qualified Product

Features & Benefits

  • Includes LiteLogic wireless Bluetooth® mesh technology
  • Mounting heights up to 40 feet
  • Built-in analog PIR sensor
  • Daylight harvesting option
  • Suitable for indoor use (IP66 rated)

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 200' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 4.2

Sensor Details

  • Detection Range: 32'-80'
  • Mounting Height: up to 40'
