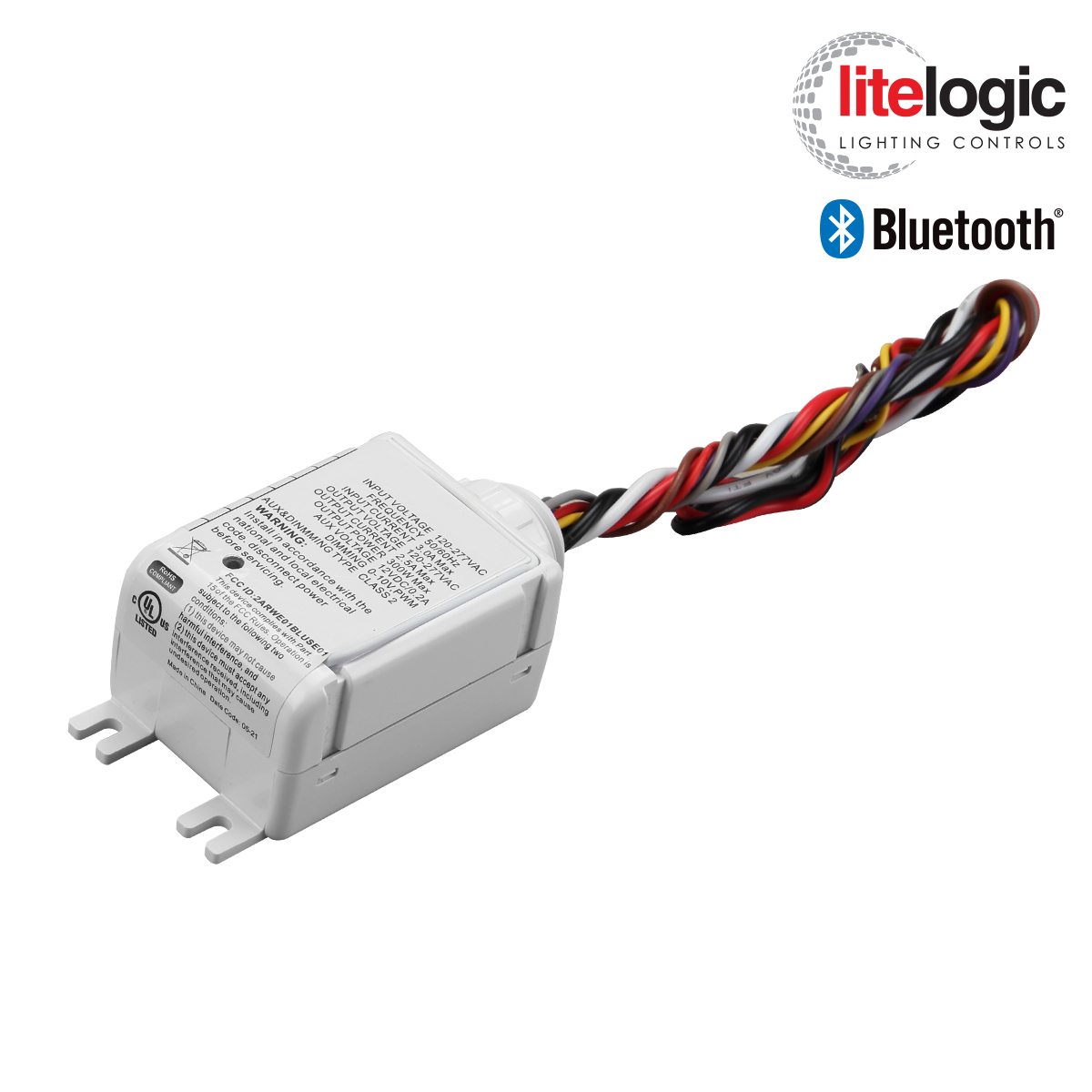

LE-C1 Series LiteLogic 120-277VAC Fixture Controller Sensor Ready

The LE-C1 fixture controller is Bluetooth enabled to manage luminaires via the LiteLogic app. It can also be equipped to manage LiteLogic sensor equipped luminaires by simply plugging it into the sensor. The LE-C1 provides 0-10V dimming wires for bi-level motion control and relay output.

cULus Listed CE Compliant DLC Qualified California Title 24 FCC Approved Litelogic bluetooth Warranty

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP20, Indoor Use Only
  • Finish: White
  • Operating Temperature: -30°C to 65°C (-22°F to 149°F), case temperature when installed within a fixture
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 120-277VAC
  • Frequency: 60Hz
  • Input Current: 6A max
  • Input Power: 360W max @ 120V, 360W max @ 277V
  • Output Voltage: 120-277VAC
  • Output Current: 3A max
  • Output Power: 360W max @ 120V, 360W max @ 277V
  • Dimming: Class 2, 0-10VDC, 10mA max
  • Sinking Current: 10mA max

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, UL 2043, UL 1376, RohS

Features & Benefits

  • Includes LiteLogic wireless Bluetooth® mesh technology
  • Switches connected loads on and off in response to the LiteLogic app or sensors
  • Threaded connection attaches to enclosures through standard 1/2" knockouts

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 200' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 4.2

LE-C1 Series LiteLogic 120-277VAC Fixture Controller Sensor Ready
