LiteLogic
LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting is LiteLogic compatible.

More LiteLogic Products

New

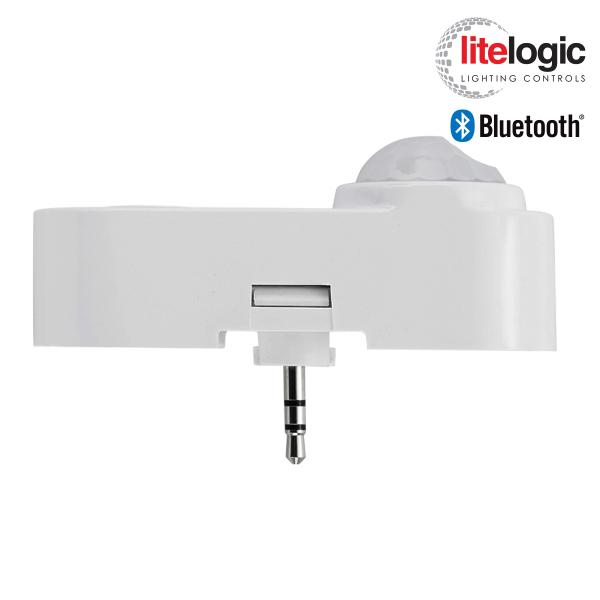

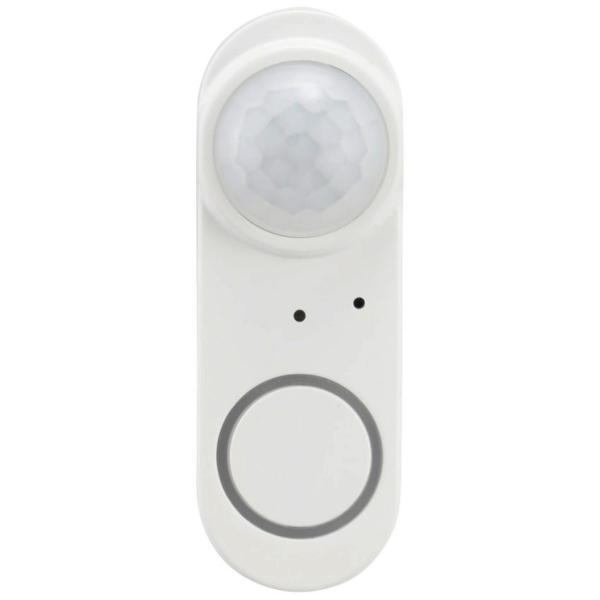

LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

The LE-MS6-AUX is a DC powered, external sensor for panels and other indoor luminaires. Equipped with LiteLogic wireless Bluetooth® mesh technology and a user-friendly interface that can be programmed within minutes using just your smartphone, automation becomes effortless, energy, labor and material costs are significantly reduced, and setting up lighting control becomes a breeze. LiteLogic sensors are easily installed on-site and are compatible with a variety of Trace-Lite fixtures. Equipped with lowbay lens for mounting heights up to 15 feet.

UL Certified CE Compliant DLC Qualified rohs_green FCC Approved Litelogic bluetooth Warranty

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP20, suitable for indoor use only
  • Finish: White
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 12VDC
  • Input Current: 25mA max
  • Input Power: 0.3W

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, UL 1376, RohS
  • FCC ID: 2A26YLTKTVT2022
  • DesignLights® Consortium Qualified Product

Features & Benefits

  • Mounting heights up to 15 feet
  • Built-in analog PIR sensor
  • Daylight harvesting option
  • Suitable for indoor use

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 100’ max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 5.0

Sensor Details

  • Detection Range: up to 16’
  • Mounting Height: up to 15’
LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

Energy Rebates

Qualified products may be eligible for utility rebates.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New


LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

The LE-MS6-AUX is a DC powered, external sensor for panels and other indoor luminaires. Equipped with LiteLogic wireless Bluetooth® mesh technology and a user-friendly interface that can be programmed within minutes using just your smartphone, automation becomes effortless, energy, labor and material costs are significantly reduced, and setting up lighting control becomes a breeze. LiteLogic sensors are easily installed on-site and are compatible with a variety of Trace-Lite fixtures. Equipped with lowbay lens for mounting heights up to 15 feet.

UL Certified CE Compliant DLC Qualified rohs_green FCC Approved Litelogic bluetooth Warranty

Need more information?

We are happy to answer any questions you have about the LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting.

Spec Sheet Request More Info Rebate Finder

Configure your LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

Model

Configure your LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting

Model

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP20, suitable for indoor use only
  • Finish: White
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 12VDC
  • Input Current: 25mA max
  • Input Power: 0.3W

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, UL 1376, RohS
  • FCC ID: 2A26YLTKTVT2022
  • DesignLights® Consortium Qualified Product

Features & Benefits

  • Mounting heights up to 15 feet
  • Built-in analog PIR sensor
  • Daylight harvesting option
  • Suitable for indoor use

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 100’ max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 5.0

Sensor Details

  • Detection Range: up to 16’
  • Mounting Height: up to 15’
LE-MS6-AUX Series LiteLogic Panel PIR Motion Sensor with Daylight Harvesting
