SML Series Low-glare Architectural LED Wallpack

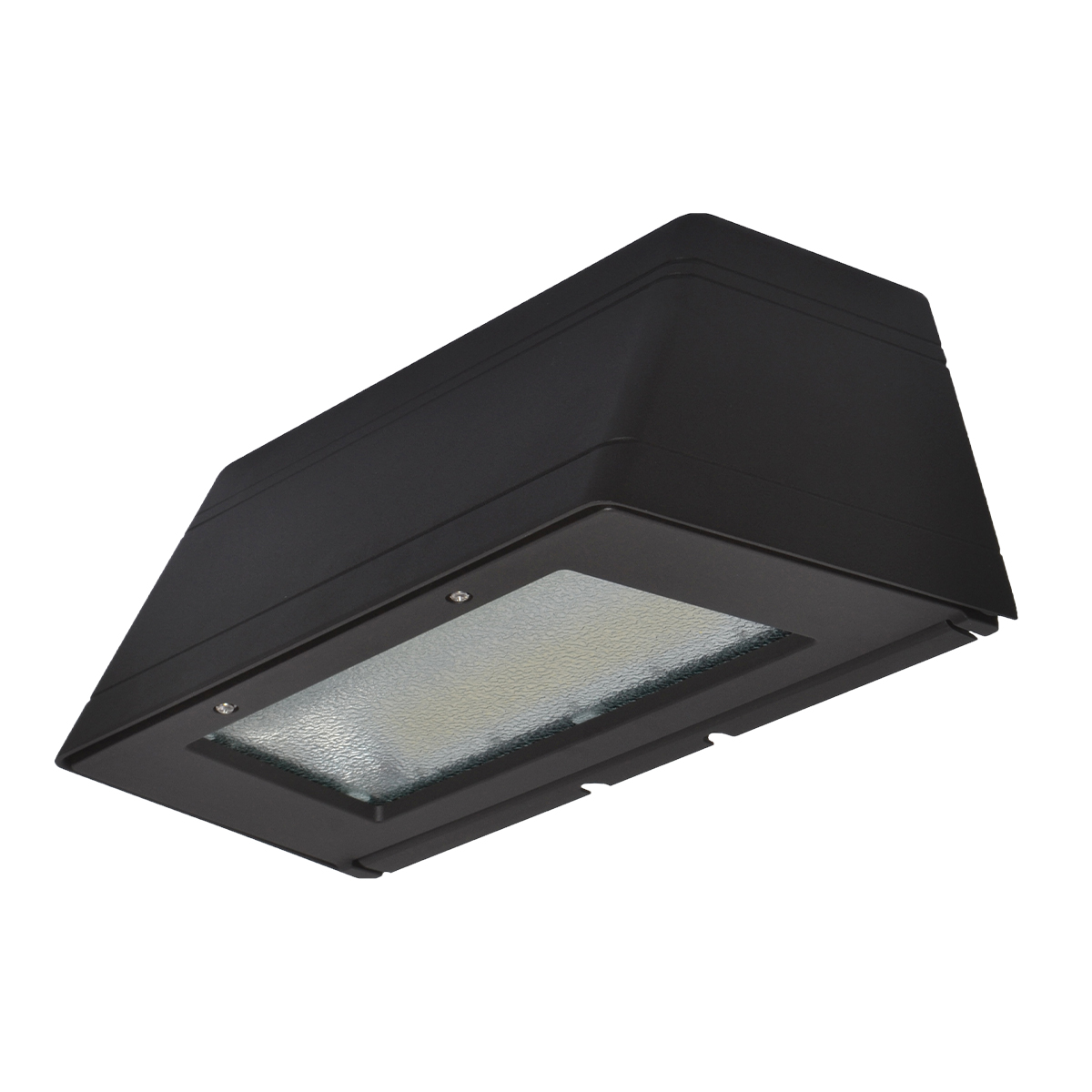

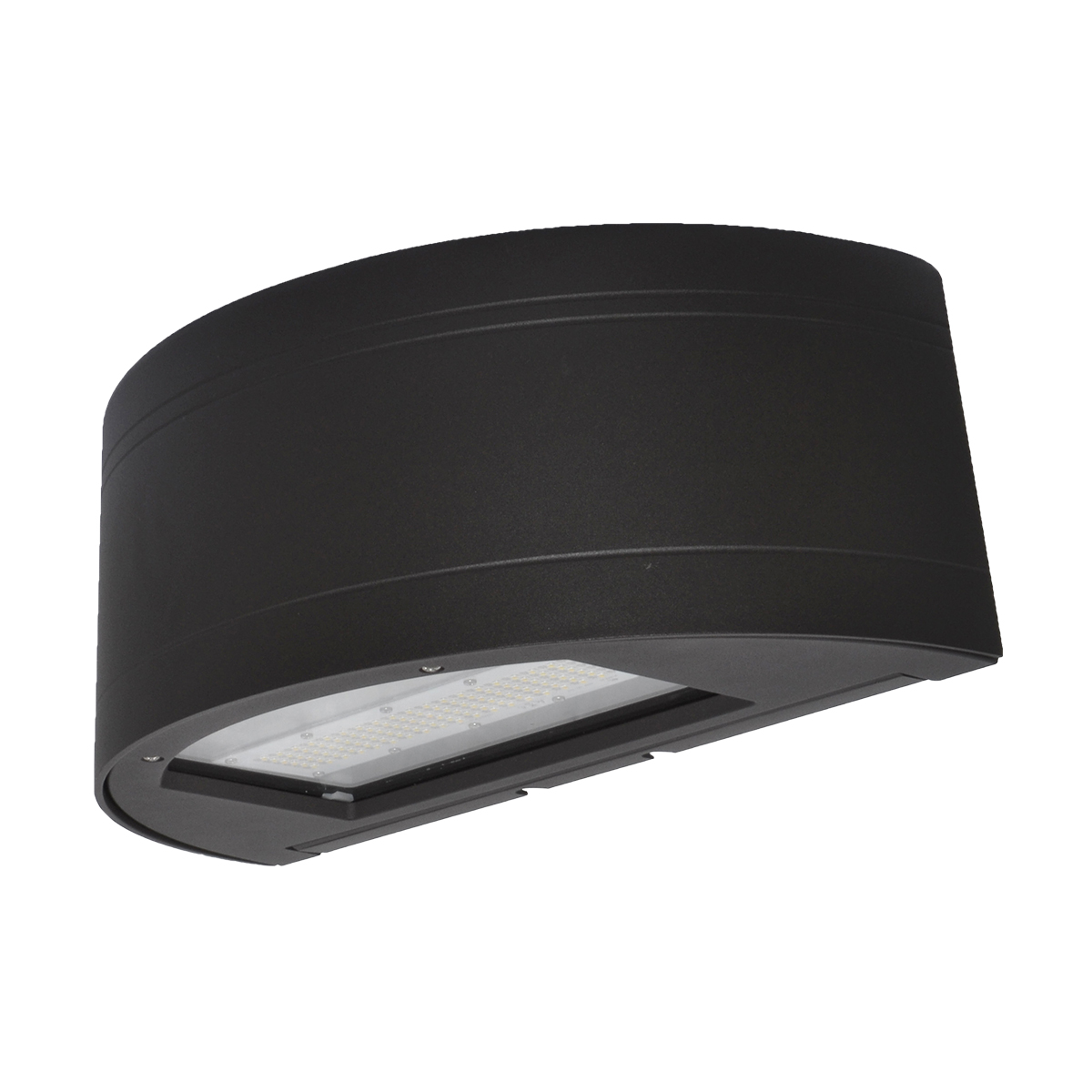

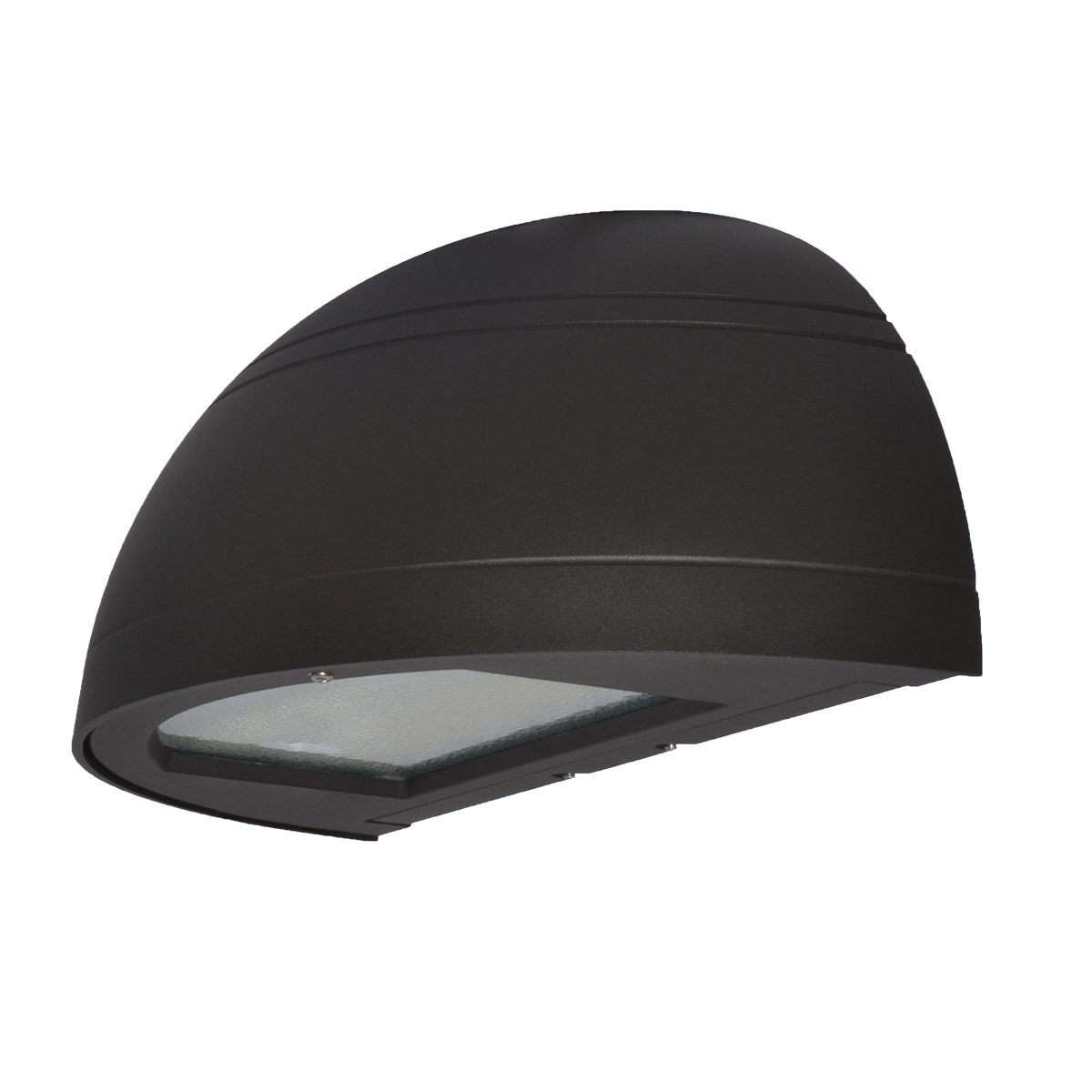

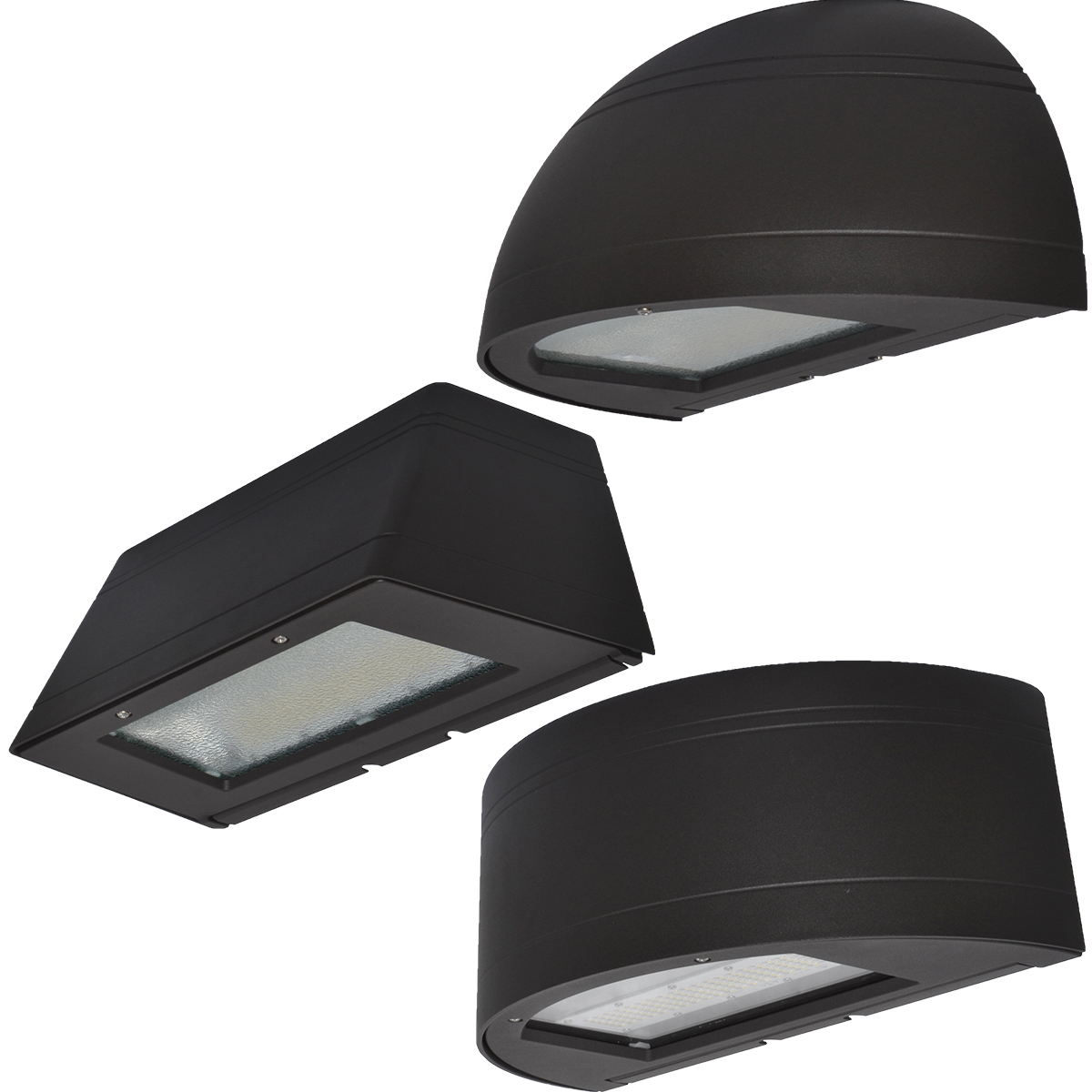

The SML Series full cut-off wall pack is elegant as it is functional. With high performance LEDs and long lasting driver, this fixture provides effective lighting all around. This family of products is offered in several shapes, such as trapezoid, half-round, and quarter-sphere, to complement any building exterior. This series is ideal for new constructions or retrofit applications as these fixtures maintain traditional footprints.

UL Certified DLC Premium rohs_green cULus Listed for Wet Locations switchable_color_power Warranty

Construction

  • Die-cast aluminum housing
  • Reflector: Forward throw or wide throw
  • UV-stabilized powder coat finish
  • Bronze finish standard (Custom finishes available, consult factory)

Optics/LEDs

  • CCT: Field-switchable between 3000K/4000K/5000K
  • CRI: 70+
  • Efficacy up to 157lm/W

Installation

  • Mounts to a standard 3.5” or 4” electrical J-box
  • Same footprint as a traditional wallpack

Electrical

  • Input: 120-277VAC
  • Wattage: Field-switchable between 25W/45W/65W

Options

  • Integral battery backup (Option: EM) provides egress lighting during power outages
  • Intergral occupancy sensor (Option: OC)
  • Photocell (Option: PC)
  • 10kV Surge protection (Option: SS)

Testing & Compliance

  • cULus Listed for Wet Locations
  • DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)
  • RoHS Compliant

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
SML Series Low-glare Architectural LED Wallpack


Contact us or your sales rep if you need a part number that isn't listed here.

Energy Rebates

Qualified products may be eligible for utility rebates.
