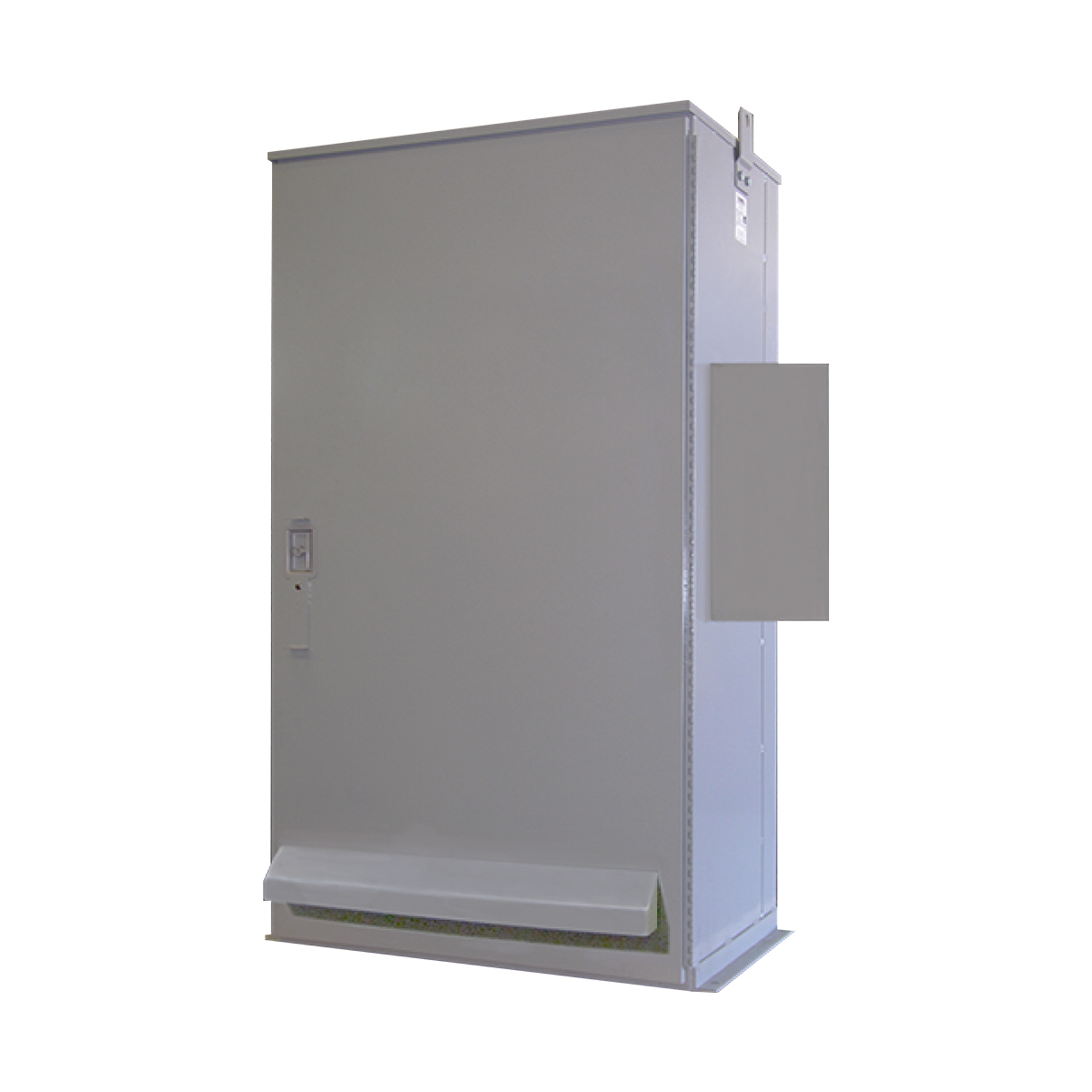

Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW


Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

Spec Sheet Request More Info

The Sonoran 3 is a three-phase, online, double-conversion, Solid-state inverter system utilizing patented ECM technology. The Sonoran 3 functions in conjunction with the existing building electrical system to provide high-quality power conditioning, backup power protection and distribution for lighting loads and other critical loads. The enclosure is a NEMA 4 (outdoor) or NEMA 12 (indoor) rainproof/weatherproof enclosure designed for harsh environmental conditions.

ETL Compliant Buy American Act Build America Buy America Warranty

Features & Benefits

  • Input Voltage Range: +10% -15%
  • Output Voltage: 208Y/120 or 480Y/277VAC
  • Recharge Current: Conforms to UL 924 standards
  • Efficiency: ≥92% at 100% linear load
  • Listing: ETL Listed to UL 924 and 1778 cETL Listed to CSA-22.2 No. 107.3 and No. 141
  • Cabinet: NEMA 4X or 12
  • Complies with the Buy American Act (Level 3) and Build America Buy America requirements
Sonoran 3 Series Spec Sheet
Inverter Battery Qty & Electrolytes
SDS Sheets
Sonoran 3 System Current Ratings
Sonoran 3 Remote Indicator Panel
Sonoran 3 Integration
Sonoran 3 Flow Diagram
Sonoran 3 External Maintenance Bypass Switch
Sonoran 3 Conduit and Cabinet
Sonoran 3 Components
Sonoran 3 ECM Configuration
Inverter Factory Installed Accessories
Inverter Sell Sheet
Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

IES Files


Accessories - Factory Installed

##KAIC
##KAIC
12HR
12 Hour Battery Recharge
BAC
BACnet/IP Communication Interface
EBW#
Extended Battery Warranty (# - Specify Number of Years)
ECM120/#
120V Environmental Control Module / Qty
ECM277/#
277V Environmental Control Module / Qty
EMB
External Maintenance Bypass Switch
EMI
Electromagnetic Interference Filter
EPO
Emergency Power Off
EW
Extended Warranty
FCON
Form C Contacts
HTR
Internal Heater
IDB
Internal Dimmer Bypass
IMS
Intelligent Monitoring System
ISO
Isolation Transformer
MB
Modbus Interface
NOF/V/#
Normally OFF Output Circuit / Voltage / Qty
NOH/V/#
Normally OFF “Hold ON” / Voltage / Qty
OCB/V/#/A
Output Circuit Breakers / Voltage / Qty / Amps
OST
Onsite Start-Up
PFCON-7
Seven Programmable Form C Contacts
RP
Remote Indicator Panel
SC
Service Contract
SFST
Soft Start
SNMP
SNMP Card
SS
Stainless Steel Enclosure

Contact us or your sales rep if you need a part number that isn't listed here.

SON3-4.5-480Y/277-480Y/277-90
SON3-10-480-480Y/277-90
SON3-20-480Y/277-480Y/277-90

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite
Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW


Sonoran 3 Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

The Sonoran 3 is a three-phase, online, double-conversion, Solid-state inverter system utilizing patented ECM technology. The Sonoran 3 functions in conjunction with the existing building electrical system to provide high-quality power conditioning, backup power protection and distribution for lighting loads and other critical loads. The enclosure is a NEMA 4 (outdoor) or NEMA 12 (indoor) rainproof/weatherproof enclosure designed for harsh environmental conditions.

ETL Compliant Buy American Act Build America Buy America Warranty

Need more information?

We are happy to answer any questions you have about the Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW.

Spec Sheet Request More Info

Configure your Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

Series
Power Rating
Input/Output Voltage
Run Time

Configure your Sonoran 3 Series Three Phase, Outdoor, Harsh Environment Online Emergency Lighting Inverter 3.0 to 125.0KW

Series
Power Rating
Input/Output Voltage
Run Time

Features & Benefits

  • Input Voltage Range: +10% -15%
  • Output Voltage: 208Y/120 or 480Y/277VAC
  • Recharge Current: Conforms to UL 924 standards
  • Efficiency: ≥92% at 100% linear load
  • Listing: ETL Listed to UL 924 and 1778 cETL Listed to CSA-22.2 No. 107.3 and No. 141
  • Cabinet: NEMA 4X or 12
  • Complies with the Buy American Act (Level 3) and Build America Buy America requirements
##KAIC
##KAIC

12HR
12 Hour Battery Recharge

BAC
BACnet/IP Communication Interface

EBW#
Extended Battery Warranty (# - Specify Number of Years)

ECM120/#
120V Environmental Control Module / Qty

ECM277/#
277V Environmental Control Module / Qty

EMB
External Maintenance Bypass Switch

EMI
Electromagnetic Interference Filter

EPO
Emergency Power Off

EW
Extended Warranty

FCON
Form C Contacts

HTR
Internal Heater

IDB
Internal Dimmer Bypass

IMS
Intelligent Monitoring System

ISO
Isolation Transformer

MB
Modbus Interface

NOF/V/#
Normally OFF Output Circuit / Voltage / Qty

NOH/V/#
Normally OFF “Hold ON” / Voltage / Qty

OCB/V/#/A
Output Circuit Breakers / Voltage / Qty / Amps

OST
Onsite Start-Up

PFCON-7
Seven Programmable Form C Contacts

RP
Remote Indicator Panel

SC
Service Contract

SFST
Soft Start

SNMP
SNMP Card

SS
Stainless Steel Enclosure


Contact us or your sales rep if you need a part number that isn't listed here.

SON3-4.5-480Y/277-480Y/277-90
SON3-10-480-480Y/277-90
SON3-20-480Y/277-480Y/277-90

Enter your zip code to find a representative in your area.
