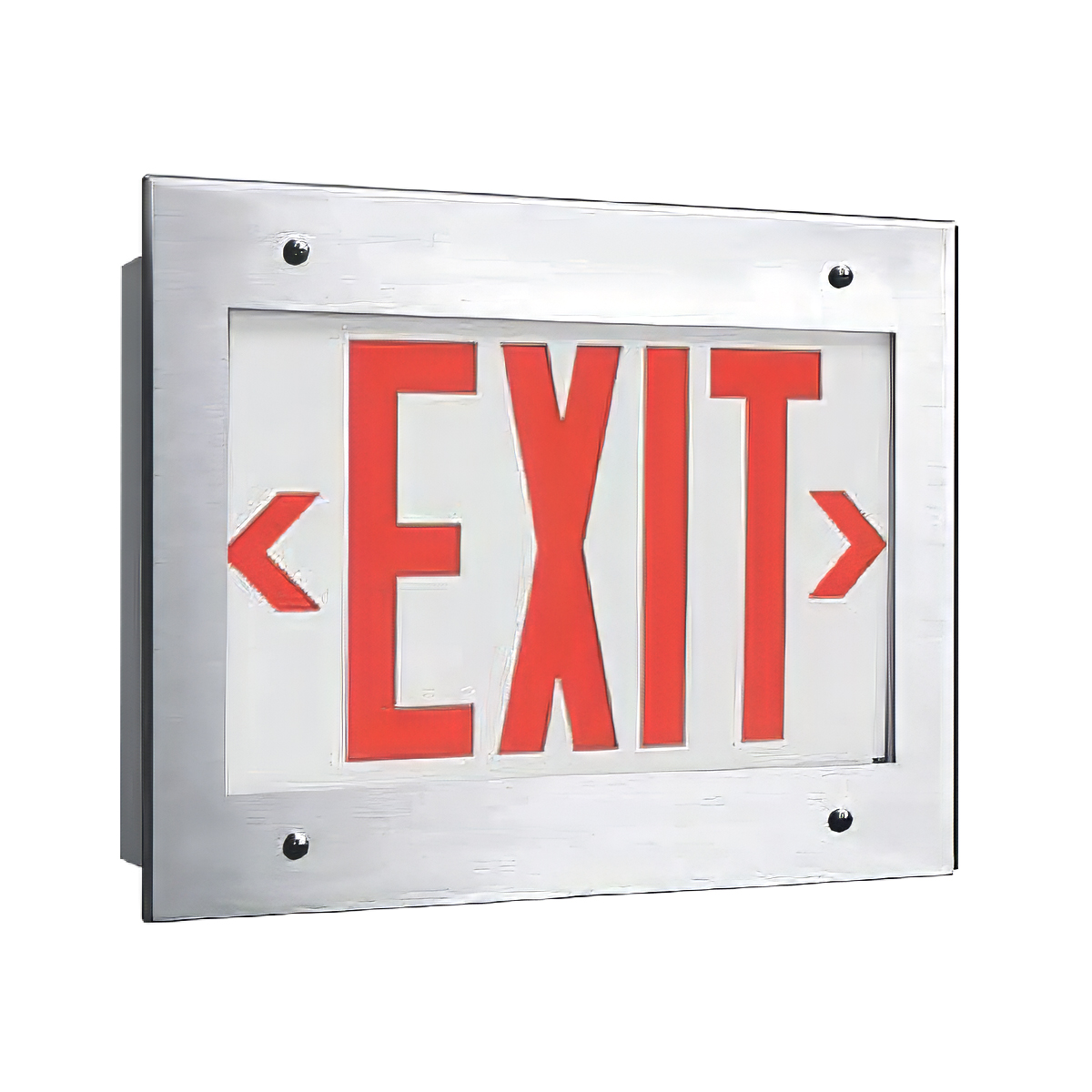

MAEX Series Medical Recessed LED Exit

The MAEX Series is a high-performance LED exit sign designed to withstand demanding environments, making it ideal for medical facilities and other public areas where safety and security are paramount.The MAEX features a robust aluminum, cold rolled or stainless steel enclosure, a polycarbonate lens, and optional tamper-resistant hardware, ensuring durability in even the toughest applications. It is available with red or green LEDs and battery backup models (WB) are standard with self-test/self-diagnostics. The MAEX series is the perfect solution for providing clear and reliable exit signage in entryways, stairwells, corridors, and other areas within Medical facilities or any space requiring a heavy-duty, vandal-resistant EXIT sign.

ETL Compliant cULus Listed for Wet Locations IP65 Rated for protection from low pressure water jets from any direction IK10 Rated for Impact Protection Buy American Act Build America Buy America Warranty
MAEX Series Medical Recessed LED Exit

MAEX Series Medical Recessed LED Exit

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New


Medical Recessed LED Exit

The MAEX Series is a high-performance LED exit sign designed to withstand demanding environments, making it ideal for medical facilities and other public areas where safety and security are paramount.The MAEX features a robust aluminum, cold rolled or stainless steel enclosure, a polycarbonate lens, and optional tamper-resistant hardware, ensuring durability in even the toughest applications. It is available with red or green LEDs and battery backup models (WB) are standard with self-test/self-diagnostics. The MAEX series is the perfect solution for providing clear and reliable exit signage in entryways, stairwells, corridors, and other areas within Medical facilities or any space requiring a heavy-duty, vandal-resistant EXIT sign.

ETL Compliant cULus Listed for Wet Locations IP65 Rated for protection from low pressure water jets from any direction IK10 Rated for Impact Protection Buy American Act Build America Buy America Warranty

Need more information?

We are happy to answer any questions you have about the MAEX Series Medical Recessed LED Exit.

Spec Sheet Request More Info

Configure your MAEX Series Medical Recessed LED Exit

Series
Power Source
Housing/Door
Gauge Size
Legend Color
Finish
Options

Features

Applications

  • Biosafety and Containment
  • Classrooms
  • Containment Areas
  • Corridors
  • Exit
  • Isolation Areas
  • Laboratories
  • Packaging and Staging
  • Research and Development
  • Vivariums

Features & Benefits

  • Durable, high-abuse construction, IK10 Rated
  • One-piece seam welded aluminum, cold rolled steel or stainless steel housing
  • Stainless Steel overlapping doorframe with 0.125” clear polycarbonate lens
  • Tamper-Resistant Hardware option available (Option: TRH)
  • Self-test/self-diagnostics standard with WB configuration
  • Constant, uniform illumination by long-life, high intensity, red or green LEDs
  • 120/277V Dual primary, 60Hz input
  • Maintenance-free NiCad battery
  • Operating Temp: 10°C to 45°C (50°F to 113°F)
  • ETL Listed 90 Minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons included for all configurations
  • Recessed Mount
  • Antimicrobial White, White, Black, Brushed or Polished Finish
  • ETL Listed, Salt spray test: 1,000 hours; Reflectance: 92%, IP65 per IEC 60598, meets or exceeds UL 924 and NFPA 101 Standards, meets or exceeds CSA and NRCAN requirements, Class 100 (ISO 5) Cleanroom, IK10 Impact Rated
  • Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions apply)

Configure your MAEX Series Medical Recessed LED Exit

Series
Power Source
Housing/Door
Gauge Size
Legend Color
Finish
Options

Features

Applications

  • Biosafety and Containment
  • Classrooms
  • Containment Areas
  • Corridors
  • Exit
  • Isolation Areas
  • Laboratories
  • Packaging and Staging
  • Research and Development
  • Vivariums

Features & Benefits

  • Durable, high-abuse construction, IK10 Rated
  • One-piece seam welded aluminum, cold rolled steel or stainless steel housing
  • Stainless Steel overlapping doorframe with 0.125” clear polycarbonate lens
  • Tamper-Resistant Hardware option available (Option: TRH)
  • Self-test/self-diagnostics standard with WB configuration
  • Constant, uniform illumination by long-life, high intensity, red or green LEDs
  • 120/277V Dual primary, 60Hz input
  • Maintenance-free NiCad battery
  • Operating Temp: 10°C to 45°C (50°F to 113°F)
  • ETL Listed 90 Minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons included for all configurations
  • Recessed Mount
  • Antimicrobial White, White, Black, Brushed or Polished Finish
  • ETL Listed, Salt spray test: 1,000 hours; Reflectance: 92%, IP65 per IEC 60598, meets or exceeds UL 924 and NFPA 101 Standards, meets or exceeds CSA and NRCAN requirements, Class 100 (ISO 5) Cleanroom, IK10 Impact Rated
  • Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions apply)
MAEX Series Medical Recessed LED Exit
