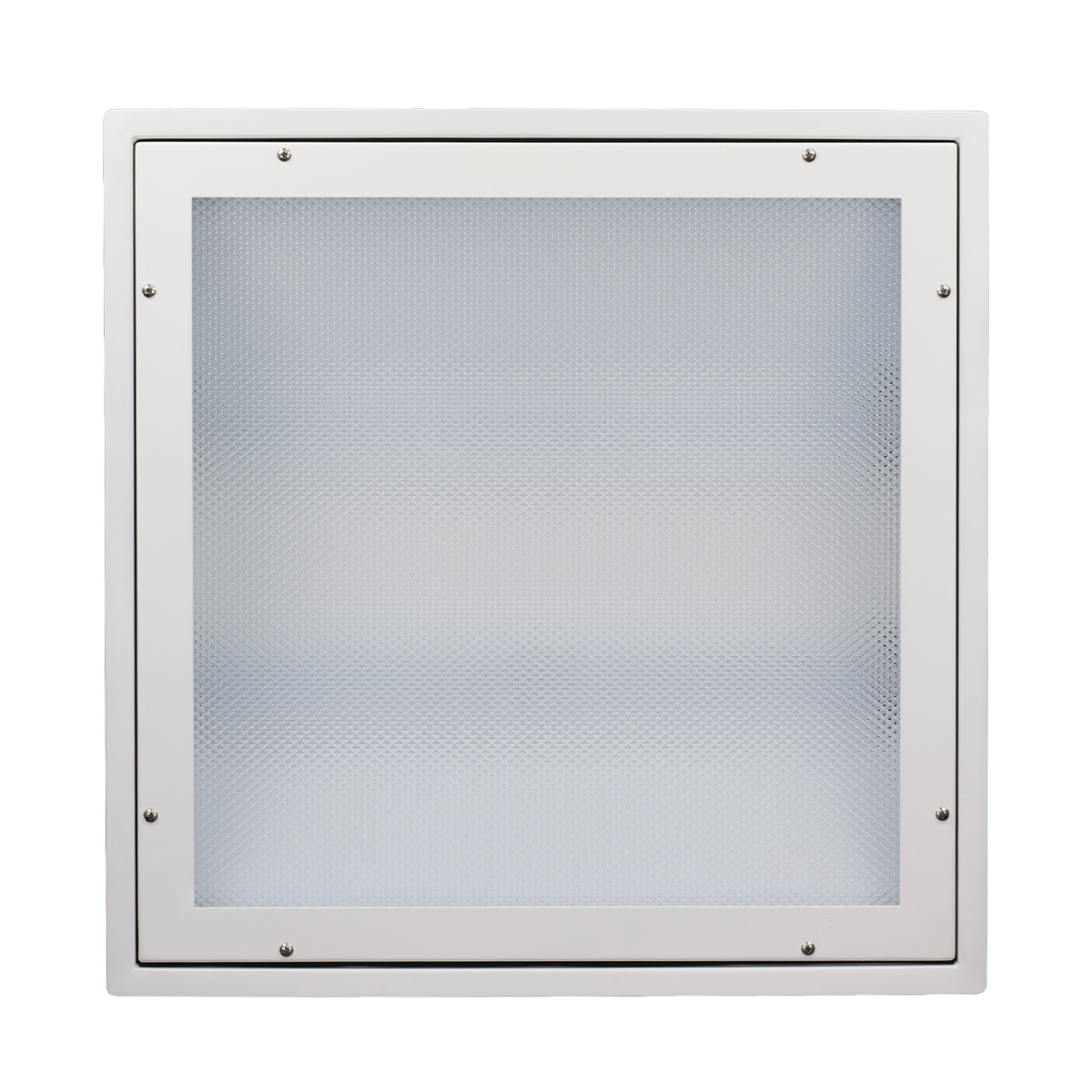

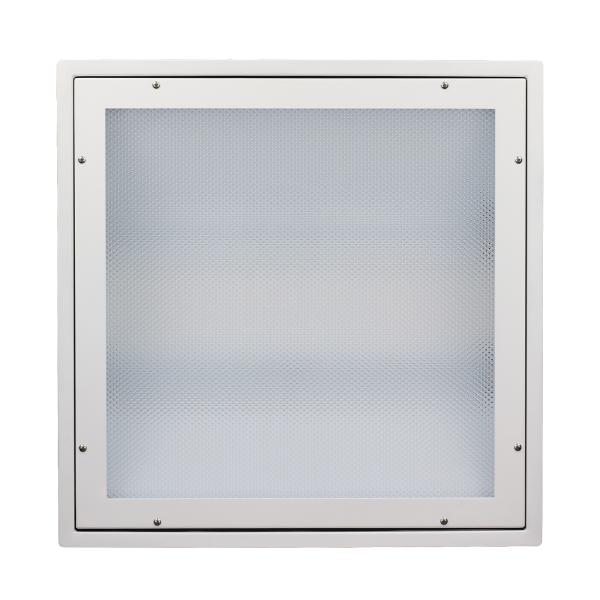

The MAC Series surgical suite LED flat panel is a versatile, recessed luminaire designed for healthcare and operating room environments. It is available in 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with white, green, or white+green LED options and a choice of full symmetric, asymmetric/symmetric, or full asymmetric light distribution. The MAC features static CCT between 2700K-5000K or green, and lumen packages from 4,000 to 25,000 lumens to fit a variety of applications.
Applications
Surgical Suites
MRI Imaging Suites
Construction
Cold rolled steel, stainless steel or aluminum enclosure
Die-formed, TIG and spot welded
Durable TGIC polyester powder coating featuring a 5-stage pretreatment for superior adhesion and corrosion protection
Available in Brushed, Polished or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
Tested to 1,000 hours salt spray with 92% reflectance
Recessed design fits most standard T-bar grid ceilings
Optics/LEDs
Internal reflector with choice of full symmetric, asymmetric/symmetric, or full asymmetric light distribution
Diffused acrylic DR lens for uniform LED diffusion
Multiple lumen packages from 4,000 to 25,000 lumens

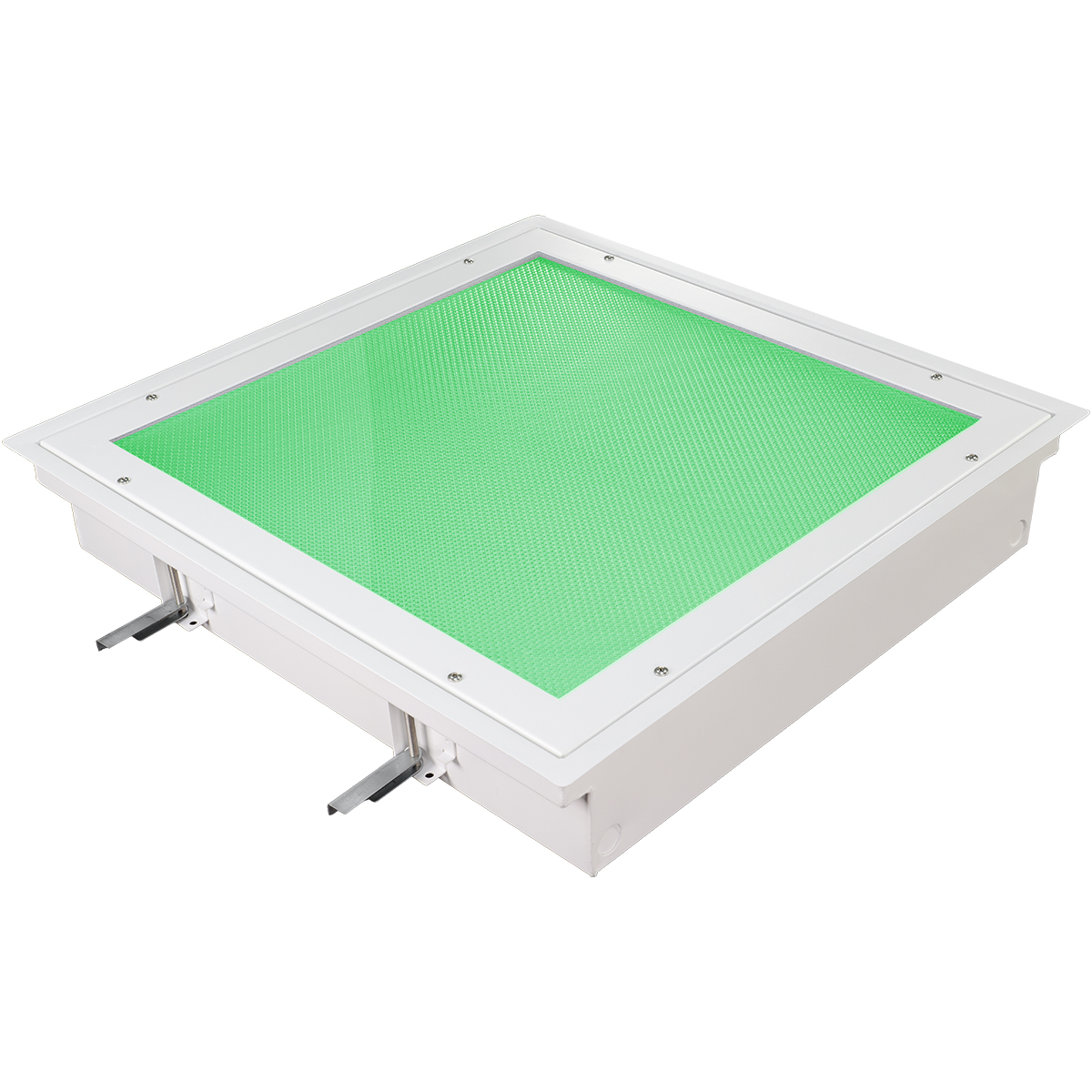

2700K, 3000K, 3500K, 4000K, 5000K CCT or Green
CRI ≥ 80, optional 90 CRI (Option: 90) with White LEDs
Efficacy up to 165 lumens per watt with White LEDs
L70 > 100,000 hours
Installation

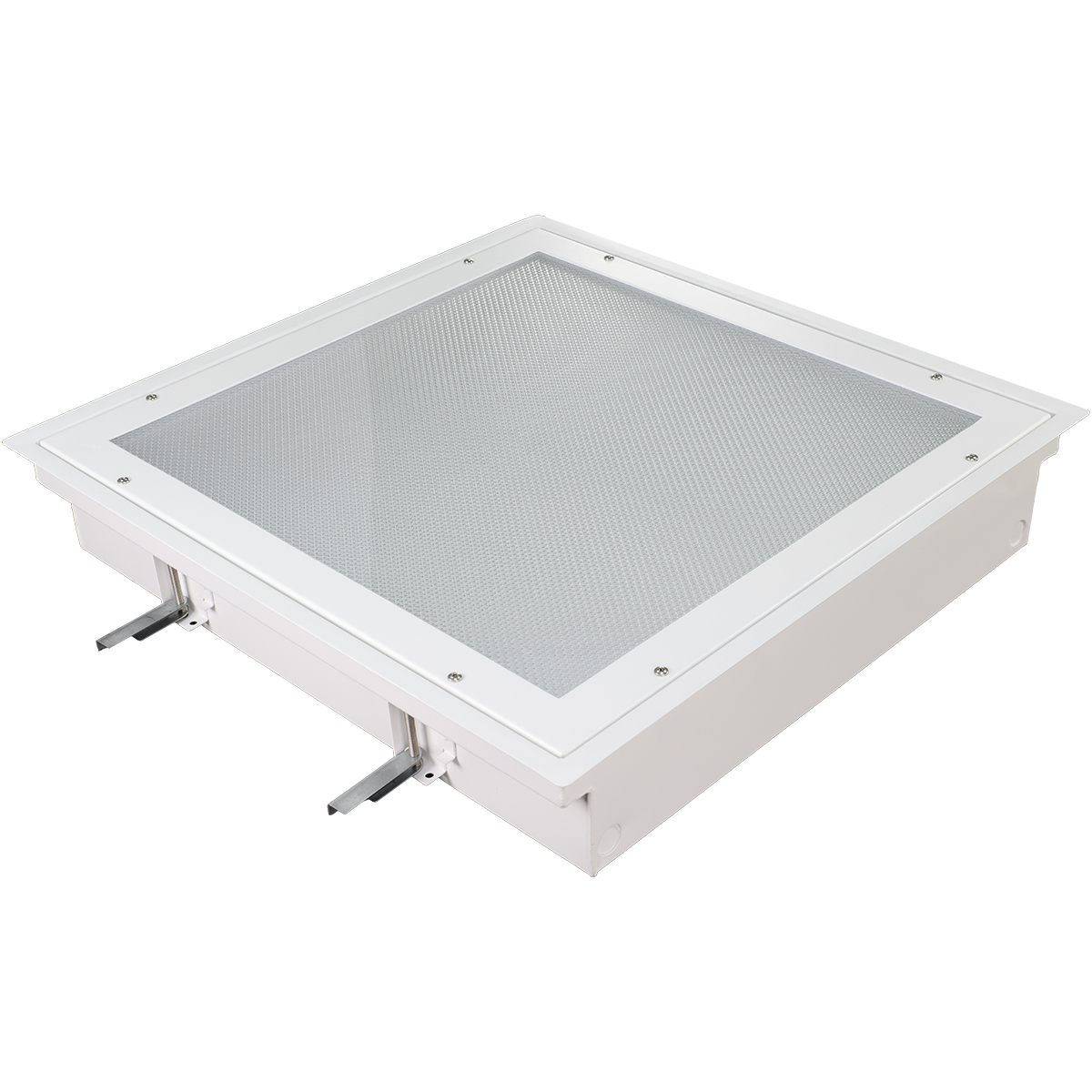

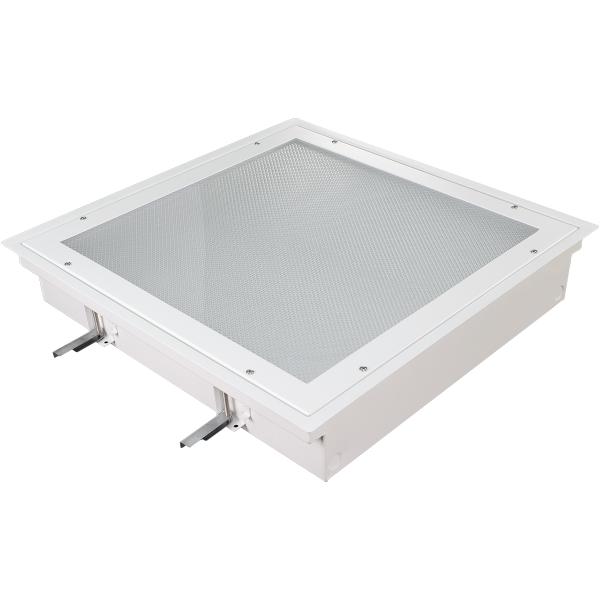

Universal mounting allows for both recessed flanged and recessed grid mounting
Easy installation with adjustable 90° swing arm system standard
Electrical
Universal 120/277VAC, 50/60Hz
0-10V Dimming driver
Power Factor ≥ 0.90
347-480VAC option (Option: HVS)
Options
Integral Battery Backup provides 14-watt emergency battery backup for continued illumination during power loss (Option: BB)
IP65 Rated, sealed construction suitable for wet locations and high pressure wash-down (Option: WL)
High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
Testing & Compliance
cETL Listed
Optional Wet Location (IP65) (Option: WL)
Buy American Act compliant
Build America, Buy America Act compliant
Operating temperatures: -30°C to 50°C (-22°F to 122°F)
Contact us or your sales rep if you need a part number that isn't listed here.
Enter your zip code to find a representative in your area.
New
Surgical Suite LED Recessed Flat Panel
The MAC Series surgical suite LED flat panel is a versatile, recessed luminaire designed for healthcare and operating room environments. It is available in 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with white, green, or white+green LED options and a choice of full symmetric, asymmetric/symmetric, or full asymmetric light distribution. The MAC features static CCT between 2700K-5000K or green, and lumen packages from 4,000 to 25,000 lumens to fit a variety of applications.
Need more information?
We are happy to answer any questions you have about the MAC Series Surgical Suite LED Recessed Flat Panel.
