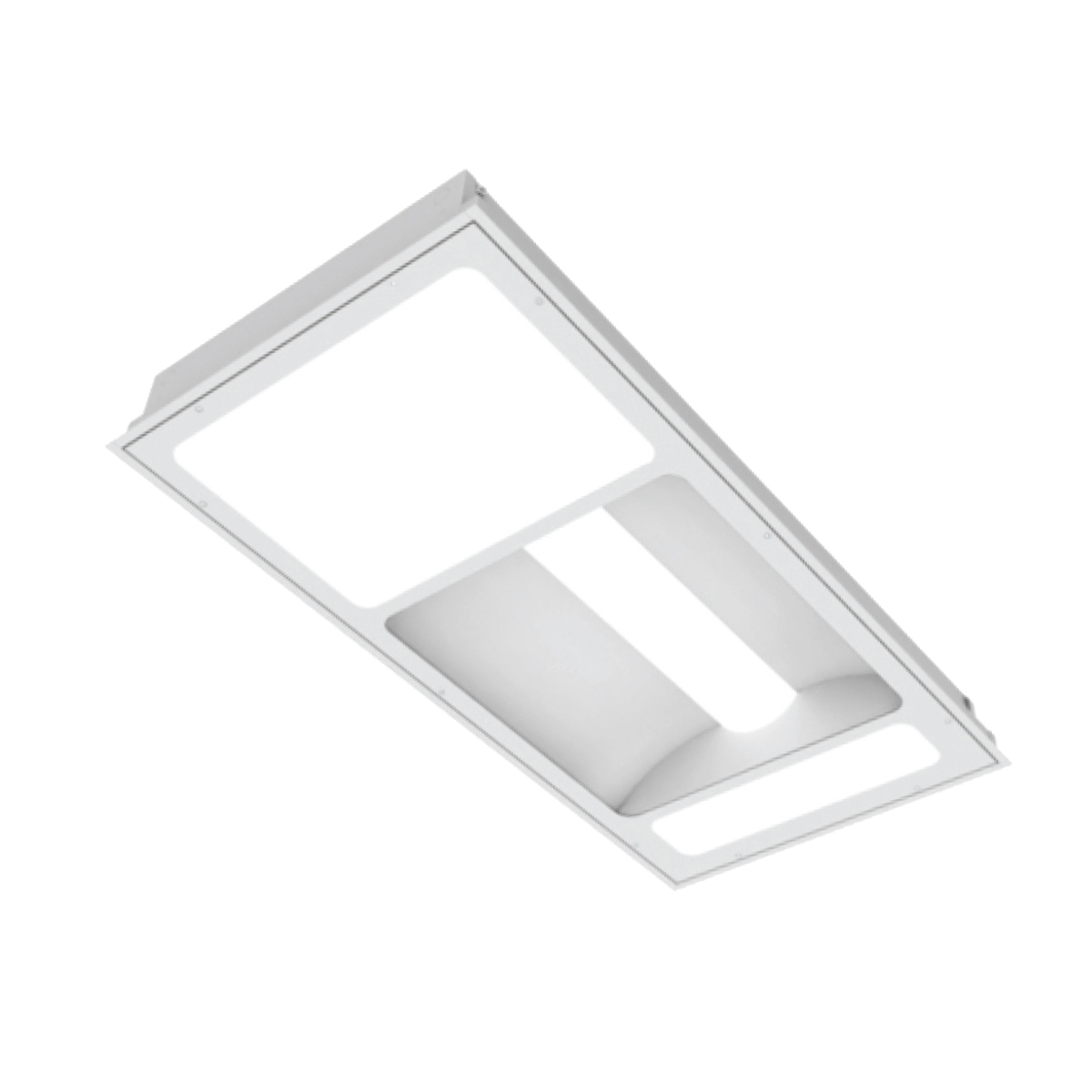

The MAE Series surgical suite LED flat panel is a multi-function recessed luminaire designed for healthcare and operating room environments, providing independent ambient, exam, reading, and optional night light illumination. Available in a 2' x 4' size with static CCT between 2700K-5000K and lumen packages from 1,050 to 13,000 lumens.
Applications
Patient Rooms
Isolation Areas
Construction
Cold rolled steel, stainless steel or aluminum enclosure
Die-formed, TIG and spot welded
Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
Available in Brushed/White, White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
Tamper resistant T25 Torx hardware
Recessed design fits most standard T-bar grid ceilings
Optics/LEDs
Frosted linear prismatic acrylic lens on Ambient compartment, Exam and Reading compartments feature a satin acrylic lens
Optional clear polycarbonate outer lens
Lumen packages from 1,050 to 13,000 lumens
2700K, 3000K, 3500K, 4000K, 5000K CCT
CRI ≥ 82, Optional 90 CRI (Option: 90)
Efficacy up to 165 lumens per watt
L70 > 100,000 hours
Installation
Universal mounting allows for both recessed flanged and recessed grid mounting, swing arm brackets provided
Electrical
Universal 120/277VAC, 50/60Hz
0-10V Dimming driver
Power Factor ≥ 0.90
Options
Integral Battery Backup provides 14 watts of emergency illumination during power loss (Option: BB)
IP65 Rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)
High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
Testing & Compliance
cETL Listed
Optional Wet Location (IP65) (Option: WL)
Buy American Act compliant
Build America, Buy America Act compliant
IC Rated
Operating temperatures: -30°C to 50°C (-22°F to 122°F)
