FXL-20-80 Series

FXL 20-80W Universal Switchable Floodlight

FXL 20-80W Universal Switchable Floodlight


FXL 20-80W Universal Switchable Floodlight

The FXL Series universal switchable floodlights deliver powerful, energy-efficient illumination with enhanced flexibility. Featuring field-switchable color and power, the FXL adapts seamlessly to a wide range of applications with lumen packages from 650 to 12,350 lumens. Precision-designed optics are field-switchable between 55°, 75°, and 90° to allow tailored light distribution for everything from narrow pathways to wide building facades. With both a knuckle and yoke mount included, the FXL simplifies installation across landscaping, walkways, long docks, signage, and a variety of outdoor spaces requiring robust flood lighting. Engineered for longevity, the FXL boasts a rated life of 100,000 hours and efficacies up to 160 lumens per watt. The FXL series is your go-to solution for maximizing performance, energy savings, and eligibility for utility rebates—all in one rugged, high-performing fixture.

UL Certified DLC Premium IP65 Rated for protection from low pressure water jets from any direction switchable_color_power switchable_distribution Warranty



Construction

  • Die-cast aluminum housing in a bronze powder coated finish
  • Clear tempered glass lens
  • Integral heat sink maximizes heat dissipation for longer LED life

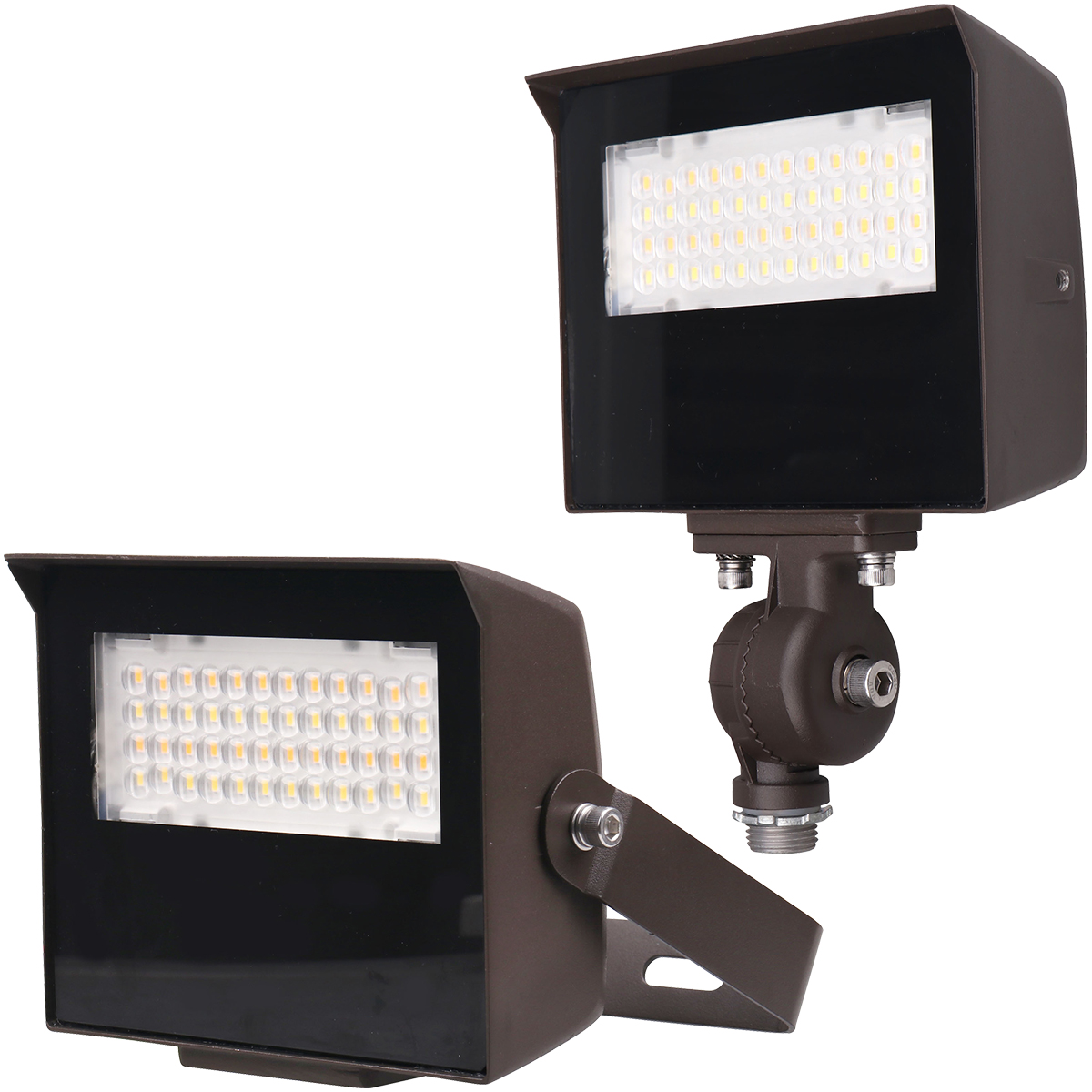

  • Knuckle and yoke mounts included
  • Power level and CCT dip switches located on back of housing
  • 6’ Three conductor whip for building power supply
  • 6’ Two conductor whip for 0-10V dimming wires

Optics/LEDs

  • Switchable distribution between 55°, 75°, and 90°, switch located on top of housing
  • 20W-80W models offer lumen packages from 650 - 12,350 lm
  • Efficacies up to 160 Lm/W
  • Easily field switchable between 3000K, 4000K and 5000K CCT
  • L70 >100,000 hours, L90 >50,000 hours
  • CRI >80

Installation

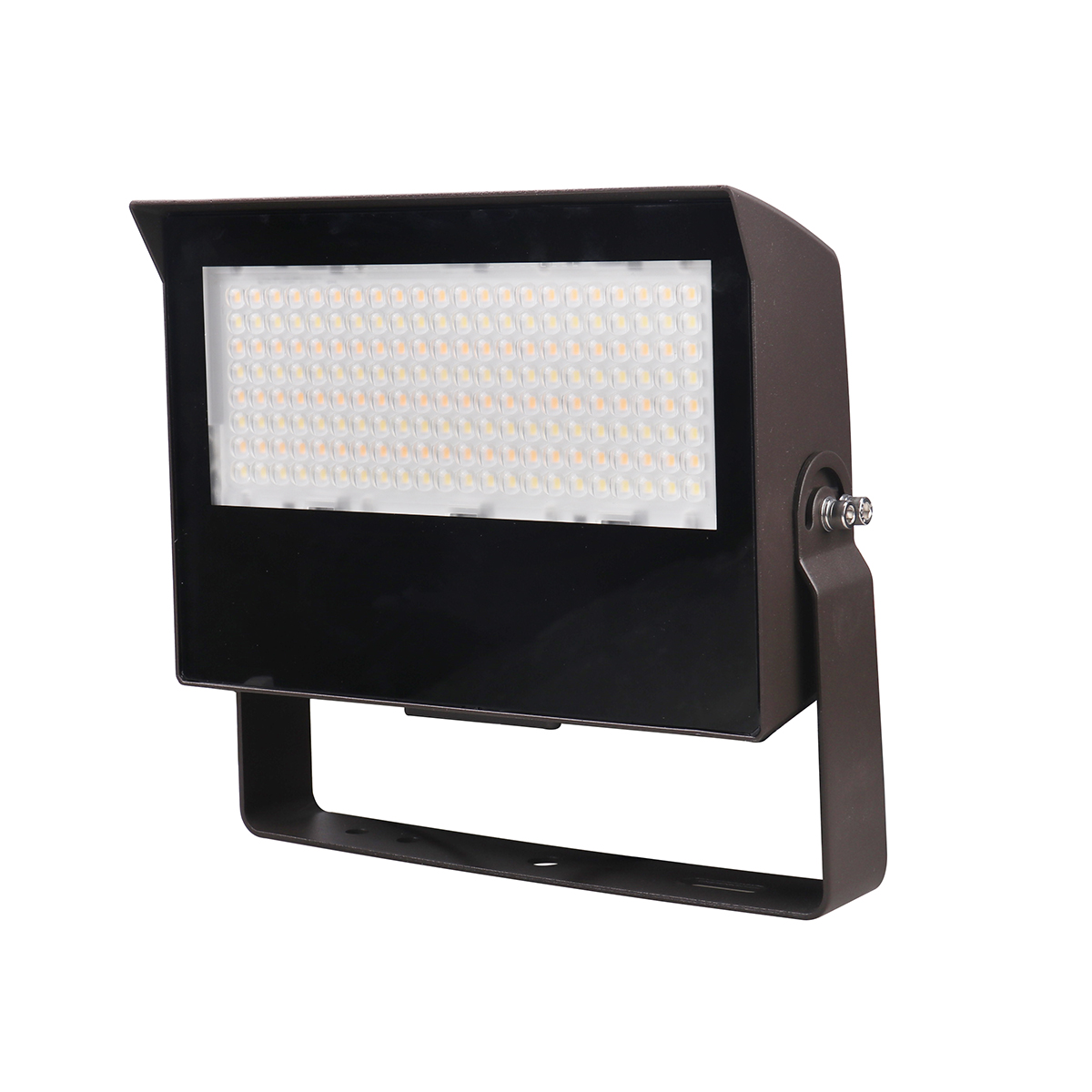

  • Fixture comes standard with knuckle mount and yoke mount
  • Coin plugs on back of housing provide ease of access to dip switches for power and CCT selectability and photocell
  • Switch on top of housing for distribution selection

Electrical

  • 120-277VAC, 50/60Hz
  • 0-10V Dimming driver
  • Power Factor ≥ 0.90
  • Integral on/off photocontrol standard, located on back of housing

Testing & Compliance

  • cULus Listed for Wet Locations
  • IP65 Rated
  • DesignLights Consortium® (DLC) PREMIUM Qualified

Warranty

  • Five Year Warranty (Terms and Conditions Apply)

FXL 20-80W Universal Switchable Floodlight

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

FXL-20-VS-CP-BR
FXL-35-VS-CP-BR
FXL-80-VS-CP-BR

Energy Rebates

Qualified products may be eligible for utility rebates.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite


FXL 20-80W Universal Switchable Floodlight

The FXL Series universal switchable floodlights deliver powerful, energy-efficient illumination with enhanced flexibility. Featuring field-switchable color and power, the FXL adapts seamlessly to a wide range of applications with lumen packages from 650 to 12,350 lumens. Precision-designed optics are field-switchable between 55°, 75°, and 90° to allow tailored light distribution for everything from narrow pathways to wide building facades. With both a knuckle and yoke mount included, the FXL simplifies installation across landscaping, walkways, long docks, signage, and a variety of outdoor spaces requiring robust flood lighting. Engineered for longevity, the FXL boasts a rated life of 100,000 hours and efficacies up to 160 lumens per watt. The FXL series is your go-to solution for maximizing performance, energy savings, and eligibility for utility rebates—all in one rugged, high-performing fixture.

UL Certified DLC Premium IP65 Rated for protection from low pressure water jets from any direction switchable_color_power switchable_distribution Warranty

Need more information?

We are happy to answer any questions you have about the FXL 20-80W Universal Switchable Floodlight.

Spec Sheet Request More Info Rebate Finder

Configure your FXL 20-80W Universal Switchable Floodlight

Series
Wattage
Input Voltage
CCT & Power
Finish

Configure your FXL 20-80W Universal Switchable Floodlight

Series
Wattage
Input Voltage
CCT & Power
Finish

Construction

  • Die-cast aluminum housing in a bronze powder coated finish
  • Clear tempered glass lens
  • Integral heat sink maximizes heat dissipation for longer LED life
  • Knuckle and yoke mounts included
  • Power level and CCT dip switches located on back of housing
  • 6’ Three conductor whip for building power supply
  • 6’ Two conductor whip for 0-10V dimming wires

Optics/LEDs

  • Switchable distribution between 55°, 75°, and 90°, switch located on top of housing
  • 20W-80W models offer lumen packages from 650 - 12,350 lm
  • Efficacies up to 160 Lm/W
  • Easily field switchable between 3000K, 4000K and 5000K CCT
  • L70 >100,000 hours, L90 >50,000 hours
  • CRI >80

Installation

  • Fixture comes standard with knuckle mount and yoke mount
  • Coin plugs on back of housing provide ease of access to dip switches for power and CCT selectability and photocell
  • Switch on top of housing for distribution selection

Electrical

  • 120-277VAC, 50/60Hz
  • 0-10V Dimming driver
  • Power Factor ≥ 0.90
  • Integral on/off photocontrol standard, located on back of housing

Testing & Compliance

  • cULus Listed for Wet Locations
  • IP65 Rated
  • DesignLights Consortium® (DLC) PREMIUM Qualified

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
FXL 20-80W Universal Switchable Floodlight

Contact us or your sales rep if you need a part number that isn't listed here.

FXL-20-VS-CP-BR
FXL-35-VS-CP-BR
FXL-80-VS-CP-BR
