HLE Series

Hazardous Location LED Exit

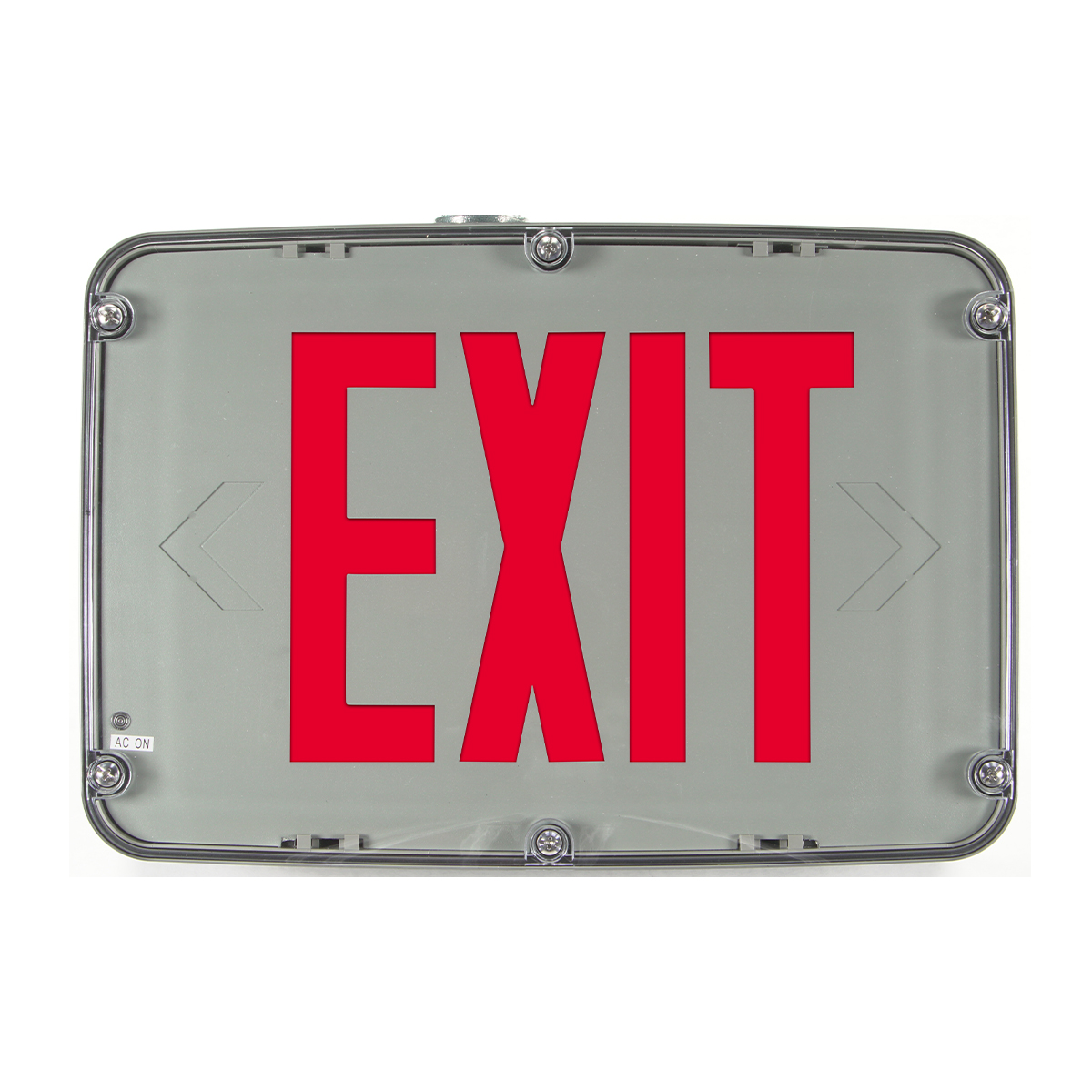

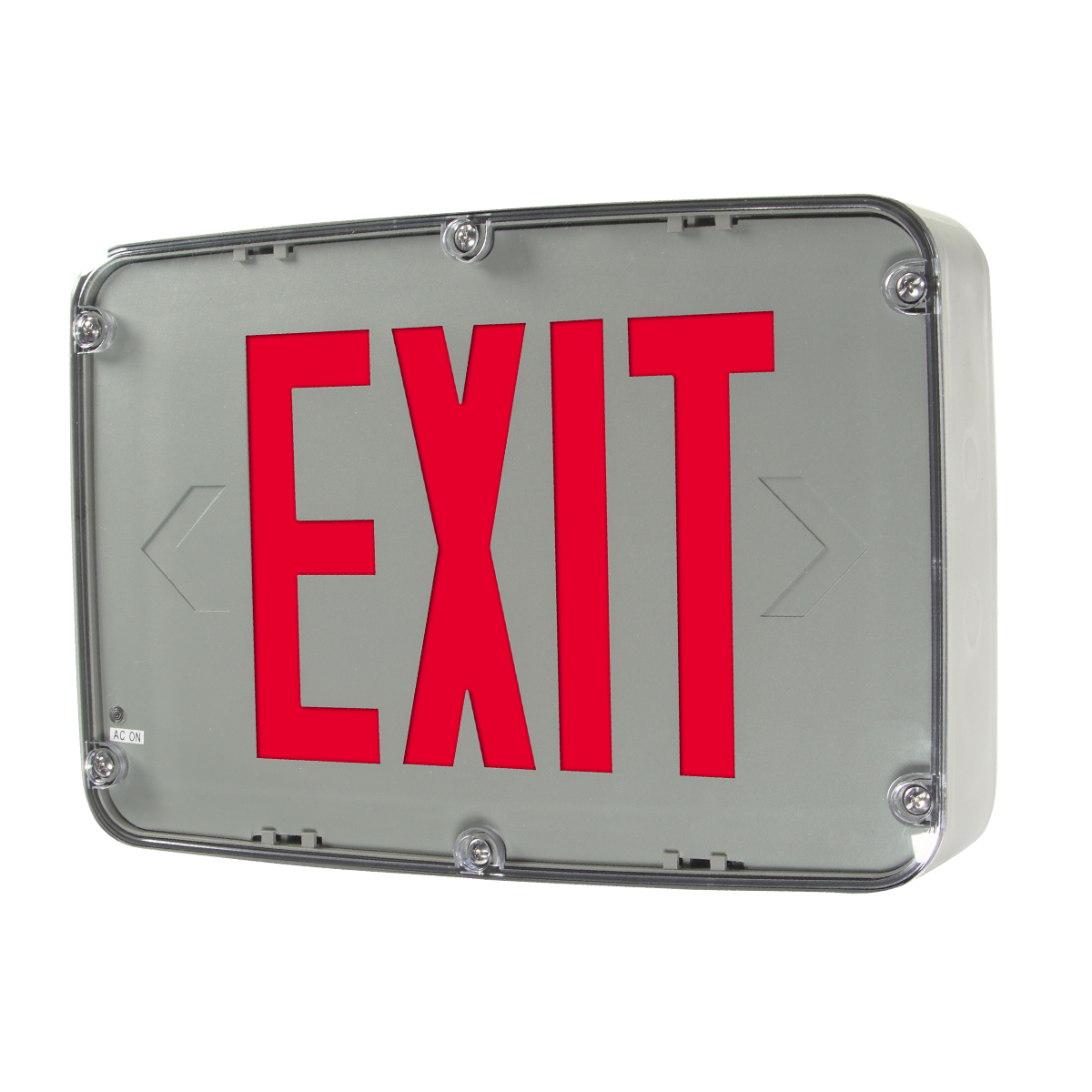

HLE Series Hazardous Location LED Exit

New

New


HLE Series Hazardous Location LED Exit

The HLE Series is a hazardous location exit constructed of impact and corrosion-resistant fiberglass reinforced polycarbonate in a gray finish, designed for environments where flammable gases, vapors, or liquids may be present. The sign is UL 844 and UL 924 Listed and rated for use in: Class I, Division 2, Groups A, B, C & D. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware with optional tamper resistant hardware for extra protection and offers several levels of protection against the elements, including dust, dirt and water making this exit sign ideal for harsh environments.

cULus Listed cold_loc haz_loc cULus Listed for Wet Locations IP66 Rated for protection from high pressure water jets from any direction CEC Compliant Warranty

Features & Benefits

  • Rated for Class 1, Division 2, Groups A,B,C, & D
  • IP66 Rated
  • Easy snap-out chevron directional indicators
  • California Energy Commission (CEC) compliant
  • Long-life, high-intensity, red or green LEDs
  • Housing is fiberglass reinforced polycarbonate construction, Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
  • 120/277VAC Dual primary, 60Hz
  • 4.8V Maintenance-free NiCad battery (WB models only)
  • Operating Temp: -20°C to 50°C (-4°F to 122°F)
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field-selectable directional chevrons
  • Die-cast mounting brackets provided for surface wall mount installation, pre-installed conduit hub for conduit and pendant mount installation

HLE Series Hazardous Location LED Exit

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

HLE-1-G-LB
HLE-1-G-LB-TRH
HLE-1-G-WB
HLE-1-G-WB-G2
HLE-1-G-WB-G2-TRH
HLE-1-G-WB-TRH
HLE-1-R-LB
HLE-1-R-LB-TRH
HLE-1-R-WB
HLE-1-R-WB-G2
HLE-1-R-WB-G2-TRH
HLE-1-R-WB-TRH
HLE-2-G-LB
HLE-2-G-LB-TRH
HLE-2-G-WB
HLE-2-G-WB-G2
HLE-2-G-WB-G2-TRH
HLE-2-G-WB-TRH
HLE-2-R-LB
HLE-2-R-LB-TRH
HLE-2-R-WB
HLE-2-R-WB-G2
HLE-2-R-WB-G2-TRH
HLE-2-R-WB-TRH

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New


Hazardous Location LED Exit

The HLE Series is a hazardous location exit constructed of impact and corrosion-resistant fiberglass reinforced polycarbonate in a gray finish, designed for environments where flammable gases, vapors, or liquids may be present. The sign is UL 844 and UL 924 Listed and rated for use in: Class I, Division 2, Groups A, B, C & D. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware with optional tamper resistant hardware for extra protection and offers several levels of protection against the elements, including dust, dirt and water making this exit sign ideal for harsh environments.

cULus Listed cold_loc haz_loc cULus Listed for Wet Locations IP66 Rated for protection from high pressure water jets from any direction CEC Compliant Warranty

Need more information?

We are happy to answer any questions you have about the HLE Series Hazardous Location LED Exit.

Spec Sheet Request More Info

Configure your HLE Series Hazardous Location LED Exit

Series
Style
Legend Color
Power Source
Options

Configure your HLE Series Hazardous Location LED Exit

Series
Style
Legend Color
Power Source
Options

Features & Benefits

  • Rated for Class 1, Division 2, Groups A,B,C, & D
  • IP66 Rated
  • Easy snap-out chevron directional indicators
  • California Energy Commission (CEC) compliant
  • Long-life, high-intensity, red or green LEDs
  • Housing is fiberglass reinforced polycarbonate construction, Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
  • 120/277VAC Dual primary, 60Hz
  • 4.8V Maintenance-free NiCad battery (WB models only)
  • Operating Temp: -20°C to 50°C (-4°F to 122°F)
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field-selectable directional chevrons
  • Die-cast mounting brackets provided for surface wall mount installation, pre-installed conduit hub for conduit and pendant mount installation

Contact us or your sales rep if you need a part number that isn't listed here.

HLE-1-G-LB
HLE-1-G-LB-TRH
HLE-1-G-WB
HLE-1-G-WB-G2
HLE-1-G-WB-G2-TRH
HLE-1-G-WB-TRH
HLE-1-R-LB
HLE-1-R-LB-TRH
HLE-1-R-WB
HLE-1-R-WB-G2
HLE-1-R-WB-G2-TRH
HLE-1-R-WB-TRH
HLE-2-G-LB
HLE-2-G-LB-TRH
HLE-2-G-WB
HLE-2-G-WB-G2
HLE-2-G-WB-G2-TRH
HLE-2-G-WB-TRH
HLE-2-R-LB
HLE-2-R-LB-TRH
HLE-2-R-WB
HLE-2-R-WB-G2
HLE-2-R-WB-G2-TRH
HLE-2-R-WB-TRH

Enter your zip code to find a representative in your area.
