BAWX Series Adjustable LED Wallpack

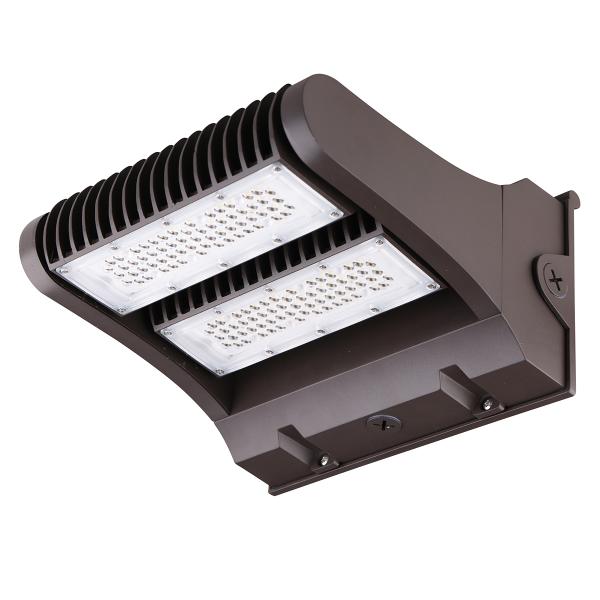

BAWX 1 Bar - preview image BAWX 2 Bar - preview image BAWX 2 Bar View From Below - preview image BAWX Base View - preview image
large view image

The BAWX Series LED wallpack features adjustable light bars that can be oriented in up, down or up/down orientations to create dramatic lighting effects in any desired area. This family of product is offered with selectable CCT (3000K-4000K-5000K) and the double bar configurations also feature power selectability. Available in two sizes to complement any building exterior and to accommodate multiple mounting heights. The BAWX wallpack has efficacies up to 145 LPW and is DesignLights Consortium® PREMIUM qualified to maximize energy savings and utility rebates. This wallpack is ideal for general outdoor lighting, commercial buildings, pathways and sidewalks.

UL Certified cULus Listed for Wet Locations Warranty


Configure your BAWX Series Adjustable LED Wallpack

Part Number

Accessories
This item has available accessories! See the accessories tab below or consult spec sheet for more information.


Need more information?


We are happy to answer any questions you have about the BAWX Series Adjustable LED Wallpack.

Request More Info
  • Precision die-cast aluminum enclosure in a bronze powder-coat finish
  • Adjustable light bars can be aimed in any orientation, providing downlighting, uplighting, forward aiming, backlight aiming (BAWX-1 and BAWX-2), or a combination of up/down/aiming (BAWX-2) with a full 360° rotation
  • Bars can be locked into desired position using the set screw inside the light bar arm
  • Enclosure is supplied with three ½” hubs; one on each side and one on the bottom
  • UV-resistant polycarbonate optical lens
  • Type VS distribution
  • BAWX-1 is offered with one adjustable light bar, 360° rotation, 25W offering up to 3,286 lumens
  • BAWX-2 is offered with two adjustable light bars, 360° rotation, offered in two configurations;
    • 60W – power selectable (25W-40W-60W) offering between 3139 and 8400 lumens
    • 80W – power selectable (40W-60W-80W) offering between 5076 and 11,200 lumens
  • Efficacies up to 145 LPW to maximize energy saving and utility rebates
  • All models are CCT selectable between 3000K, 4000K, 5000K, using switch located in the backbox
  • L70 > 80,000 hours
  • CRI ≥70
  • Once light bar angle has been selected, position can be locked into place by securing set screws on the light bar
  • Housing mounts to backplate for ease of installation
  • Several ½” hubs allow surface mount conduit feed
  • Mounts to standard 3 ½” or 4” square electrical J-box
  • Class 2 power supply, 120-277VAC, 50/60Hz
  • Power supply with high power factor of 90% typical
  • Total harmonic distortion of less than 20%
  • External pencil type photocontrols available (PCE1) for field installation
  • UL Listed for Wet Locations, IP65 rated
  • Operating temperatures: -20°C to 40°C (-4°F to 104°F)
  • Five year warranty (terms and conditions apply)

Accessories

PCU
120/277VAC Photocontrol
Contact us or your sales rep if you need a part number that isn't listed here.

BAWX-1-25-C-BR
BAWX-2-60-CP-BR
BAWX-2-80-CP-BR

Features

  • Precision die-cast aluminum enclosure in a bronze powder-coat finish
  • Adjustable light bars can be aimed in any orientation, providing downlighting, uplighting, forward aiming, backlight aiming (BAWX-1 and BAWX-2), or a combination of up/down/aiming (BAWX-2) with a full 360° rotation
  • Bars can be locked into desired position using the set screw inside the light bar arm
  • Enclosure is supplied with three ½” hubs; one on each side and one on the bottom
  • UV-resistant polycarbonate optical lens
  • Type VS distribution
  • BAWX-1 is offered with one adjustable light bar, 360° rotation, 25W offering up to 3,286 lumens
  • BAWX-2 is offered with two adjustable light bars, 360° rotation, offered in two configurations;
    • 60W – power selectable (25W-40W-60W) offering between 3139 and 8400 lumens
    • 80W – power selectable (40W-60W-80W) offering between 5076 and 11,200 lumens
  • Efficacies up to 145 LPW to maximize energy saving and utility rebates
  • All models are CCT selectable between 3000K, 4000K, 5000K, using switch located in the backbox
  • L70 > 80,000 hours
  • CRI ≥70
  • Once light bar angle has been selected, position can be locked into place by securing set screws on the light bar
  • Housing mounts to backplate for ease of installation
  • Several ½” hubs allow surface mount conduit feed
  • Mounts to standard 3 ½” or 4” square electrical J-box
  • Class 2 power supply, 120-277VAC, 50/60Hz
  • Power supply with high power factor of 90% typical
  • Total harmonic distortion of less than 20%
  • External pencil type photocontrols available (PCE1) for field installation
  • UL Listed for Wet Locations, IP65 rated
  • Operating temperatures: -20°C to 40°C (-4°F to 104°F)
  • Five year warranty (terms and conditions apply)
PCU
120/277VAC Photocontrol

Contact us or your sales rep if you need a part number that isn't listed here.

BAWX-1-25-C-BR
BAWX-2-60-CP-BR
BAWX-2-80-CP-BR
