Inventory Closeout

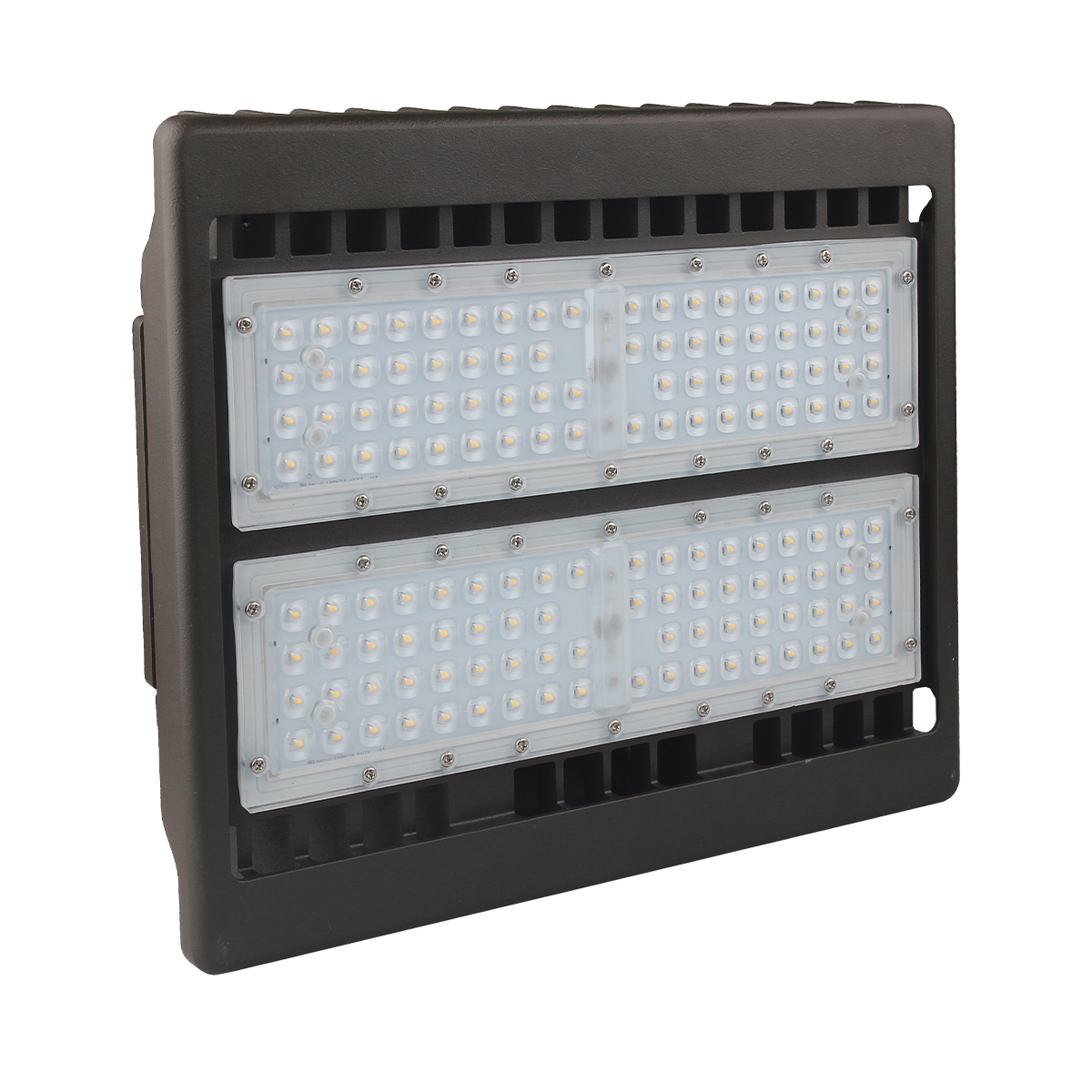

AXL2 100-140W Series LED Flood Luminaire


AXL2 100-140W Series LED Flood Luminaire

Spec Sheet Request More Info

The AXL2 Series of architectural LED flood/area luminaires are designed to illuminate parking areas, pathways, building facades, loading docks and a wide variety of other large, general site lighting applications. A variety of mounting options make the AXL2 (100W-140W) a versatile flood light with efficacies up to 131 LPW to maximize energy savings and utility rebates.

UL Certified DLC Premium Damp Locations IP66 Rated for protection from high pressure water jets from any direction Warranty
AXL2 100-140W Series LED Flood Luminaire is AVAILABLE WHILE SUPPLIES LAST


Features & Benefits

  • Die-cast aluminum housing with stainless steel hardware and powder coat bronze finish for durability
  • Integral heat sink fins maximize heat dissipation
  • Wireway enclosure is sealed with a watertight silicone gasket
  • Multiple mounts available – must be ordered separately
  • UV Stabilized polycarbonate optical lenses in IES Type V (7H x 7V) distribution
  • Efficacies up to 131 LPW maximize energy savings and utility rebates
  • 100-140 Watts replace up to 400W HID for up to 70% energy savings
  • Available in 4000K CCT
  • L70 of 100,000 hours
  • CRI ≥ 80
  • Class 2 power supply, 120 to 277VAC, 50/60Hz
  • 0-10V Dimming driver, 2 leads from fixture: (1) 3 conductor wire for power and (1) 2 wires for dimming
  • Power supply with high power factor of 90% typical
  • Total harmonic distortion <20%
  • Standard 10kVA surge protection
  • Easy installation in new construction or retrofit applications
  • DesignLights Consortium® (DLC) qualified
  • Multiple mounts available: adjustable arm, slip-fitter, trunnion and yoke – ordered separately
  • Additional Accessories: 120-277VAC External pencil photocontrol (PCE1)
AXL2-100-140 Spec Sheet
AXL2-100-140 Install Instructions
AXL2 100-140W Series LED Flood Luminaire

Accessories

PCE1
120/277VAC External Pencil Photocontrol

Slip-fitter Mounts

AXL2-80/280-SF
AXL2, 80-280W, Slip-fitter Mount

Contact us or your sales rep if you need a part number that isn't listed here.

AXL2-100-5-4K-BR
AXL2-140-5-4K-BR

Energy Rebates

Qualified products may be eligible for utility rebates.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite
Inventory Closeout
AXL2 100-140W Series LED Flood Luminaire


AXL2 100-140W LED Flood Luminaire

The AXL2 Series of architectural LED flood/area luminaires are designed to illuminate parking areas, pathways, building facades, loading docks and a wide variety of other large, general site lighting applications. A variety of mounting options make the AXL2 (100W-140W) a versatile flood light with efficacies up to 131 LPW to maximize energy savings and utility rebates.

UL Certified DLC Premium Damp Locations IP66 Rated for protection from high pressure water jets from any direction Warranty
AXL2 100-140W Series LED Flood Luminaire is AVAILABLE WHILE SUPPLIES LAST


Need more information?

We are happy to answer any questions you have about the AXL2 100-140W Series LED Flood Luminaire.

Spec Sheet Request More Info Rebate Finder

Configure your AXL2 100-140W Series LED Flood Luminaire

Model
Wattage/Size
Distribution
CCT
Finish

Configure your AXL2 100-140W Series LED Flood Luminaire

Model
Wattage/Size
Distribution
CCT
Finish

Features & Benefits

  • Die-cast aluminum housing with stainless steel hardware and powder coat bronze finish for durability
  • Integral heat sink fins maximize heat dissipation
  • Wireway enclosure is sealed with a watertight silicone gasket
  • Multiple mounts available – must be ordered separately
  • UV Stabilized polycarbonate optical lenses in IES Type V (7H x 7V) distribution
  • Efficacies up to 131 LPW maximize energy savings and utility rebates
  • 100-140 Watts replace up to 400W HID for up to 70% energy savings
  • Available in 4000K CCT
  • L70 of 100,000 hours
  • CRI ≥ 80
  • Class 2 power supply, 120 to 277VAC, 50/60Hz
  • 0-10V Dimming driver, 2 leads from fixture: (1) 3 conductor wire for power and (1) 2 wires for dimming
  • Power supply with high power factor of 90% typical
  • Total harmonic distortion <20%
  • Standard 10kVA surge protection
  • Easy installation in new construction or retrofit applications
  • DesignLights Consortium® (DLC) qualified
  • Multiple mounts available: adjustable arm, slip-fitter, trunnion and yoke – ordered separately
  • Additional Accessories: 120-277VAC External pencil photocontrol (PCE1)

Accessories

PCE1
120/277VAC External Pencil Photocontrol

Slip-fitter Mounts

AXL2-80/280-SF
AXL2, 80-280W, Slip-fitter Mount


Contact us or your sales rep if you need a part number that isn't listed here.

AXL2-100-5-4K-BR
AXL2-140-5-4K-BR
