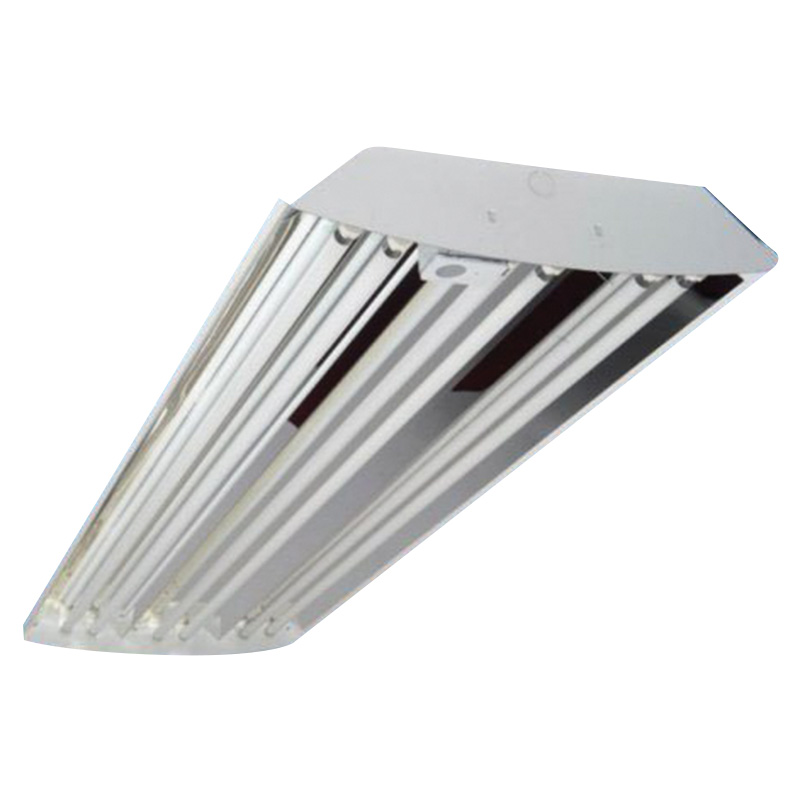

TL518 Linear Fluorescent High Bay Lighting

Closeout

The TL518 Series linear, fluorescent highbay is a high-efficiency T5HO or T8 fixture engineered for premium performance in medium and high ceiling applications. It is ideally suited for warehouses, manufacturing plants, sports facilities and retail spaces. The TL518’s precision-formed, highly polished mirror reflector achieves maximum light output when utilized for ceilings from 15' to 40'.

STEP 1 - Configure your TL518 Linear Fluorescent High Bay Lighting

Series
Number of Lamps & Type
Ballast

STEP 2 - Select Options






Select options above to configure your item.

For options and configurations that don't generate a SKU, contact us or your sales rep.

Spec Sheet Contact Us
  • Housing is 22 gauge pre-painted steel with air vents in the back of the housing that help keep the ballasts cool
  • Aluminum reflector is 91% reflective and computer designed to maximize photometric performance
  • Reflector and lampholder assembly is hinged to the fixture and easily allows access for ballast maintenance
  • Ballasts are thermally protected, sound rated, Class P rated and UL/cUL Listed for Damp Locations
  • Uses 32W T8 or 54W T5HO lamps, providing long-life and excellent color quality (lamps are not included)
  • Optional 1400 lumen emergency ballast available
  • Wiring access plate in the back makes wiring fast and hassle-free
  • Can be mounted using the TL518-SMK Accessory which includes (2) "S" hooks and (2) 10' jack chains or cable mounted using the CTY10 10' cable with (2) integral Y-toggles
Contact us or your sales rep if you need a SKU that isn't listed here.

TL518-432-MV
TL518-454-MV
TL518-454-MV-BB
TL518-454-MV-LC6
TL518-454-MV-OSS
TL518-454-MV-OSS-BB
TL518-632-MV
TL518-632-MV-LC6
TL518-632-MV-OSS
TL518-632-MV-OSS-BB
TL518-654-MV
TL518-654-MV-BB
TL518-654-MV-OSS
