LCM1 Series LED Channel Letter Module, Wet Location, Single Color

 - preview image  - preview image
large view image

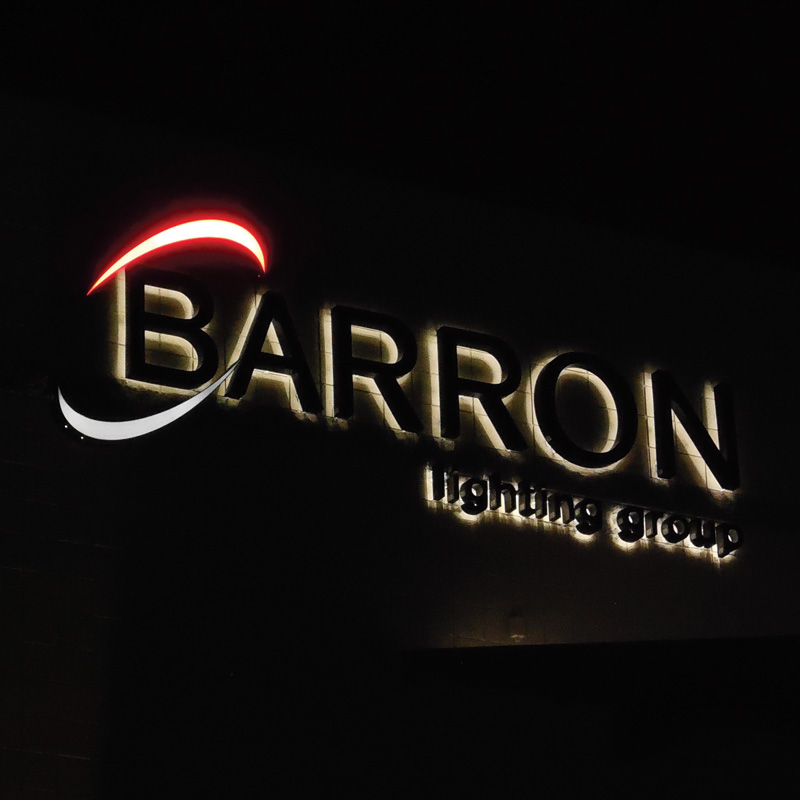

The LCM Series LED channel modules are powered by 5630 SMD LEDs encapsulated in a thermoplastic molded housing. These single LED modules offer high-performance yet low operating costs for commercial signage applications. They can be easily manipulated, mounted on any surface and require no maintenance. LCMs are ideal for channel letter lighting, back and cove lighting, halo effects and accent lighting.

IP65 Rated for protection from low pressure water jets from any direction Warranty


Configure your LCM1 Series LED Channel Letter Module, Wet Location, Single Color

Series
Color
# of Modules

Accessories
This item has available accessories! See the accessories tab below or consult spec sheet for more information.

  • LED Solid-state lighting module
  • Available in warm white, pure white, cold white and red
  • Long life, minimal power consumption of 0.72W per module
  • Indoor and outdoor rated
  • Reliable in extreme temperatures
  • No broken glass or toxic materials compared to neon
  • Shatterproof and vibration resistant
  • Printed markings allow for individual modules to be cut (42 LED modules per string)
  • Easy installation using 3M adhesive tape included on the back of each module as well as pre-drilled screw holes (screws not included)
  • Uniform illumination
  • High-luminous intensity
  • 3 year/13,000 hours warranty
LCM1 Series LED Channel Letter Module, Wet Location, Single Color

LCM1 Series LED Channel Letter Module, Wet Location, Single Color

IES Files


Dimming Driver (Field Installed)

XFMR-277-DIM-12-120
120W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-180
180W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-240
240W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-300
300W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-DIM-12-120
120W; 120VAC Input; 12V Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-180
180W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-20
20W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-240
240W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-40
40W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-60
60W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-96
96W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America

Non-Dimming Driver (Field Installed)

XFMR-12-150
150W; 120-277VAC; 12VDC; UL, Outdoor Non-dimming Driver
XFMR-12-20
20W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-12-35
35W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-12-60
60W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-277-12-150
150W; 120-277VAC Input; 12VDC Output; UL, Outdoor Non-dimming Driver
XFMR-277-12-20
20W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-30
30W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-45
45W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-60
60W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver

Sample Driver (Factory Sample Only)

BLP-15W-12V-SAM
15W; 12V Sample Driver; for Plug and Play Only
BLP-60W-12V-SAM
60W; 12V Sample Driver; for Plug and Play Only
Contact us or your sales rep if you need a part number that isn't listed here.

LCM1-WP
LCM1-WW

Features

  • LED Solid-state lighting module
  • Available in warm white, pure white, cold white and red
  • Long life, minimal power consumption of 0.72W per module
  • Indoor and outdoor rated
  • Reliable in extreme temperatures
  • No broken glass or toxic materials compared to neon
  • Shatterproof and vibration resistant
  • Printed markings allow for individual modules to be cut (42 LED modules per string)
  • Easy installation using 3M adhesive tape included on the back of each module as well as pre-drilled screw holes (screws not included)
  • Uniform illumination
  • High-luminous intensity
  • 3 year/13,000 hours warranty

Dimming Driver (Field Installed)

XFMR-277-DIM-12-120
120W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-180
180W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-240
240W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-277-DIM-12-300
300W; 277VAC Input; 12VDC Output; Dimming Driver; Dimming is on the 277V Side; UL Listed; Made in America
XFMR-DIM-12-120
120W; 120VAC Input; 12V Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-180
180W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-20
20W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-240
240W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-40
40W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-60
60W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America
XFMR-DIM-12-96
96W; 120VAC Input; 12VDC Output; Magnetic Dimming Driver; UL Listed; Made in America

Non-Dimming Driver (Field Installed)

XFMR-12-150
150W; 120-277VAC; 12VDC; UL, Outdoor Non-dimming Driver
XFMR-12-20
20W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-12-35
35W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-12-60
60W; 120VAC; 12VDC; UL Class 2; Outdoor Non-dimming Driver
XFMR-277-12-150
150W; 120-277VAC Input; 12VDC Output; UL, Outdoor Non-dimming Driver
XFMR-277-12-20
20W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-30
30W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-45
45W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver
XFMR-277-12-60
60W; 120-277VAC Input; 12VDC Output; UL Class 2, Outdoor Non-dimming Driver

Sample Driver (Factory Sample Only)

BLP-15W-12V-SAM
15W; 12V Sample Driver; for Plug and Play Only
BLP-60W-12V-SAM
60W; 12V Sample Driver; for Plug and Play Only

Contact us or your sales rep if you need a part number that isn't listed here.

LCM1-WP
LCM1-WW
