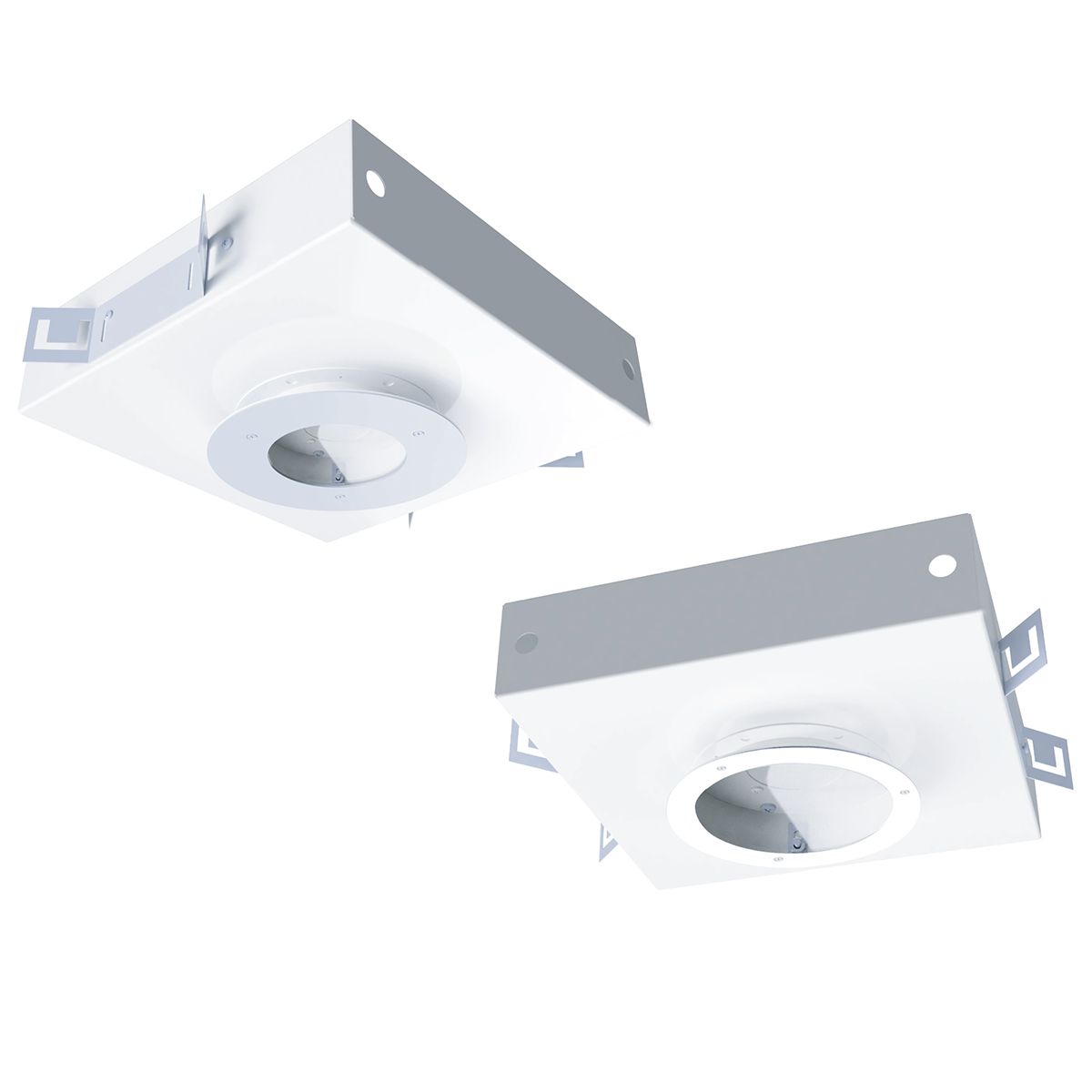

MAL Series MRI Suite LED Recessed Downlight


MAL Series MRI Suite LED Recessed Downlight

Spec Sheet Request More Info

The MAL Series MRI Suite LED Recessed Downlight is constructed of nonferrous materials and features remote mounted drivers for use in MRI imaging rooms. Offered in both 5" and 8" apertures, it offers static CCTs between 3000K-5000K and lumen packages from 1,000 to 4,300 lumens.

ETL Compliant cULus Listed for Wet Locations IP65 Rated for protection from low pressure water jets from any direction Buy American Act Build America Buy America Warranty

Related Product:

MRD Series Remote Driver Box


Construction

  • 14ga Aluminum enclosure with non-ferrous material within enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface

Optics/LEDs

  • Diffused lens for uniform LED diffusion, outer clear tempered glass lens
  • Lumen packages from 1,000 to 4,300 lumens
  • 3000K, 3500K, 4000K or 5000K CCT
  • CRI ≥ 80, optional 90 CRI (Option: 90)
  • Efficacy up to 129 lumens per watt
  • L70 > 100,000 hours

Electrical

  • Remote mounted power supply available with up to 9 drivers (Sold Separately: MRD)

Options

  • High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
  • IP65-rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)

Testing & Compliance

  • cETL Listed
  • Optional Wet Location (Option: WL)
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -30°C to 50°C (-22°F to 122°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
MAL Specification
MRI Sell Sheet
MAL Series MRI Suite LED Recessed Downlight

MAL Series MRI Suite LED Recessed Downlight

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New
MAL Series MRI Suite LED Recessed Downlight


MRI Suite LED Recessed Downlight

The MAL Series MRI Suite LED Recessed Downlight is constructed of nonferrous materials and features remote mounted drivers for use in MRI imaging rooms. Offered in both 5" and 8" apertures, it offers static CCTs between 3000K-5000K and lumen packages from 1,000 to 4,300 lumens.

ETL Compliant cULus Listed for Wet Locations IP65 Rated for protection from low pressure water jets from any direction Buy American Act Build America Buy America Warranty

Related Product:

MRD Series Remote Driver Box


Need more information?

We are happy to answer any questions you have about the MAL Series MRI Suite LED Recessed Downlight.

Spec Sheet Request More Info

Configure your MAL Series MRI Suite LED Recessed Downlight

Model
Size
Wattage
Outer Lens
CCT
Housing Finish
Trim Finish
Options

Configure your MAL Series MRI Suite LED Recessed Downlight

Model
Size
Wattage
Outer Lens
CCT
Housing Finish
Trim Finish
Options

Construction

  • 14ga Aluminum enclosure with non-ferrous material within enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface

Optics/LEDs

  • Diffused lens for uniform LED diffusion, outer clear tempered glass lens
  • Lumen packages from 1,000 to 4,300 lumens
  • 3000K, 3500K, 4000K or 5000K CCT
  • CRI ≥ 80, optional 90 CRI (Option: 90)
  • Efficacy up to 129 lumens per watt
  • L70 > 100,000 hours

Electrical

  • Remote mounted power supply available with up to 9 drivers (Sold Separately: MRD)

Options

  • High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
  • IP65-rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)

Testing & Compliance

  • cETL Listed
  • Optional Wet Location (Option: WL)
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -30°C to 50°C (-22°F to 122°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
MAL Series MRI Suite LED Recessed Downlight
MAL Specification
MRI Sell Sheet
