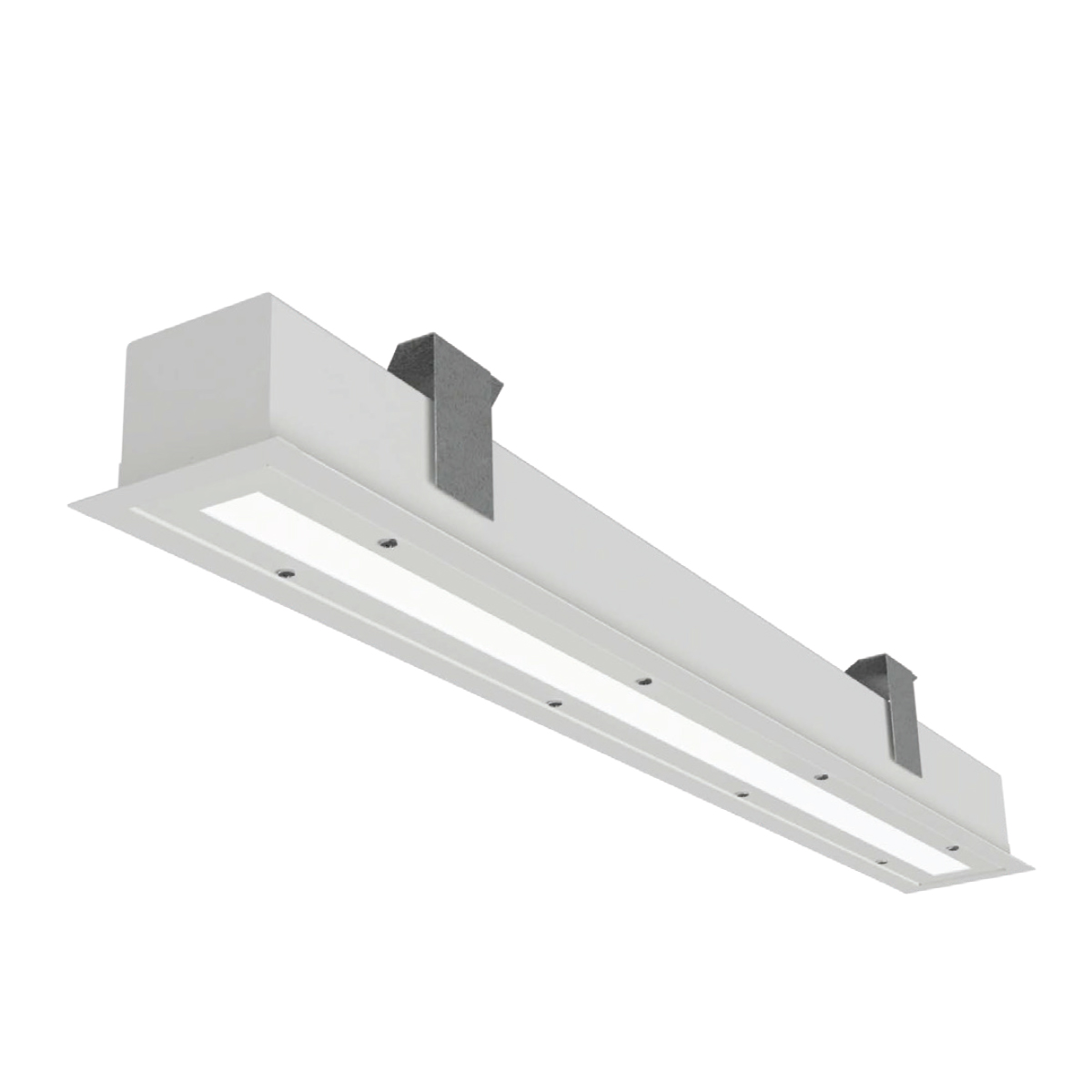

The MAB Series patient room LED narrow recessed panel is a durable, high-performance luminaire designed for healthcare environments. It offers ambient, exam, and reading illumination in 4, 6, and 8 foot lengths with static CCT between 2700K-5000K and lumen packages from 2,000 to 11,200 lumens. Constructed from marine-grade 0.63-inch aluminum with a matte white or antimicrobial white finish, tamper-resistant T25 Torx hardware, the MAB features multiple lens diffuser options for optimal light distribution and impact resistance.
Contact us or your sales rep if you need a part number that isn't listed here.
Enter your zip code to find a representative in your area.
Patient Room LED Narrow Recessed Panel
The MAB Series patient room LED narrow recessed panel is a durable, high-performance luminaire designed for healthcare environments. It offers ambient, exam, and reading illumination in 4, 6, and 8 foot lengths with static CCT between 2700K-5000K and lumen packages from 2,000 to 11,200 lumens. Constructed from marine-grade 0.63-inch aluminum with a matte white or antimicrobial white finish, tamper-resistant T25 Torx hardware, the MAB features multiple lens diffuser options for optimal light distribution and impact resistance.
Need more information?
We are happy to answer any questions you have about the MAB Series Patient Room LED Narrow Recessed Panel.
Configure your MAB Series Patient Room LED Narrow Recessed Panel
Model
Length
Ambient Wattage
Ambient CCT
Exam Wattage
Exam CCT
Reading Wattage
Reading CCT
Orientation
Mounting
Lens
Finish
Voltage
Driver
Options
Features
Applications
Patient Rooms
Behavioral Health
Construction
Marine Grade 0.63" aluminum enclosure
Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
Sold as left/right pair. One fixture is the Master (contains all drivers, controls, and mains power input); the second is the Companion (LED boards only) connected via a simple plug-in link. Single stand-alone version also available
Tamper resistant T25 Torx hardware
Optics/LEDs
Multiple lens diffuser options available
Lumen packages from 2,000 to 11,200 lumens
2700K, 3000K, 3500K, 4000K, 5000K CCT
CRI ≥ 82, Optional 90 CRI (Option: 90)
Efficacy up to 165 lumens per watt
L70 > 100,000 hours
Installation
Suitable for sheetrock/drywall and T-grid applications
Ligature-resistant when installed in sheetrock/drywall and when using pickproof sealant caulk (supplied by others)
Electrical
Universal 120/277VAC, 50/60Hz
0-10V Dimming driver
Power Factor ≥ 0.90
Options
Integral Battery Backup provides 8 watts of emergency illumination during power loss (Option: BB)
High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
IP65 Rated sealed construction, suitable for wet locations and high-pressure wash-down (Option: WL)
Testing & Compliance
cETL Listed
Optional Wet Location (IP65) (Option: WL)
Buy American Act compliant
Build America, Buy America Act compliant
IC Rated
Operating temperatures: -20°C to 50°C (-5°F to 122°F)
Warranty
Five Year Warranty (Terms and Conditions Apply)
Configure your MAB Series Patient Room LED Narrow Recessed Panel
Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
Sold as left/right pair. One fixture is the Master (contains all drivers, controls, and mains power input); the second is the Companion (LED boards only) connected via a simple plug-in link. Single stand-alone version also available
Tamper resistant T25 Torx hardware
Optics/LEDs
Multiple lens diffuser options available
Lumen packages from 2,000 to 11,200 lumens
2700K, 3000K, 3500K, 4000K, 5000K CCT
CRI ≥ 82, Optional 90 CRI (Option: 90)
Efficacy up to 165 lumens per watt
L70 > 100,000 hours
Installation
Suitable for sheetrock/drywall and T-grid applications
Ligature-resistant when installed in sheetrock/drywall and when using pickproof sealant caulk (supplied by others)
Electrical
Universal 120/277VAC, 50/60Hz
0-10V Dimming driver
Power Factor ≥ 0.90
Options
Integral Battery Backup provides 8 watts of emergency illumination during power loss (Option: BB)
High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
IP65 Rated sealed construction, suitable for wet locations and high-pressure wash-down (Option: WL)
Testing & Compliance
cETL Listed
Optional Wet Location (IP65) (Option: WL)
Buy American Act compliant
Build America, Buy America Act compliant
IC Rated
Operating temperatures: -20°C to 50°C (-5°F to 122°F)
