Construction

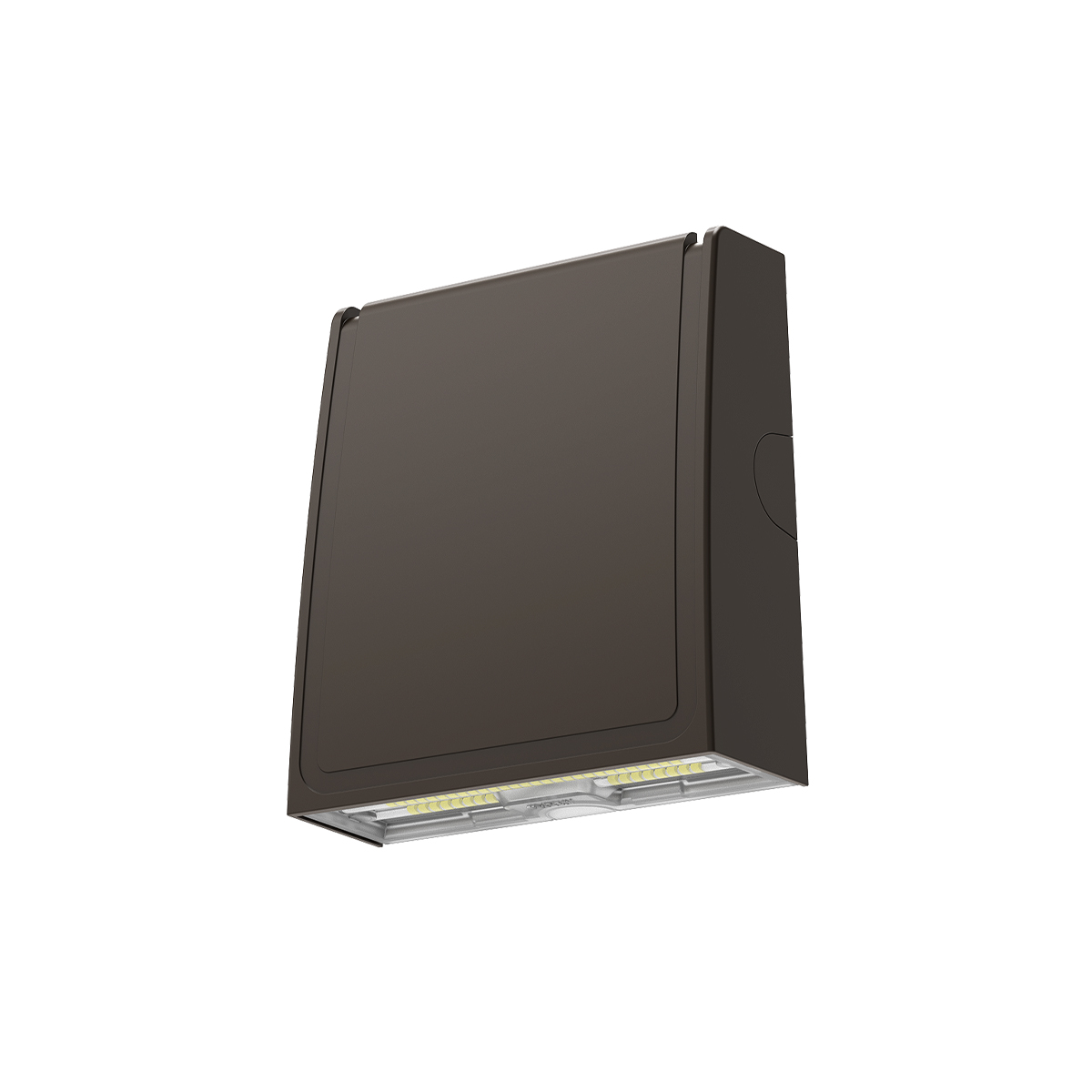

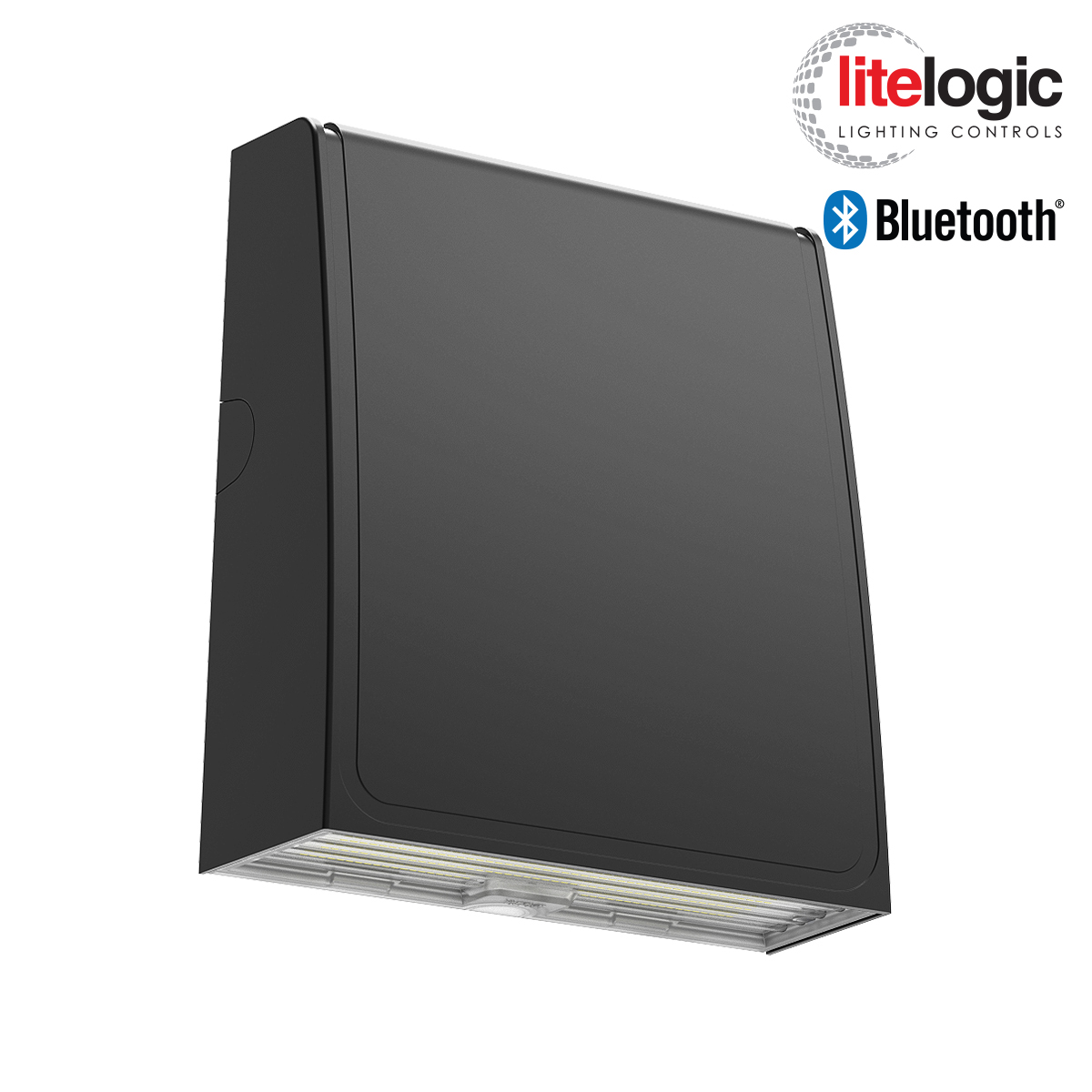

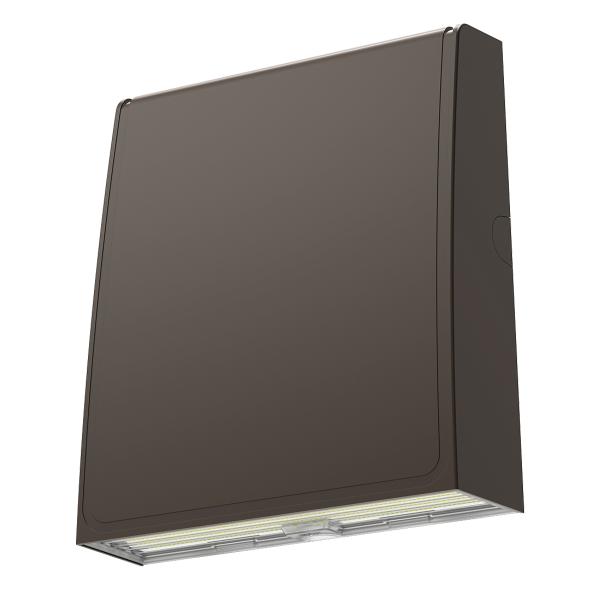

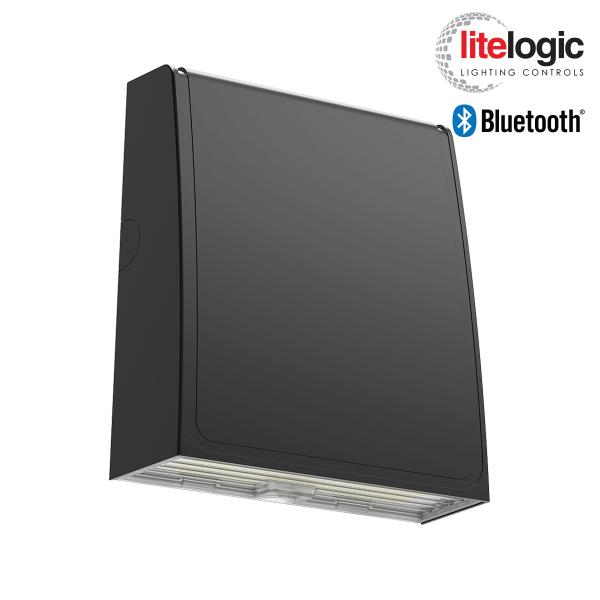

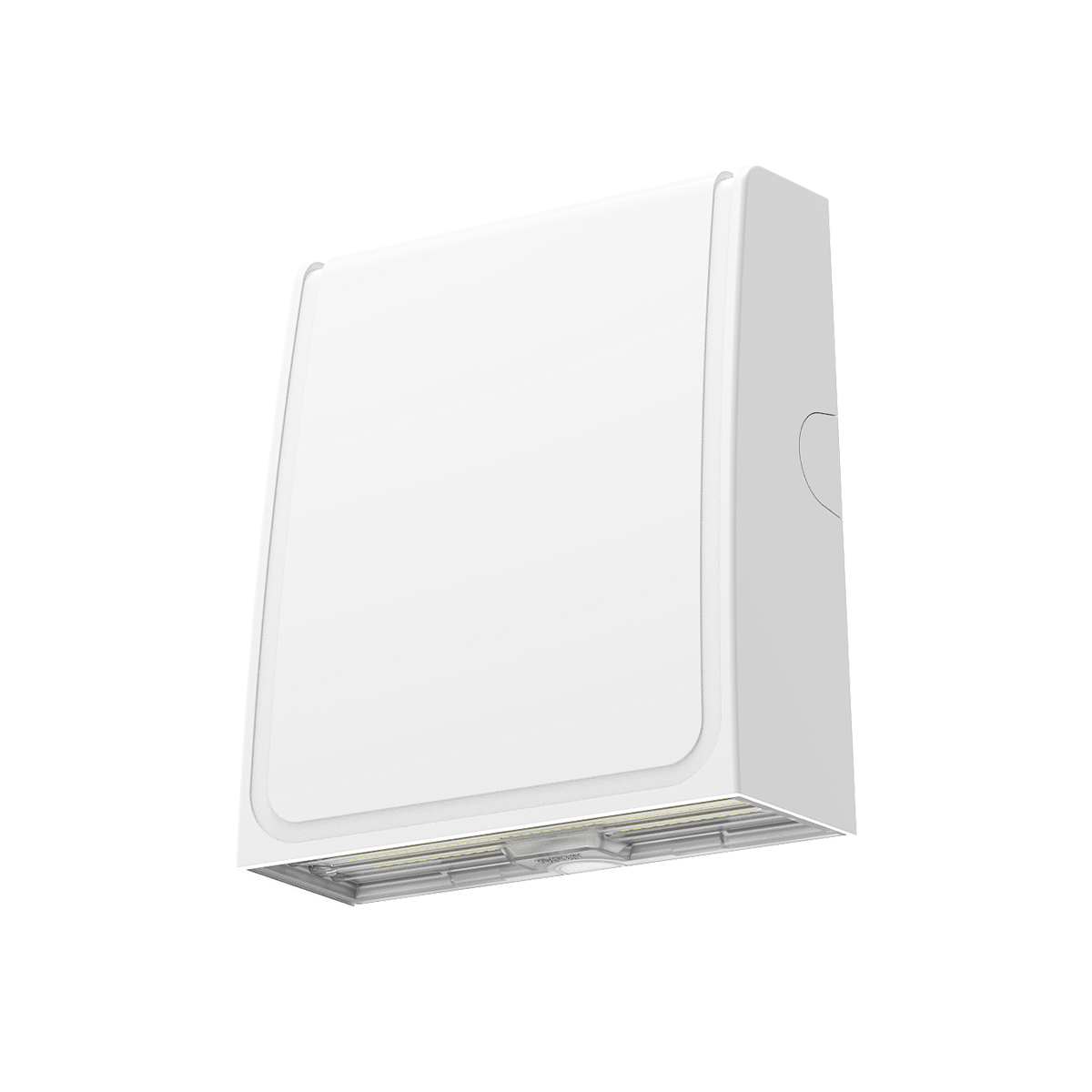

• Sleek die-cast aluminum housing with stainless steel hardware and powder coated black, bronze, gray aluminum or white finish
• UV-stabilized polycarbonate optical lens; Type III lens comes installed, Type II and Type IV lenses are included in the box
• Integral heat sink for maximized heat dissipation
• Backbox ensures simple installation and includes four ½” hubs
• Built in 3.5mm AUX receptacle for easy plug and play sensor installation

Optics/LEDs

• Zero uplight design to minimize light pollution
• Efficacies up to 172 LPW
• Type II, Type III and Type IV distributions for optimal light distribution

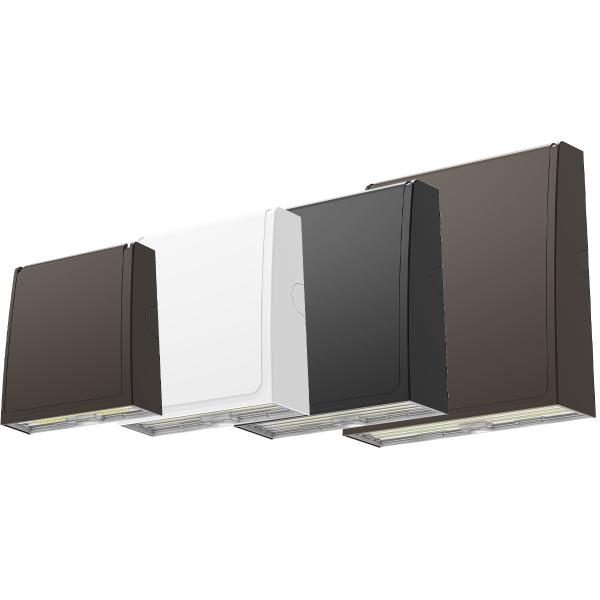

• Available in 4 housing sizes and lumen packages
• WLZ1-CP: Switchable between 10W-15W-18W (1,340-2,500 lumens)
• WLZ2-CP: Switchable between 25W-35W-45W (3,460-6,870 lumens)
• WLZ3-CP: Switchable between 50W-65W-80W (7,720-12,970 lumens)
• WLZ4-CP: Switchable between 90W-110W-130W (12,960-19,120 lumens)
• Color switchable between 3000K, 4000K and 5000K CCT. Switch is located inside backbox
• L70 of 50,000 hours at 40°C (104 °F)
• CRI ≥80, 90 CRI option (90) available

Installation

• Housing hinges to backbox and is secured with set screws
• Hinged back box is complete with four ½” hubs, integral AUX sensor receptacle, and internal bubble level for easy installation
• Mounts to a standard 3½” or 4” square electrical J-box
• Tool free lens installation to easily change distribution
• Suitable for downlight installation only

Electrical

• 120-277VAC, 50/60Hz
• 277-480VAC Dedicated driver option for WLZ2-CP, WLZ3-CP and WLZ4-CP
• 0-10V Dimming driver

Options

• 90CRI (90)
• Battery Backup (BB): Integral battery backup provides 420 lumens (WLZ1-CP) or 1500 lumens (WLZ2-CP, WLZ3-CP, WLZ4-CP) and 90 minutes of runtime for path of egress. Rated for temperatures of 5°C to 50°C (41°F to 122°F).
• Factory installed dual driver options (DD) for WLZ3-CP and WLZ4-CP
• Factory installed 120/277VAC button type photocontrol option (PC)
• Factory installed 10kVA surge protection options (SP or SPH)
• Cold Location Integral Battery Backup (CL) provides 1500 lumens (WLZ2-CP, WLZ3-CP, WLZ4-CP) and 90 minutes of runtime for path of egress in Cold Locations down to -20°C (-4°F). Not available on WLZ1-CP.

Accessories

• Factory installed module to lock CCT to 3000K for Dark Sky IDA compliance (WLZ-DSFA)
• Receptacle built in on side of back box for plug and play occupancy sensors
• Bluetooth PIR motion sensor with daylight harvesting, black or white finish, (LE-MS3W-KIT-BL-A, LE-MS3W-KIT-WH-A)
• PIR motion sensor with daylight harvesting, black or white finish, (SC-MSP12-KIT-BL-A, SC-MSP12-KIT-WH-A)
• Remote for SC-MSP12-KIT-BL-A occupancy sensor (TL-MSSW-REMOTE)
• 120/277VAC Button type universal photocontrol options accessory (PCU)

Testing & Compliance

• cULus Listed for Wet Locations
• DesignLights Consortium® (DLC) PREMIUM Qualified
• IP65 Rated
• Operating temperatures: -40°C to 45°C (-40°F to 113°F)
• Operating Temperatures (Option: BB): 5°C to 45°C (41°F to 113°F) with Battery Backup
• Operating Temperatures (Option: CL): Cold Locations down to -20°C (-4°F) with Cold Location Battery Backup
• International Dark Sky friendly approved product. (IDA) (compliant only with factory installed WLZ-DSFA module locking CCT to 3000K

Warranty

• Five Year Warranty (Terms and Conditions Apply)
• 10 Year Warranty available upon request, consult factory
