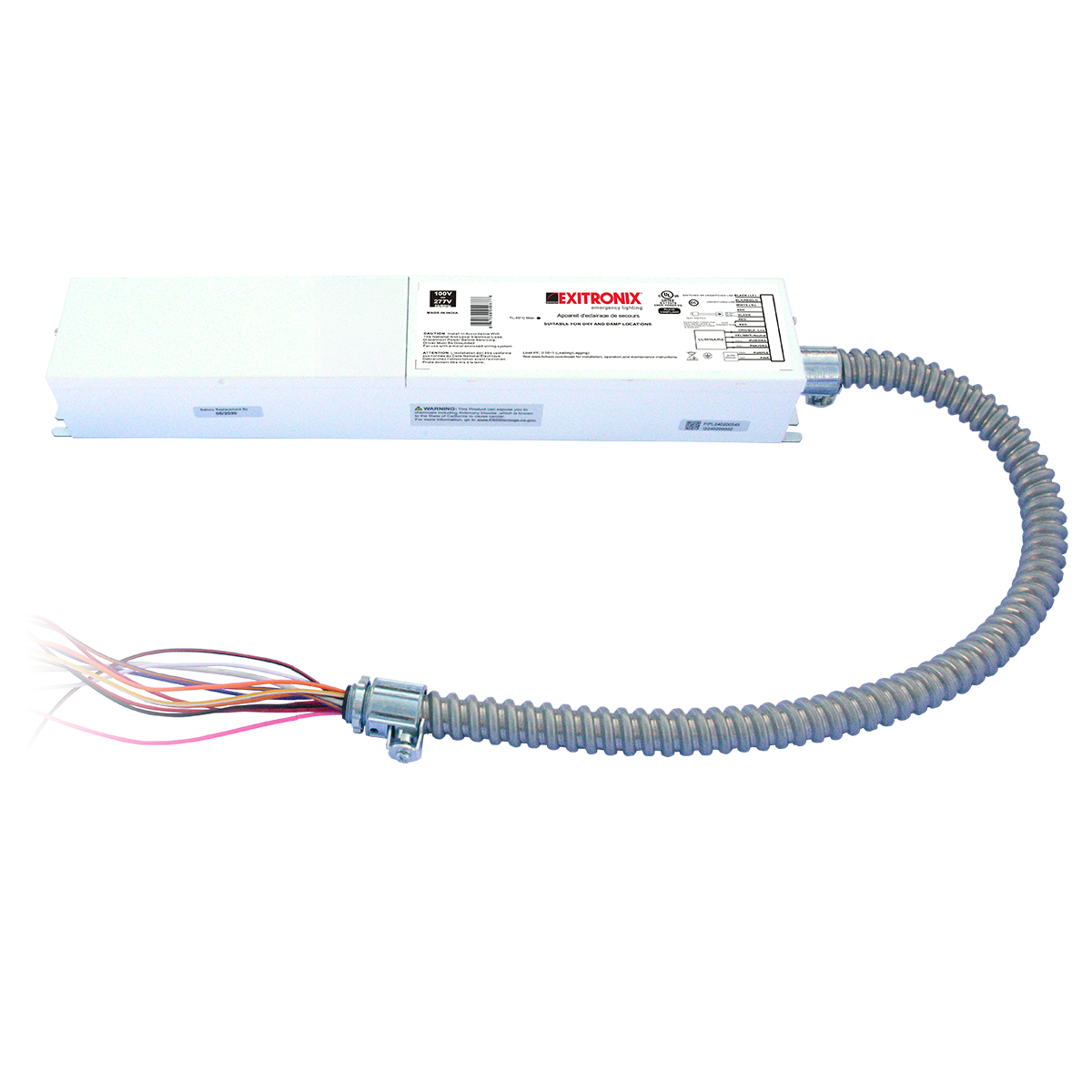

MI-25 Series 25W Emergency Micro Inverter

The MI-25 delivers power to any fixture (any tech type) in emergency mode for 90 minutes at 25W. The MI Series is designed to function in conjunction with the existing building electrical system to provide back-up power protection and distribution for lighting loads and other critical loads in the event of utility power failure. The MI-25 Series can support one luminaire rated for 150W or multiple fixtures whose system wattage adds up to 150W in nominal operation. In the event of a power failure, all connected fixtures are powered at full output providing brighter illumination for a clear path of egress.

UL Certified CEC Compliant Warranty

Features & Benefits

  • Delivers power to any fixture (any tech type) in emergency mode for 90 minutes at 25W
  • Functions in conjunction with the existing building electrical system to provide back-up power protection
  • Supports one 150W luminaire or multiple fixtures whose system wattage adds up to 150W
  • Capacity: 25W
  • Input Voltage / Frequency: 100-277VAC, 50/60Hz
  • Input Current: 0.12A
  • Input Power 11W
  • AC Load Input Power: 150W Max. when using 0-10V dimming 25W Max. when 0-10V dimming is not used
  • Output Power: 25W Max. (45VA Max.)
  • Output Voltage Range: 120/220/277VAC Auto Select, 60Hz.
  • Number of Output Channels: 1 Channel
  • Remote Mounting Distance: Up to 164' (50m) with 18AWG
MI-25 Series 25W Emergency Micro Inverter

MI-25 Series 25W Emergency Micro Inverter

IES Files


Accessories

MI-EXT-48-TST
48" Test Switch Extension
MI-TSTWL-BC
Bi-Color, Wet Location Test Switch
MI-WLP-WH
White Wall Plate, Black Lettering

Contact us or your sales rep if you need a part number that isn't listed here.
