LPA-CP Series Color and Power Switchable LED Flat Panel

New

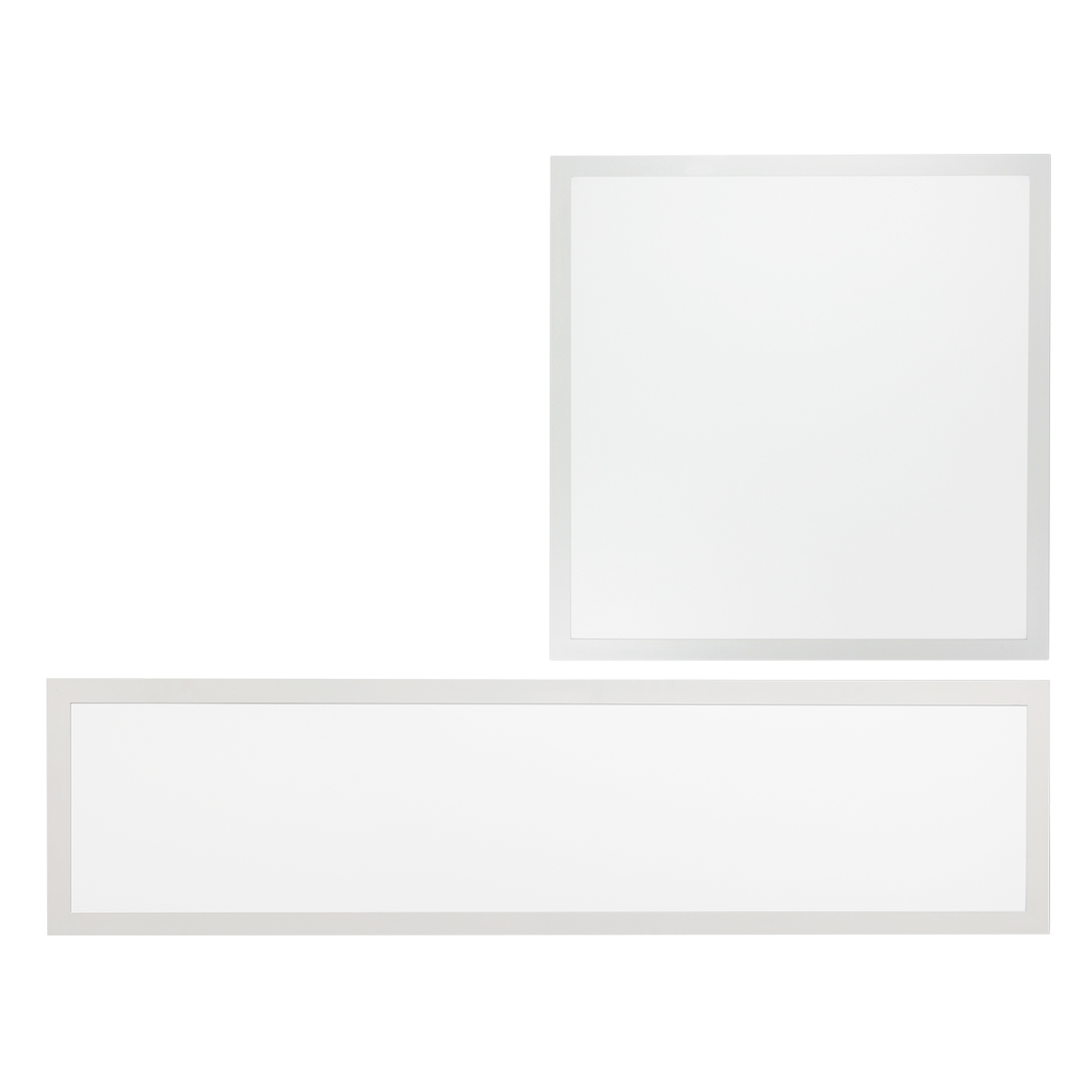

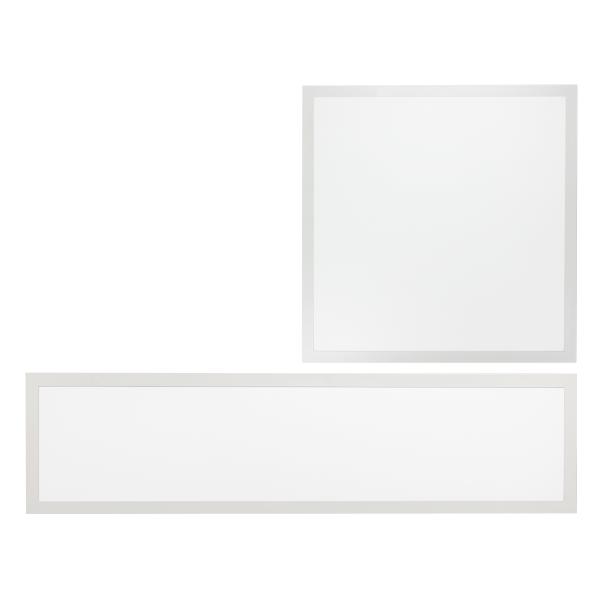

Trace-Lite's LPA-CP Series of adjustable backlit LED panels offers incredible performance in an energy-efficient, slim profile steel enclosure available in 2' x 2' and 2' x 4' configurations. The unit provides ultimate flexibility while minimizing inventory by simply adjusting both CCT and wattage. The CCT can easily be switched between 3500K, 4000K and 5000K. The wattage can be adjusted between 20W-25W-30W for the 2'x2' configuration and 30W-35W-40W for the 2'x4' configuration. This Series is the ideal for office spaces, schools, hospitals and any indoor location that requires even illumination and lower maintenance. The LPA-CP Series is compatible with most standard T-bar grid ceilings and includes 1-10V dimming standard. Trace-Lite LED panels offer soft and uniform light with PMMA optical lensing that will not yellow over time. All panels are packaged in a quantity of four.

Inventory available first week of December

Configure your LPA-CP Series Color and Power Switchable LED Flat Panel

Model

Select options above to configure your item.

For options and configurations that don't generate a SKU, contact us or your sales rep.

Spec Sheet Contact Us

Need more information?


We are happy to answer any questions you have about the LPA-CP Series Color and Power Switchable LED Flat Panel.

Request More Info
  • Precision die-formed steel back enclosure in a white finish
  • Aluminum frame with seamless corners
  • Recessed design fits most standard T-bar grid ceilings
  • Backlit design, LEDs sit at the back of the enclosure aimed directly at the diffuser to evenly illuminate the entire surface of the panel
  • Sturdy frame prevents warping due to the slightly more elevated profile
  • Wattage and CCT switches located inside driver junction box
  • Enlarged driver box to facilitate installation with Wago connectors included
  • UV-stabilized PMMA optical lenses over the LEDs that will not yellow over time
  • Soft and uniform light distribution, 120° beam
  • Efficacies up to 156 LPW to maximize energy savings and utility rebates
  • Switchable from 3500K, 4000K(default) and 5000K CCT. Dip switch located inside driver box behind the unit.
  • CRI ≥80
  • L70 > 100,000 hours
  • 120-277VAC, 50/60Hz
  • 1-10V Dimming driver
  • Power switchable, 2'x2' configuration between 20W, 25W and 30W (default), 2'x4' configuration between 30W, 35W and 40W (default). Dip switch located in the driver box
  • Power supply with high power factor of 90% typical
  • cETL Listed, rated for insulated ceilings (IC Rated)
  • Meets IP20 rating, Damp Location
  • Operating temperatures: -10°C to 40°C (14°F to 104°F)
  • Unit simply lifts through grid ceiling and rests on T-bars
  • Easy installation in new construction or retrofit
  • Standard recessed mounting in most 2’ x 2’ or 2’ x 4’ grid ceilings
  • Earthquake clips included
  • Wattage and CCT adjustment switches in driver box
  • Five Year Warranty (Terms and Conditions Apply)
Contact us or your sales rep if you need a SKU that isn't listed here.

LPA22-CP
LPA24-CP
