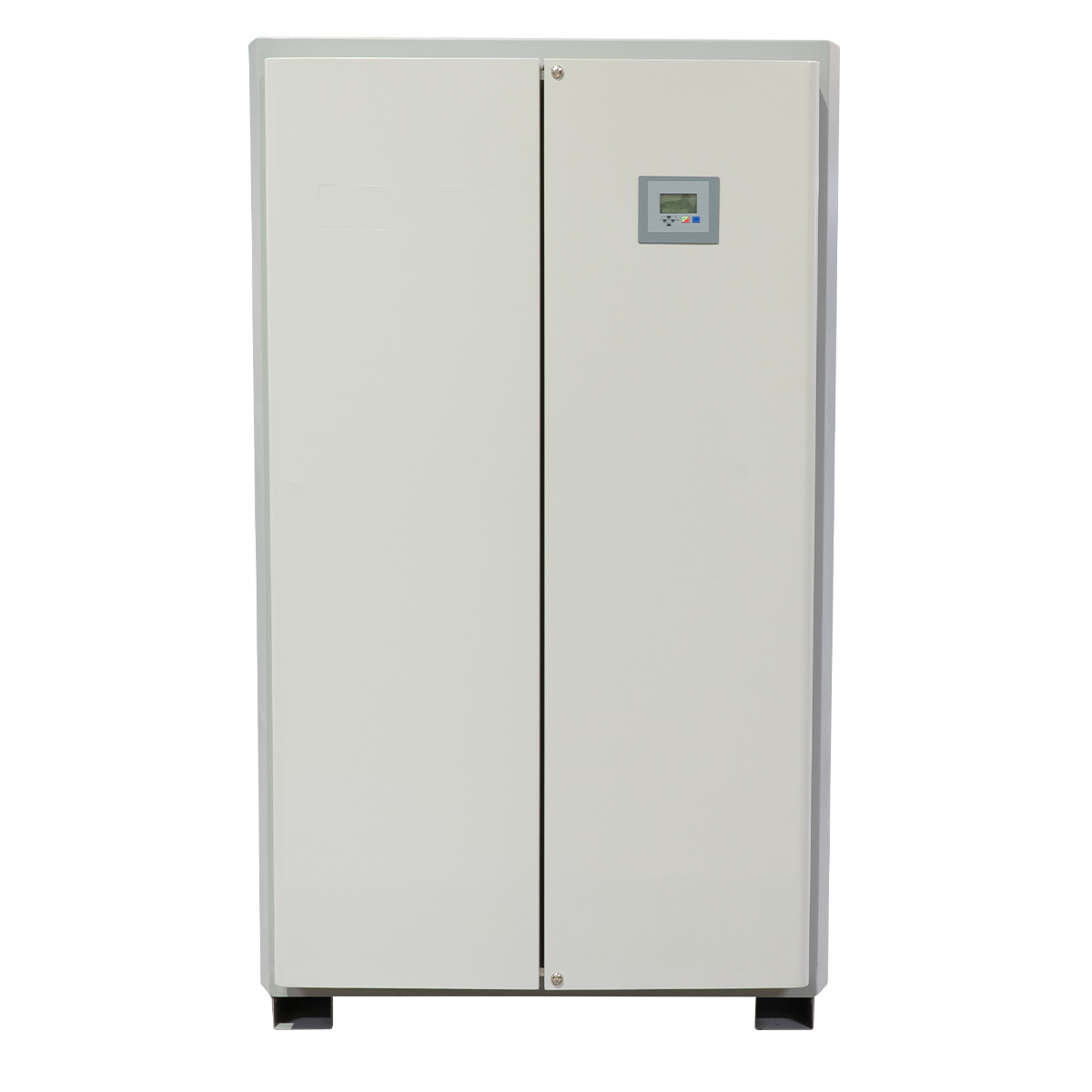

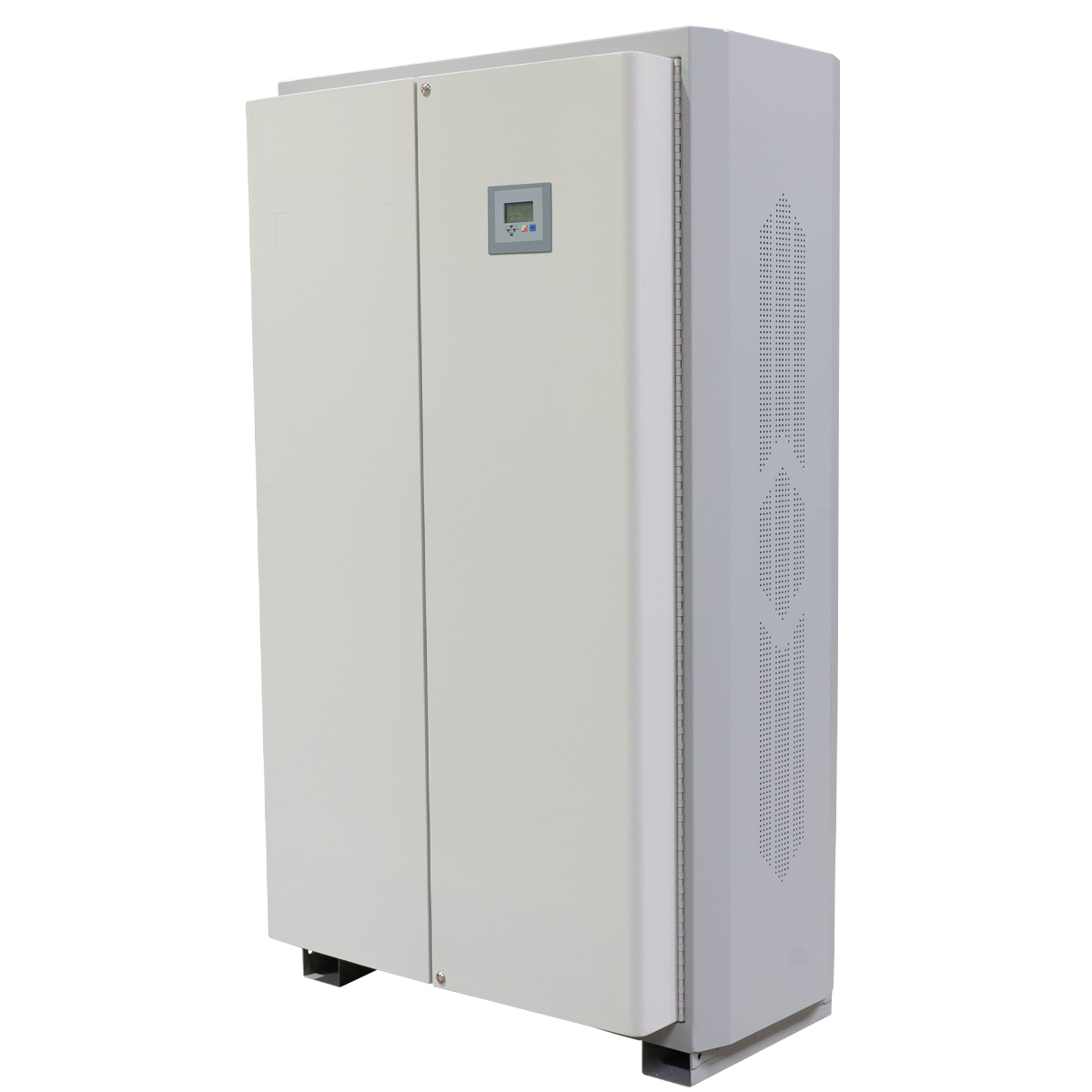

Phoenix Plus Series Single Phase, Indoor Online Emergency Lighting Inverter 4.7 to 21.0KW
Phoenix Plus Series Single Phase, Indoor Online Emergency Lighting Inverter 4.7 to 21.0KW


Phoenix Plus Series Single Phase, Indoor Online Emergency Lighting Inverter 4.7 to 21.0KW

Spec Sheet Request More Info

The Phoenix Plus is a freestanding, single-phase, online, double-conversion, Solid-state inverter system utilizing patented DSP/PWM technology. The Phoenix Plus is designed to function in conjunction with the existing building electrical system to provide high-quality power conditioning, backup power protection and distribution for lighting loads and other critical loads.

Buy American Act Build America Buy America Warranty

Features & Benefits

  • Input Voltage: 120, 208, 240, 277 or 480VAC
  • Output Voltage: 120, 277, 480, 120/240 or 120/277VAC
  • Recharge Current: Conforms to UL 924 standards
  • External Battery: Provision for hardware connection of external battery cabinets or DC source
  • Efficiency: ≥92% at 100% linear load
  • Complies with the Buy American Act (Level 3) and Build America Buy America requirements
Phoenix Plus Series Spec Sheet
Phoenix Plus System Current Ratings
Phoenix Plus Remote Indicator Panel
Phoenix Plus Integration
Phoenix Plus Flow Diagram
Phoenix Plus ECM Configuration
Phoenix Plus Conduit and Cabinet
Phoenix Plus Components
Phoenix Plus External Maintenance Bypass Switch
Phoenix Plus Seismic Bracket
Inverter Sell Sheet
Phoenix Plus Series Single Phase, Indoor Online Emergency Lighting Inverter 4.7 to 21.0KW

Phoenix Plus Series Single Phase, Indoor Online Emergency Lighting Inverter 4.7 to 21.0KW

IES Files


Accessories - Factory Installed

CD
Service Contract
ECM120/#
120V Environmental Control Module / Qty
ECM277/#
277V Environmental Control Module / Qty
EMB
External Maintenance Bypass Switch
EPO
Emergency Power Off
EW
Extended Warranty
FCON
Form C Contacts
IDB
Internal Dimmer Bypass
NOF/V/#
Normally OFF Output Circuit / Voltage / Qty
NOH/V/#
Normally OFF “Hold ON” / Voltage / Qty
OCB/V/#/A
Output Circuit Breakers / Voltage / Qty / Amps
OST
Onsite Start-Up
RP
Remote Indicator Panel
SC
Service Contract
SNMP
SNMP Card
SRB
Seismic Rated Bracket

Contact us or your sales rep if you need a part number that isn't listed here.

PHXPLUS-4.7-120-120-90
PHXPLUS-4.7-208-120-90
PHXPLUS-4.7-208-120/240-90
PHXPLUS-4.7-277-120-90
PHXPLUS-4.7-277-277-90
PHXPLUS-5.25-120-120-90
PHXPLUS-5.25-208-120-90
PHXPLUS-5.25-277-277-90
PHXPLUS-7.0-120-120-90
PHXPLUS-7.0-208-120-90
PHXPLUS-7.0-208-120/240-90
PHXPLUS-7.0-277-277-90
PHXPLUS-8.0-120-120-90
PHXPLUS-8.0-208-120/240-90
PHXPLUS-8.0-277-277-90
PHXPLUS-8.0-480-277-90
PHXPLUS-10.0-120-120-90
PHXPLUS-10.0-208-120-90
PHXPLUS-10.0-208-120/240-90
PHXPLUS-10.0-277-120-90
PHXPLUS-10.0-277-277-90
PHXPLUS-10.0-480-277-90
PHXPLUS-12.0-120-120-90
PHXPLUS-14.0-277-277-90
PHXPLUS-18.0-208-120/240-90
PHXPLUS-18.0-277-120-90
