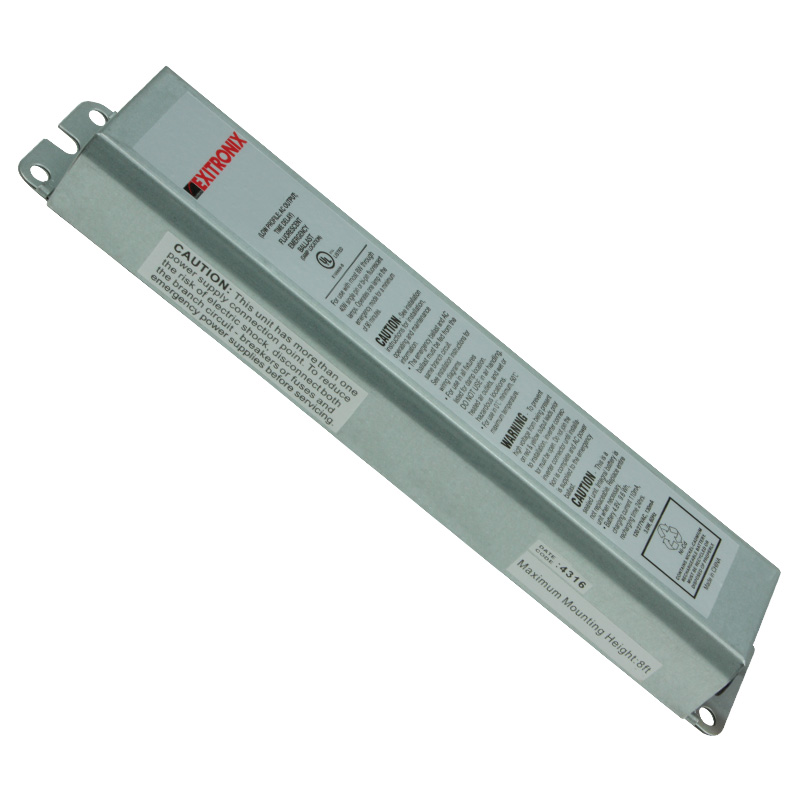

XEB-T5-5-B-LM 320-500 Lumens

The XEB-T5-5-B-LM Series fluorescent emergency ballast allows the same fixture to be used for both normal and emergency operation when used in conjunction with an AC ballast.


Features & Benefits

  • For use with most 21-28W T5 linear and 34W T12 U-bend fluorescent lamps
  • UL Listed for factory or field installation
  • Compatible with ECO/low-mercury lamps
  • Listed 90 minute emergency run time, 24 hour recharge time
  • High-temperature, maintenance-free, NiCad battery with 7-10 year life expectancy
  • Slim design fits in smaller ballast compartments
  • Includes test switch and charge indicator accessory kit
  • Meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting

XEB-T5-5-B-LM 320-500 Lumens

IES Files


Accessories

XEB-CGM
Ceiling Grid Mount
XEB-RE
Remote Enclosure
XEB-WC
Wire Cover Per Wire Entry

Contact us or your sales rep if you need a part number that isn't listed here.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite


The XEB-T5-5-B-LM Series fluorescent emergency ballast allows the same fixture to be used for both normal and emergency operation when used in conjunction with an AC ballast.



Need more information?

We are happy to answer any questions you have about the XEB-T5-5-B-LM 320-500 Lumens.

Spec Sheet Request More Info

Configure your XEB-T5-5-B-LM 320-500 Lumens

Series

Configure your XEB-T5-5-B-LM 320-500 Lumens

Series

Features & Benefits

  • For use with most 21-28W T5 linear and 34W T12 U-bend fluorescent lamps
  • UL Listed for factory or field installation
  • Compatible with ECO/low-mercury lamps
  • Listed 90 minute emergency run time, 24 hour recharge time
  • High-temperature, maintenance-free, NiCad battery with 7-10 year life expectancy
  • Slim design fits in smaller ballast compartments
  • Includes test switch and charge indicator accessory kit
  • Meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting
XEB-CGM
Ceiling Grid Mount

XEB-RE
Remote Enclosure

XEB-WC
Wire Cover Per Wire Entry
