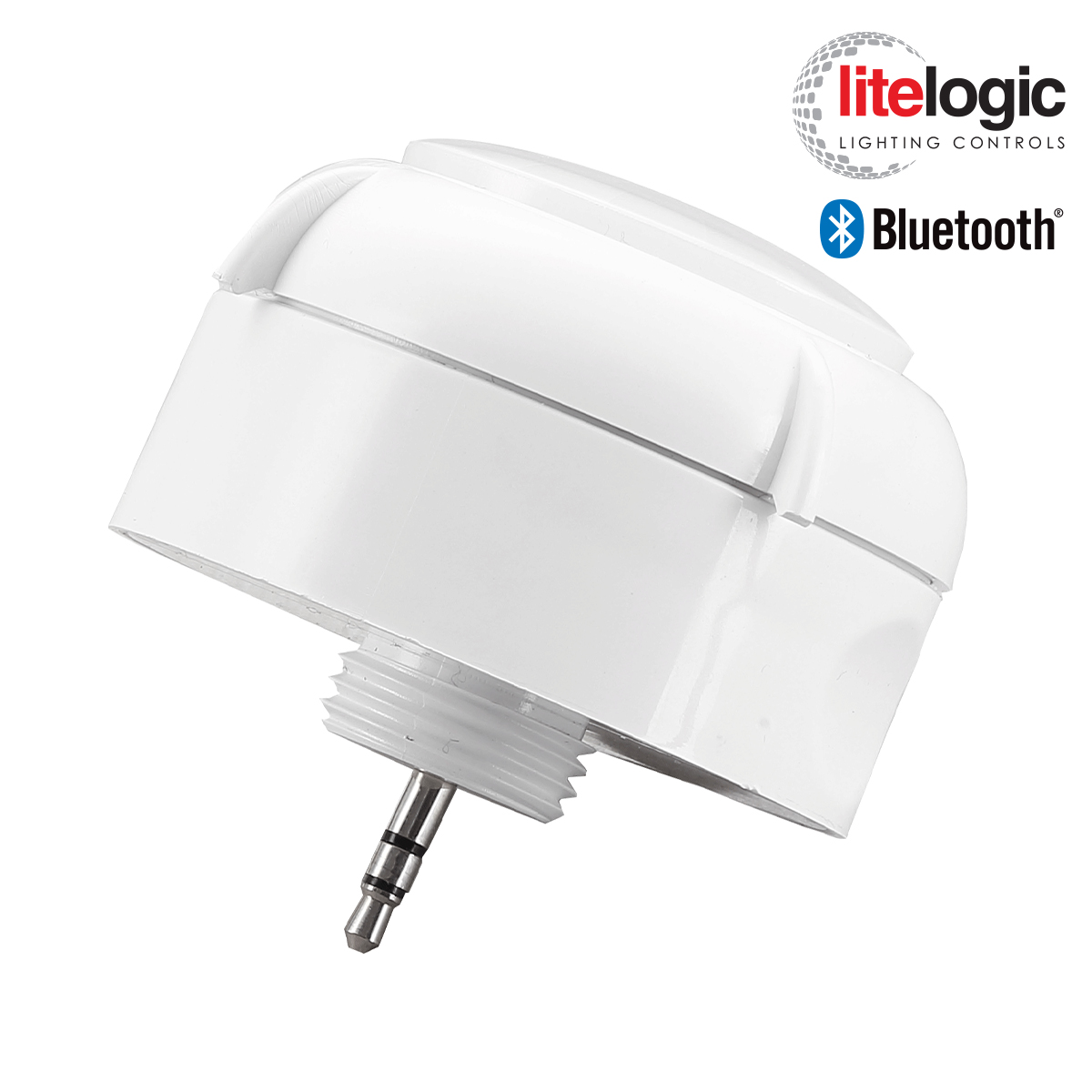

LE-MS3-AUX-HB1 Series LiteLogic External PIR Motion Sensor with Daylight Harvesting

The LE-MS3-AUX-HB1 is a DC powered, external sensor for highbay and other indoor or outdoor luminaires. Equipped with LiteLogic wireless Bluetooth® mesh technology and a user-friendly interface that can be programmed within minutes using just your smartphone, automation becomes effortless, energy, labor and material costs are significantly reduced, and setting up lighting control becomes a breeze. LiteLogic sensors are easily installed on-site and are compatible with a variety of Trace-Lite fixtures. Equipped with highbay lens for mounting heights up to 40 feet.

cULus Listed CE Compliant DLC Qualified California Title 24 IP65 Rated for protection from low pressure water jets from any direction FCC Approved Litelogic bluetooth Warranty

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP65, suitable for indoor use
  • Finish: White
  • Operating Temperature: -30°C to 55°C (-22°F to 131°F)
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 12VDC
  • Input Current: 50mA max
  • Input Power: 0.6W
  • Output Current: 10mA max
  • Output Power: 0.1W
  • Dimming: Class 2, 0-10VDC, 10mA max
  • Sinking Current: 10mA max

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, UL 1376, RohS
  • FCC ID: 2A26YLTKTVT2021
  • DesignLights® Consortium Qualified Product

Features & Benefits

  • Includes LiteLogic wireless Bluetooth® mesh technology
  • Mounting heights up to 40 feet
  • Built-in analog PIR sensor
  • Daylight harvesting option
  • 3.5mm Audio jack base
  • Suitable for indoor use (IP65 rated)

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 164' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 4.2

Sensor Details

  • Detection Range: 40'-80'
  • Mounting Height: Up to 40'

LE-MS3-AUX-HB1 Series LiteLogic External PIR Motion Sensor with Daylight Harvesting

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

Energy Rebates

Qualified products may be eligible for utility rebates.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite


LiteLogic External PIR Motion Sensor with Daylight Harvesting

The LE-MS3-AUX-HB1 is a DC powered, external sensor for highbay and other indoor or outdoor luminaires. Equipped with LiteLogic wireless Bluetooth® mesh technology and a user-friendly interface that can be programmed within minutes using just your smartphone, automation becomes effortless, energy, labor and material costs are significantly reduced, and setting up lighting control becomes a breeze. LiteLogic sensors are easily installed on-site and are compatible with a variety of Trace-Lite fixtures. Equipped with highbay lens for mounting heights up to 40 feet.

cULus Listed CE Compliant DLC Qualified California Title 24 IP65 Rated for protection from low pressure water jets from any direction FCC Approved Litelogic bluetooth Warranty
