Construction

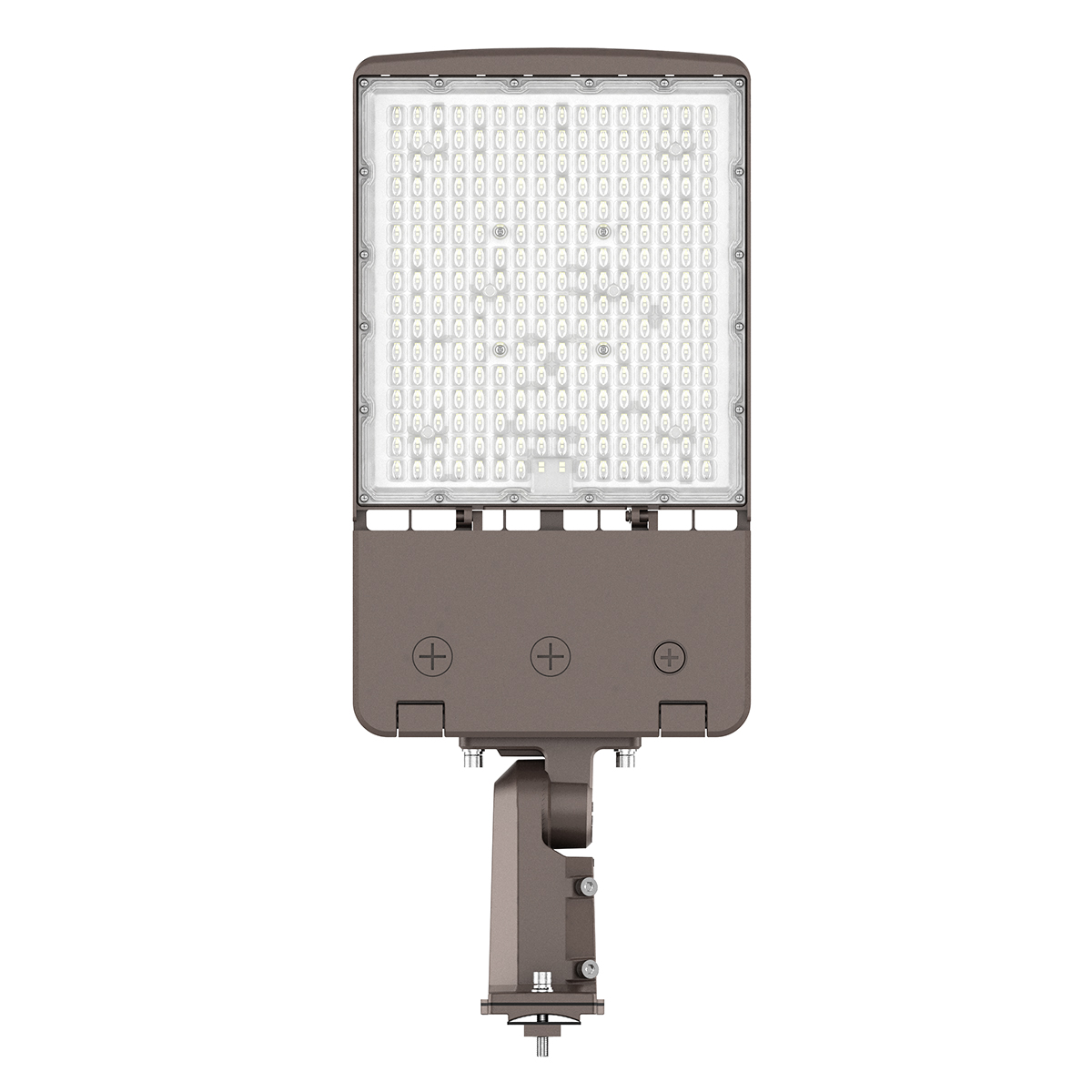

• Slim/sleek die-cast aluminum housing with stainless steel hardware and powder coat finish

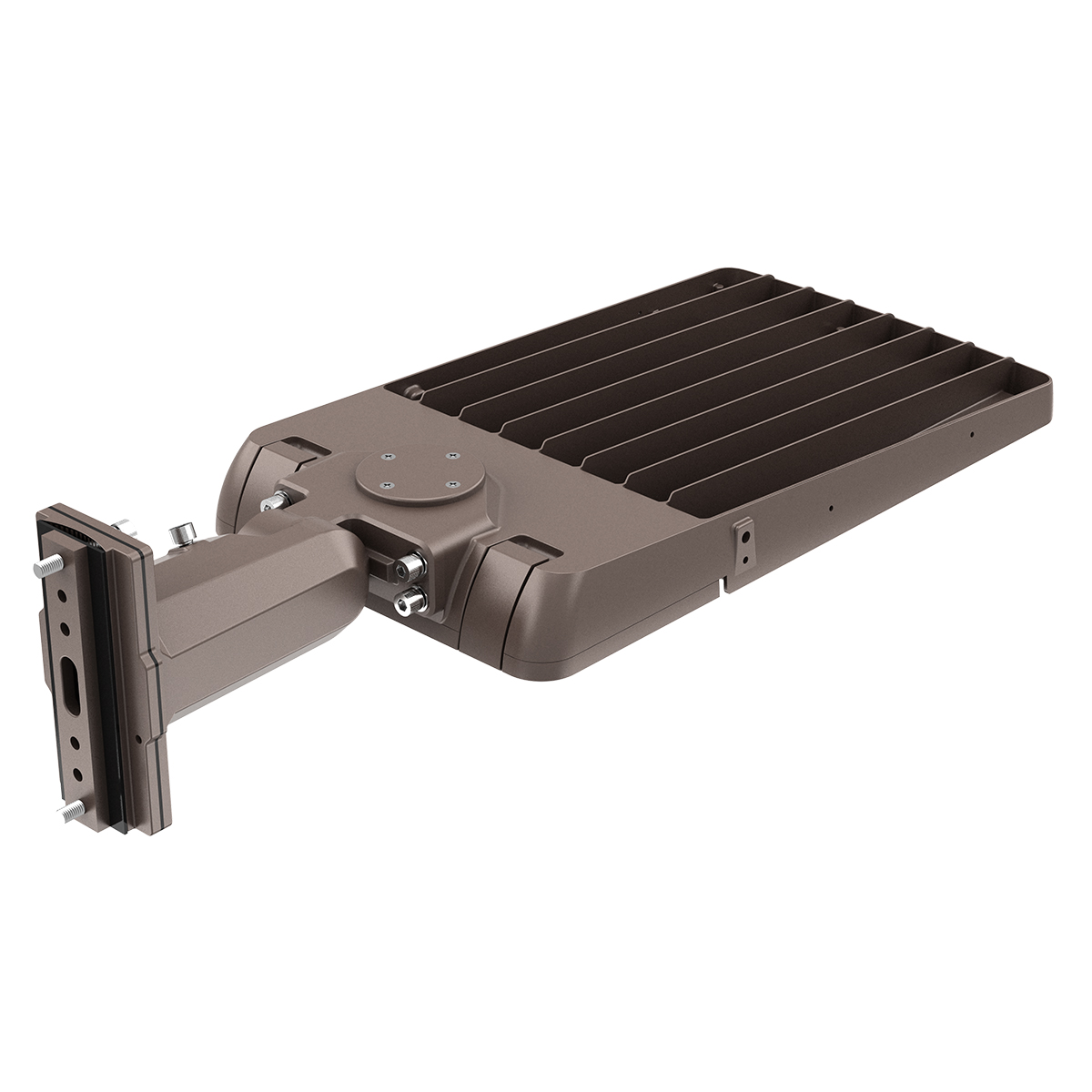

• Integral heat sink fins maximize heat dissipation
• Hinged driver access door for ease of maintenance

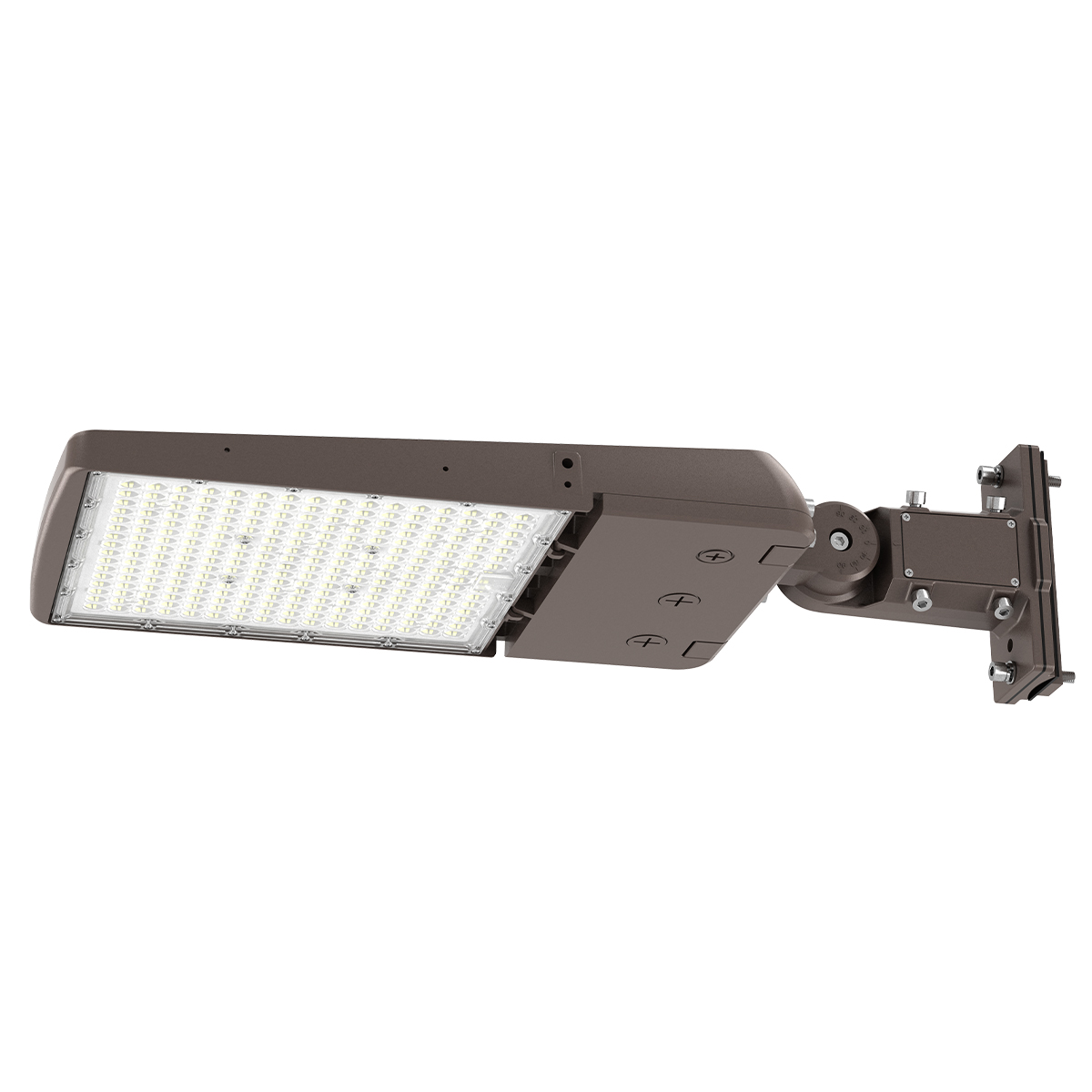

• Universal adjustable arm consisting of a slipfitter for 4" and 5" square or round pole and wall mount included standard
• Slotted bolt pattern suitable for retrofit to most existing drill hole patterns
• Includes (2) 6' conductor whips (3 conductor for building power supply and 2 conductor for dimming leads)

Optics/LEDs

• 100 to 300 Watts with field-switchable lumen packages from 14,500 to 48,000 lumens
• Designed with zero uplight to eliminate light pollution
• Efficiacies up to 160 LPW maximize energy savings and utility rebates
• Field-switchable distribution between Type III, IV and V to optimize light distribution
• Field-switchable CCT between 3000K, 4000K and 5000K
• L70 ≥ 72,000 hours
• L90 ≥ 65,000 hours
• CRI >80

Installation

• Hinged driver door for ease of access (coin plugs on the driver door provides ease of access to dipswitches for power, CCT and distribution selectability)
• Standard universal adjustable arm consisting of a slipfitter for 4" and 5" square or round pole and wall mount

Electrical

• Class 1 power supply, 120-277VAC, 50/60Hz
• 0-10V Dimming driver
• Power Factor ≥ 0.90
• 277-480VAC Dedicated driver option
• 10KA(@120-277V) or 20KA(@277-480V) Surge protection

Options

• 3-Pin Twist Lock receptacle (Option PC3)
• 7-Pin Twist Lock receptacle (Option PC7)

Accessories

• 3-Pin Twist Lock universal photocontrol (120-277VAC) for dusk to dawn lighting control (TLPR)
• 7-Pin Twist Lock universal photocontrol (120-277VAC) for dusk to dawn lighting control (TLPR7)
• 3-Pin Twist Lock universal photocontrol (347-480VAC) for dusk to dawn lighting control (TLPRH)
• Bluetooth enabled dimming occupancy sensor (LE-MS3W-BL-AUX-HB1), PIR, 120/277VAC
• Dimming occupancy sensor (TL-MSP12-BL), PIR, with photocontrol, 120/277VAC
• Multiple contractor friendly accessories available, see ordering information

Testing & Compliance

• cULus Listed for Wet Locations, tested to meet IP65 requirements
• DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)
• Operating temperature: -40°C to 50°C (-40°F to 122°F)

Warranty

• Five Year Warranty (Terms and Conditions Apply)
• 10 Year Warranty available upon request, consult factory
