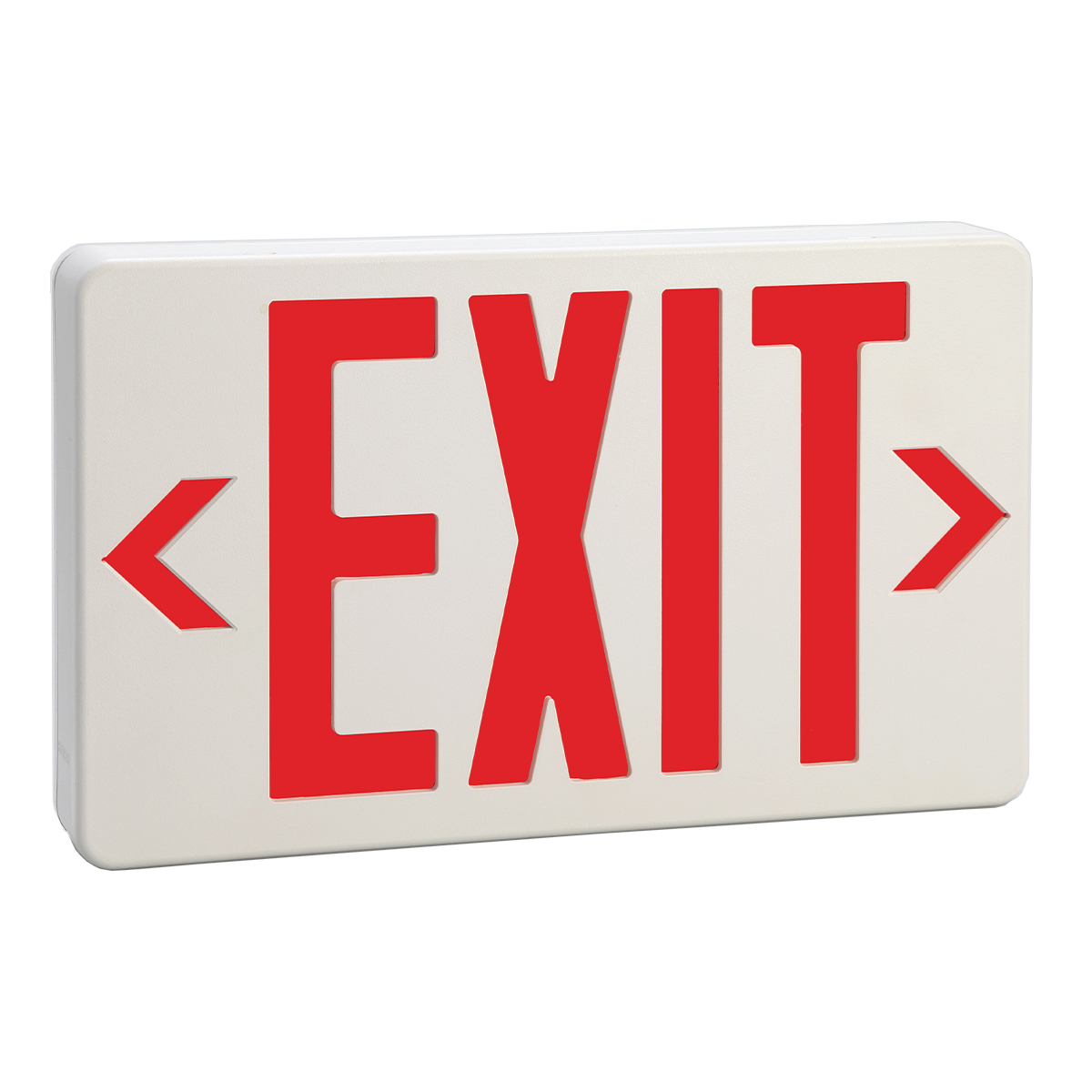

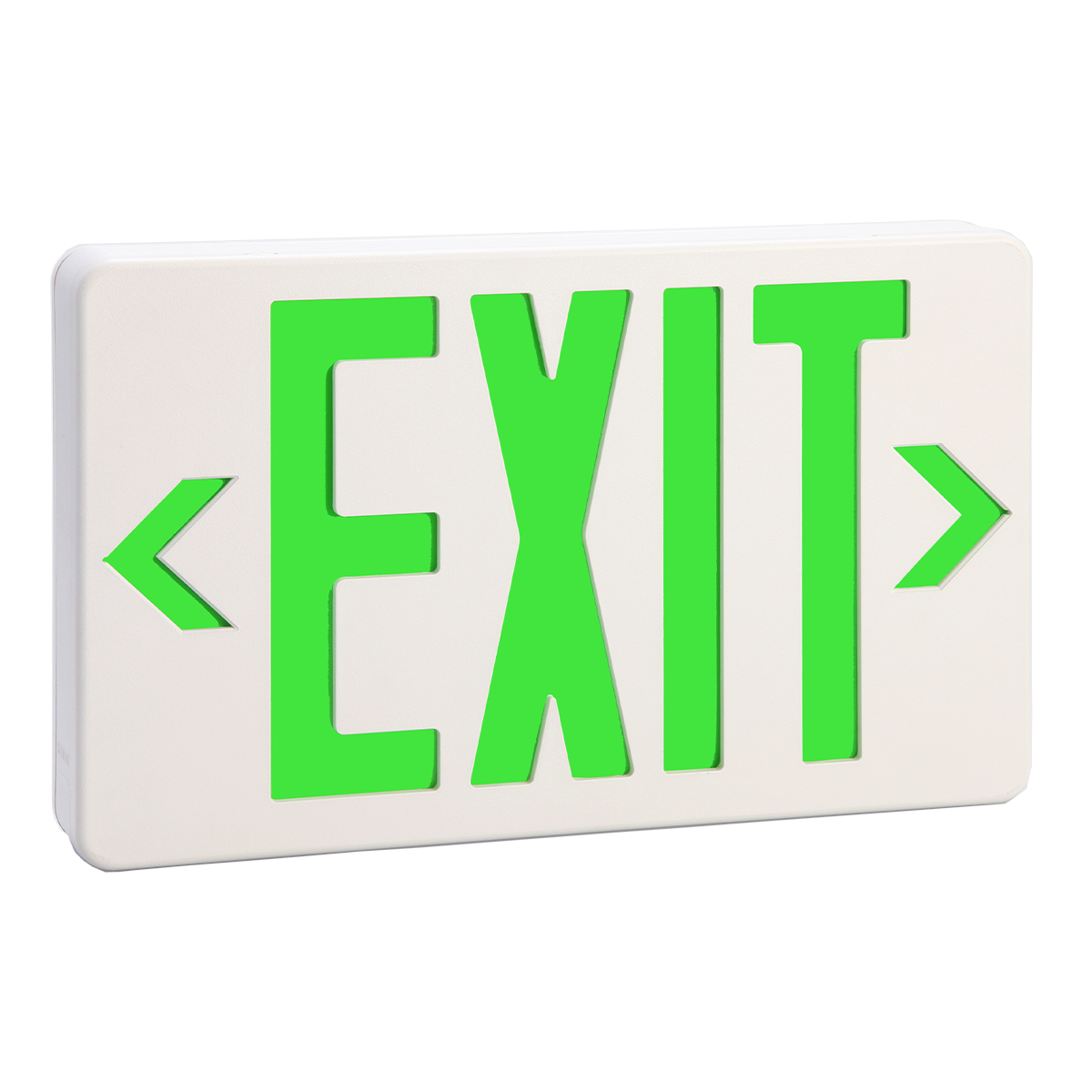

VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit


VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit

Spec Sheet Request More Info

Attractive and easy to install, the VEX Series combines contemporary styling with quality LED illumination. Includes covers for both single- and double-face, red or green configurations.

cULus Listed Damp Locations Warranty

Features & Benefits

  • Compact, low-profile, snap-together design
  • Maintenance-free NiCad battery with 1.5 watts remote capacity for use with JLED remote lamp heads

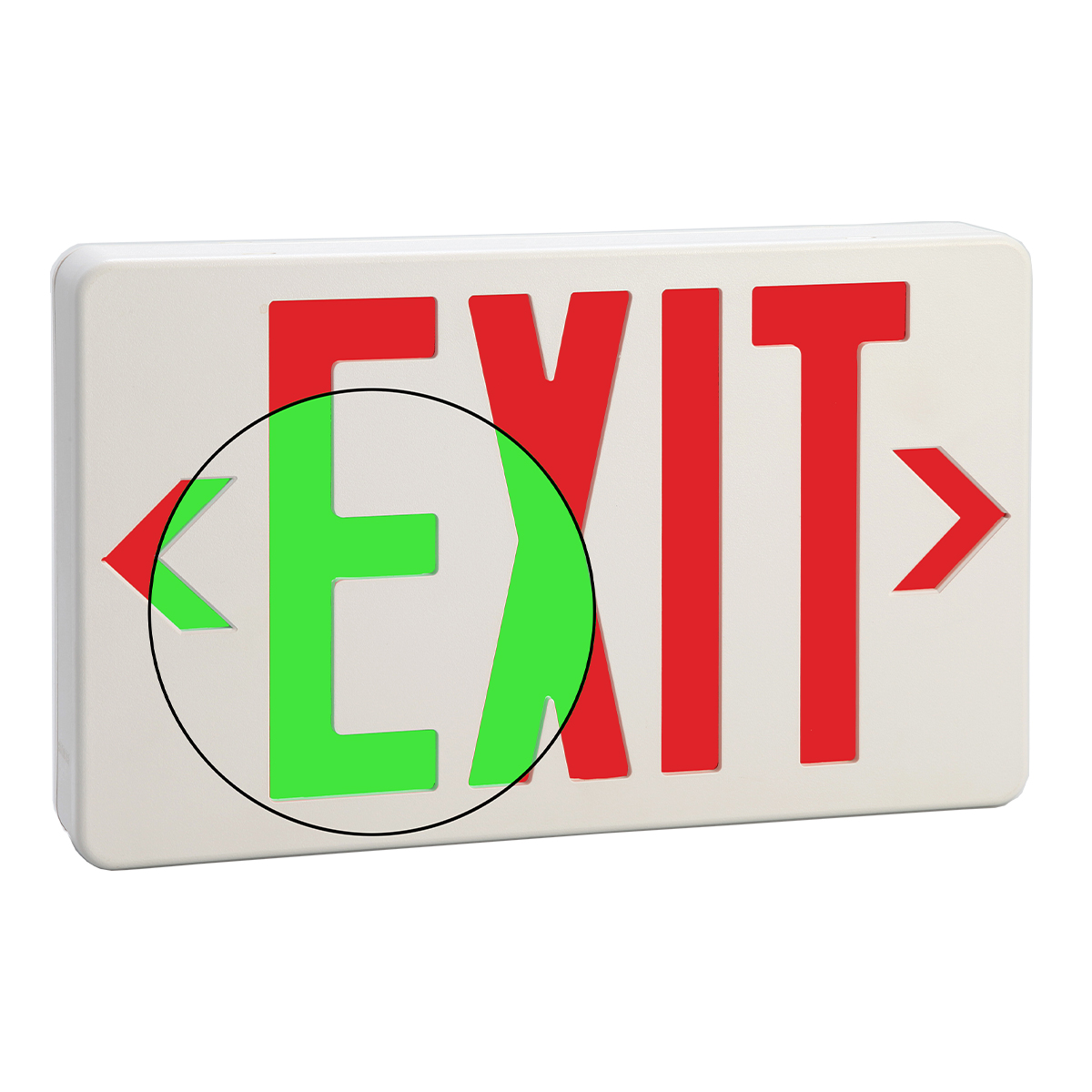

  • Field-switchable red/green letters
  • Universal single- or double-face
  • Field-selectable directional chevron knockouts
  • Suitable for Damp Locations
  • Rugged, injection-molded, UL 94 5VA flame-retardant, high-temperature thermoplastic housing
  • 120/277VAC Dual primary, 60Hz
  • Maintenance-free NiCad battery
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke and field-selectable directional chevrons
  • Ceiling, end or wall mounted, canopy included
  • 10°C to 40°C (50°F to 104°F)
  • UL Listed for Damp Locations and meets or exceeds the following: NEC requirements and NFPA 101
VEX-R-RG Specification
VEX-R-RG Installation
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit

VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit

IES Files


Accessories

VEPA
VEX/ILX Canopy Adapter

Pendant Kits

ER1-KIT-BL
1 Foot Pendant Kit-Black
ER1-KIT-WH
1 Foot Pendant Kit-White
ER2-KIT-BL
2 Foot Pendant Kit-Black
ER2-KIT-WH
2 Foot Pendant Kit-White

Vandal Resistant Polycarbonate Guards

XG-1
Back Mount - 14.25" X 9.25" X 3.5"

Vandal Resistant Wire Guards

WG-S
Back Mount - 16.0" X 14.0" X 7"

Contact us or your sales rep if you need a part number that isn't listed here.

VEX-RG-U-WB-BL-R
VEX-RG-U-WB-BL-R-G2
VEX-RG-U-WB-WH-R
VEX-RG-U-WB-WH-R-G2

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit


Remote Capable Red/Green Switchable Thermoplastic LED Exit

Attractive and easy to install, the VEX Series combines contemporary styling with quality LED illumination. Includes covers for both single- and double-face, red or green configurations.

cULus Listed Damp Locations Warranty

Need more information?

We are happy to answer any questions you have about the VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit.

Spec Sheet Request More Info

Configure your VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit

Series
LED Color
Style
Power Source
Finish
Remote Capacity
Options

Configure your VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit

Series
LED Color
Style
Power Source
Finish
Remote Capacity
Options

Features & Benefits

  • Compact, low-profile, snap-together design
  • Maintenance-free NiCad battery with 1.5 watts remote capacity for use with JLED remote lamp heads
  • Field-switchable red/green letters
  • Universal single- or double-face
  • Field-selectable directional chevron knockouts
  • Suitable for Damp Locations
  • Rugged, injection-molded, UL 94 5VA flame-retardant, high-temperature thermoplastic housing
  • 120/277VAC Dual primary, 60Hz
  • Maintenance-free NiCad battery
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke and field-selectable directional chevrons
  • Ceiling, end or wall mounted, canopy included
  • 10°C to 40°C (50°F to 104°F)
  • UL Listed for Damp Locations and meets or exceeds the following: NEC requirements and NFPA 101
VEX-R-RG Series Remote Capable Red/Green Switchable Thermoplastic LED Exit
VEX-R-RG Specification
VEX-R-RG Installation

Accessories

VEPA
VEX/ILX Canopy Adapter

Pendant Kits

ER1-KIT-BL
1 Foot Pendant Kit-Black

ER1-KIT-WH
1 Foot Pendant Kit-White

ER2-KIT-BL
2 Foot Pendant Kit-Black

ER2-KIT-WH
2 Foot Pendant Kit-White

Vandal Resistant Polycarbonate Guards

XG-1
Back Mount - 14.25" X 9.25" X 3.5"

Vandal Resistant Wire Guards

WG-S
Back Mount - 16.0" X 14.0" X 7"


Contact us or your sales rep if you need a part number that isn't listed here.

VEX-RG-U-WB-BL-R
VEX-RG-U-WB-BL-R-G2
VEX-RG-U-WB-WH-R
VEX-RG-U-WB-WH-R-G2

Enter your zip code to find a representative in your area.
