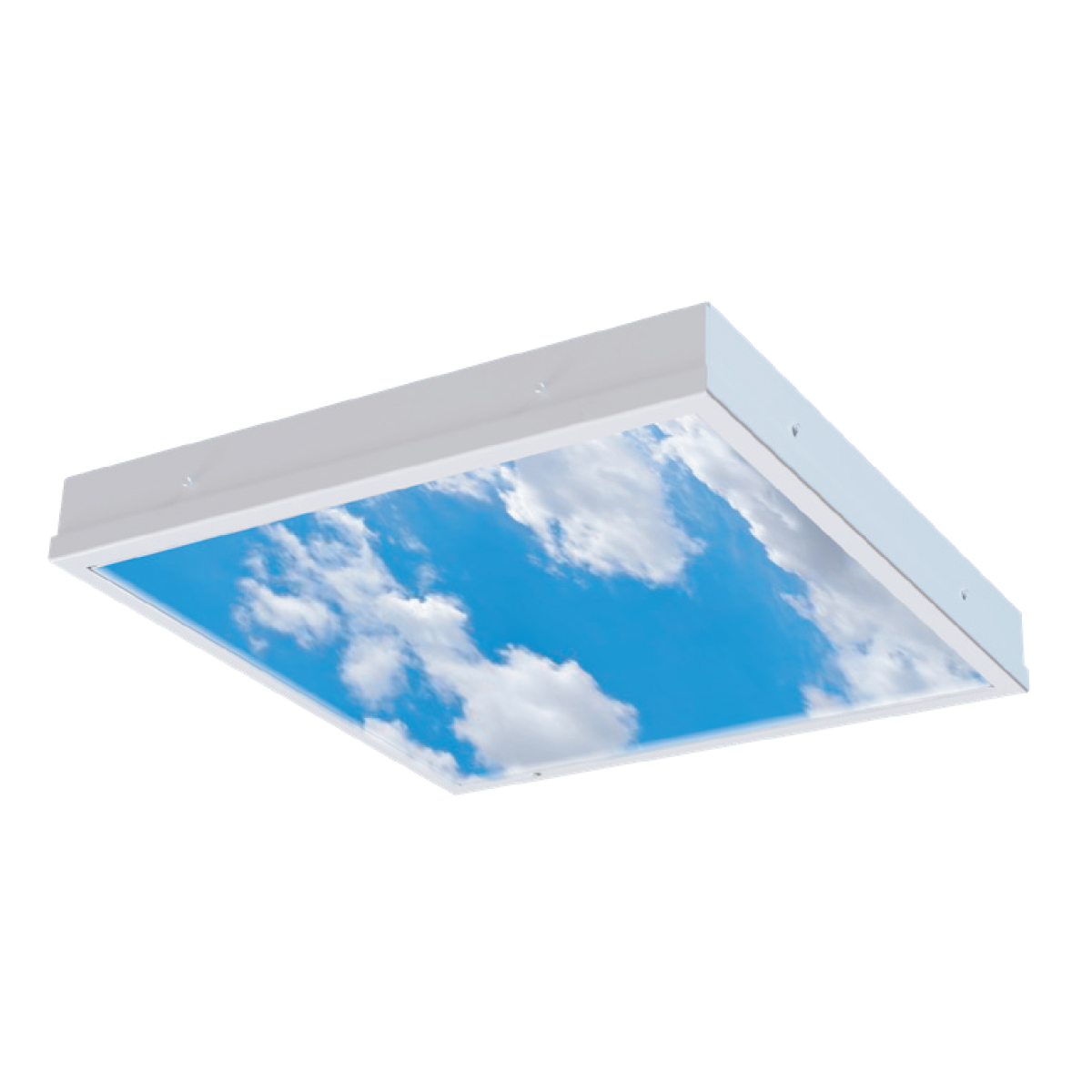

MAM Series MRI Suite Scenic LED Recessed Flat Panel

The MAM Series MRI Suite LED flat panel is constructed of non-ferrous materials and features remote mounted drivers for use in MRI imaging rooms. It provides a variety of scenic landscapes to keep patients calm and relaxed during the imaging process. Available in 2' x 2' and 2' x 4' sizes with static CCTs between 2700K-6500K and lumen packages from 2,000 to 12,000 lumens.

ETL Compliant Buy American Act Build America Buy America Warranty


Related Product:


MAM Series MRI Suite Scenic LED Recessed Flat Panel

MAM Series MRI Suite Scenic LED Recessed Flat Panel

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New


MRI Suite Scenic LED Recessed Flat Panel

The MAM Series MRI Suite LED flat panel is constructed of non-ferrous materials and features remote mounted drivers for use in MRI imaging rooms. It provides a variety of scenic landscapes to keep patients calm and relaxed during the imaging process. Available in 2' x 2' and 2' x 4' sizes with static CCTs between 2700K-6500K and lumen packages from 2,000 to 12,000 lumens.

ETL Compliant Buy American Act Build America Buy America Warranty

Related Product:



Need more information?

We are happy to answer any questions you have about the MAM Series MRI Suite Scenic LED Recessed Flat Panel.

Spec Sheet Request More Info

Configure your MAM Series MRI Suite Scenic LED Recessed Flat Panel

Model
Size
Wattage
CCT
Orientation
Layout
Finish

Features

Construction

  • 14ga Aluminum enclosure with non-ferrous material within enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
  • Recessed design fits most standard T-bar grid ceilings

Optics/LEDs

  • Lumen packages from 2,000 to 12,000 lumens
  • 2700K, 3000K, 3500K, 4000K, 5000K or 6500K CCT
  • CRI ≥ 82
  • Efficacy up to 165 lumens per watt
  • L70 > 100,000 hours

Installation

  • Recessed grid mounting

Electrical

  • Remote mounted power supply available with up to 9 drivers (Sold Separately: MRD)

Testing & Compliance

  • cETL Listed
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -30°C to 50°C (-22°F to 122°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)

Configure your MAM Series MRI Suite Scenic LED Recessed Flat Panel

Model
Size
Wattage
CCT
Orientation
Layout
Finish

Features

Construction

  • 14ga Aluminum enclosure with non-ferrous material within enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in White or Antimicrobial White Paint that inhibits growth of bacteria on the fixture surface
  • Recessed design fits most standard T-bar grid ceilings

Optics/LEDs

  • Lumen packages from 2,000 to 12,000 lumens
  • 2700K, 3000K, 3500K, 4000K, 5000K or 6500K CCT
  • CRI ≥ 82
  • Efficacy up to 165 lumens per watt
  • L70 > 100,000 hours

Installation

  • Recessed grid mounting

Electrical

  • Remote mounted power supply available with up to 9 drivers (Sold Separately: MRD)

Testing & Compliance

  • cETL Listed
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -30°C to 50°C (-22°F to 122°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
