LiteLogic
LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor is LiteLogic compatible.

More LiteLogic Products

New

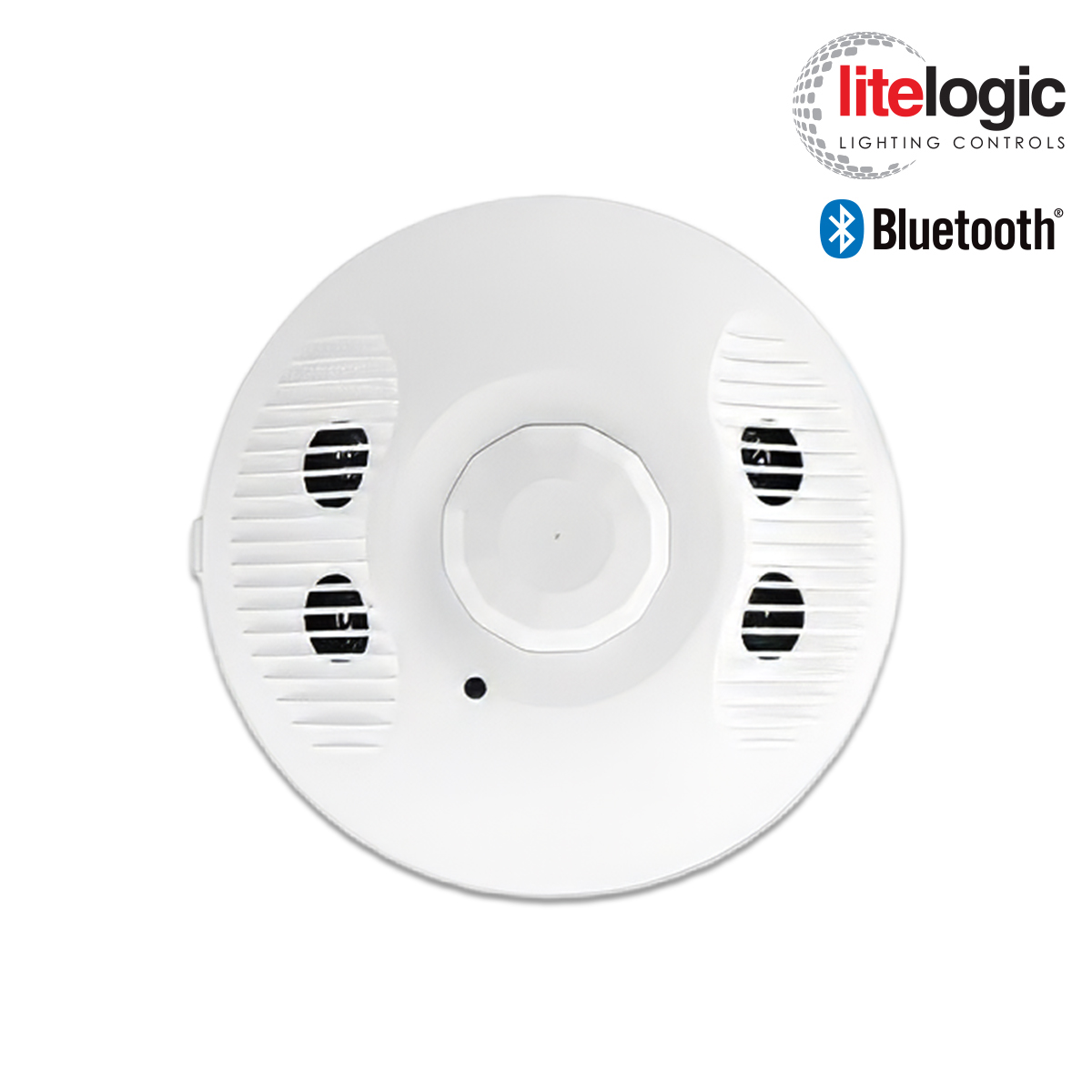

LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor


LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

Spec Sheet Request More Info

The LE-CMS2 is a Bluetooth® enabled, line voltage PIR and Ultrasonic ceiling motion sensor used to manage luminaires. The sensor can be linked to one or more luminaires or groups of luminaires via the LiteLogic app. The LE-CMS2 can initiate on and off command by simply walking in or out of a room.

UL Certified DLC Qualified California Title 24 FCC Approved Litelogic bluetooth Warranty
LE-CMS2 Specification
LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

Energy Rebates

Qualified products may be eligible for utility rebates.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New
LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor


LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

The LE-CMS2 is a Bluetooth® enabled, line voltage PIR and Ultrasonic ceiling motion sensor used to manage luminaires. The sensor can be linked to one or more luminaires or groups of luminaires via the LiteLogic app. The LE-CMS2 can initiate on and off command by simply walking in or out of a room.

UL Certified DLC Qualified California Title 24 FCC Approved Litelogic bluetooth Warranty

Need more information?

We are happy to answer any questions you have about the LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor.

Spec Sheet Request More Info Rebate Finder

Configure your LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

Model

Features

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP20, suitable for indoor use
  • Finish: White
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 120-277VAC, 60Hz
  • Output Current: 6A Max @120VAC, 6A Max @277VAC

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, RohS
  • FCC ID: 2A26YLTKTVT2022
  • DesignLights Consortium® Qualified Product

Features & Benefits

  • Includes LiteLogic wireless Bluetooth® mesh technology
  • Daylight Harvesting
  • Dual-tech PIR + Ultrasonic technology provides high accuracy and white range
  • 600 sq ft room coverage
  • Dual channel dimming for color tuning (CCT)

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 100' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 5.0

Sensor Details

  • Analog PIR sensor + Ultrasonic

Configure your LE-CMS2 Series LiteLogic PIR and Ultrasonic Ceiling Motion Sensor

Model

Features

Construction

  • Housing: UL 94-5VA
  • IP Rating: IP20, suitable for indoor use
  • Finish: White
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -30°C to 85°C (-22°F to 185°F)

Electrical

  • Input Voltage: 120-277VAC, 60Hz
  • Output Current: 6A Max @120VAC, 6A Max @277VAC

Testing & Compliance

  • UL Listed LED Controller, complies to UL 8750, RohS
  • FCC ID: 2A26YLTKTVT2022
  • DesignLights Consortium® Qualified Product

Features & Benefits

  • Includes LiteLogic wireless Bluetooth® mesh technology
  • Daylight Harvesting
  • Dual-tech PIR + Ultrasonic technology provides high accuracy and white range
  • 600 sq ft room coverage
  • Dual channel dimming for color tuning (CCT)

Warranty

  • Five year warranty (terms and conditions apply)

Bluetooth

  • Transmit Range: 100' max
  • Radio Frequency: 2.4GHz ± 75MHz
  • Bluetooth Version: 5.0

Sensor Details

  • Analog PIR sensor + Ultrasonic
