HLC Series

Hazardous Location LED Exit Combo

HLC Series Hazardous Location LED Exit Combo

New
click for video pic1 pic2
large view image

New
HLC Series Hazardous Location LED Exit Combo
HLC Series Hazardous Location LED Exit Combo


HLC Series Hazardous Location LED Exit Combo

Spec Sheet Request More Info

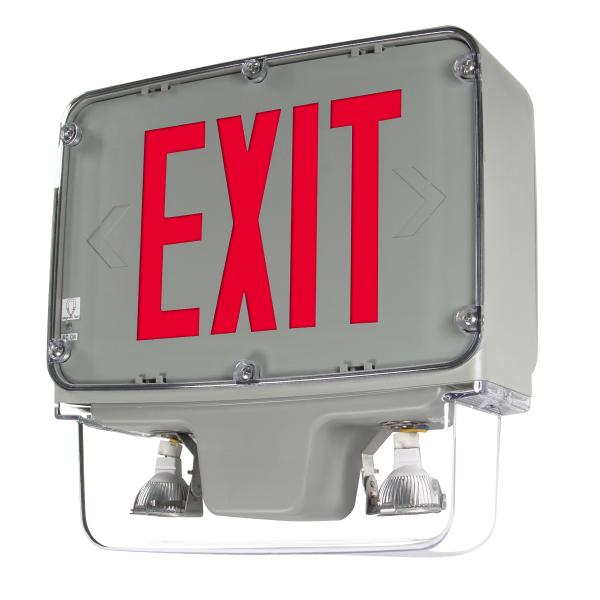

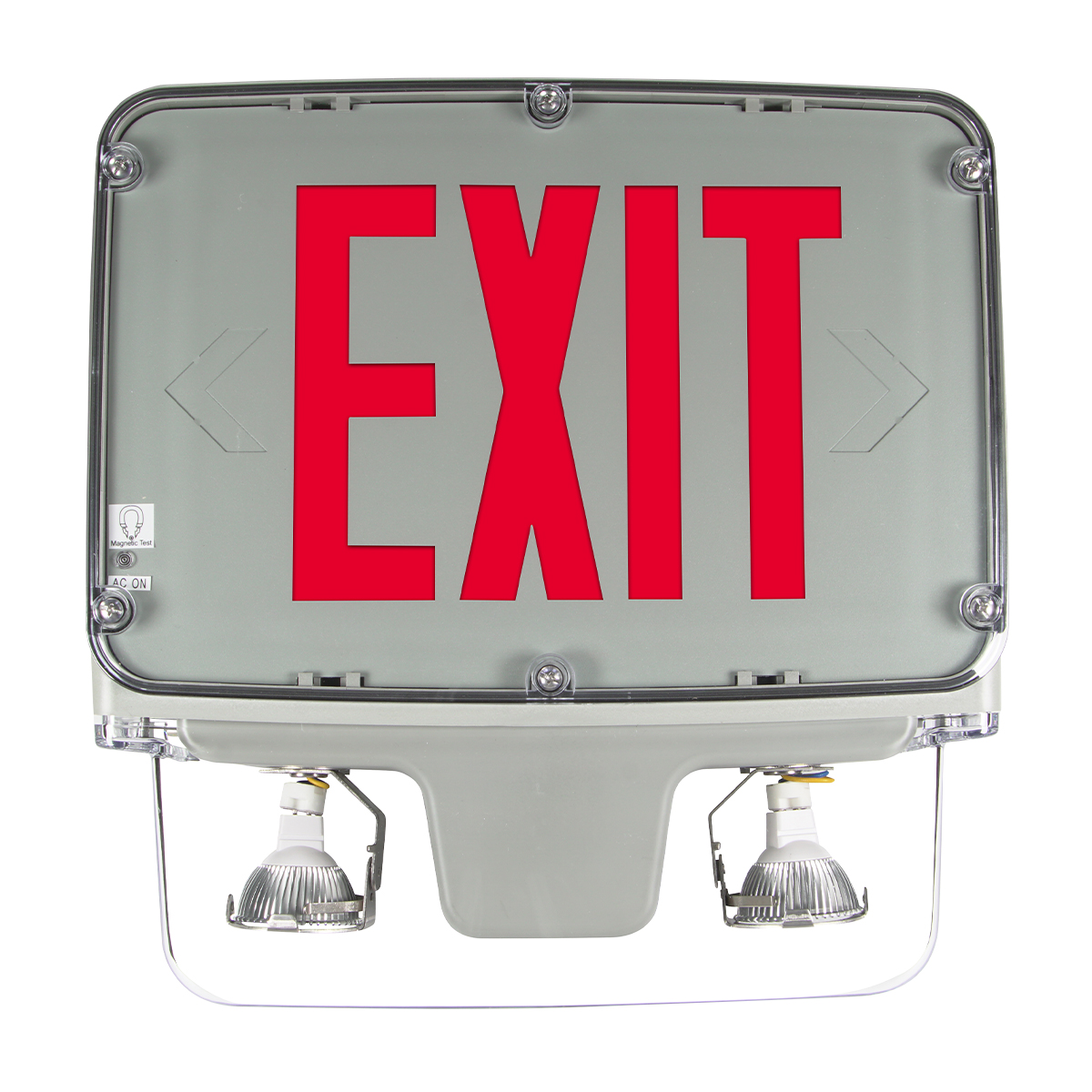

The HLC Series is a hazardous location emergency exit combo constructed of fiberglass-reinforced polycarbonate in a gray finish. The sign is UL 844 and UL924 Listed and rated for use in: Class I, Division 2, Groups A, B, C & D. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware with optional tamper resistant hardware for extra protection and offers several levels of protection against the elements, including dust, dirt and water making this exit combo ideal for harsh environments.

cULus Listed cold_loc haz_loc cULus Listed for Wet Locations IP66 Rated for protection from high pressure water jets from any direction CEC Compliant Warranty

Features & Benefits

  • Rated for Class 1, Division 2, Groups A,B,C, & D
  • Remote capacity from 4.8W up to 15W
  • IP66 Rated
  • Easy snap-out chevron directional indicators
  • California Energy Commission (CEC) compliant
  • Long-life, high-intensity, red or green LEDs with 2 x 3.6W LED lamp heads offering optimized center-to-center spacing up to 47’
  • Housing is fiberglass reinforced polycarbonate construction, Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
  • 120/277VAC Dual primary, 60Hz
  • 6V/12V maintenance-free NiCad battery
  • Remote Capacity: Single-face = 7.8W, Double-face = 4.8W, No Heads (NHR option) = 15W (single-face) or 12W (double-face)
  • Operating Temp: 0°C to 50°C (32°F to 122°F) or -20°C to 50°C (-4°F to 122°F) with CL option
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field-selectable directional chevrons
  • Pre-installed conduit hub for conduit and pendant mount installation

HLC-LED-MR16.IES
HLC Series Hazardous Location LED Exit Combo

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

HLC-1-G-6
HLC-1-G-6-CL
HLC-1-G-6-CL-G2
HLC-1-G-6-CL-G2-NHR
HLC-1-G-6-CL-G2-NHR-TRH
HLC-1-G-6-CL-G2-TRH
HLC-1-G-6-CL-NHR
HLC-1-G-6-CL-NHR-TRH
HLC-1-G-6-CL-TRH
HLC-1-G-6-G2
HLC-1-G-6-G2-NHR
HLC-1-G-6-G2-NHR-TRH
HLC-1-G-6-G2-TRH
HLC-1-G-6-NHR
HLC-1-G-6-NHR-TRH
HLC-1-G-6-TRH
HLC-1-G-12
HLC-1-G-12-CL
HLC-1-G-12-CL-G2
HLC-1-G-12-CL-G2-NHR
HLC-1-G-12-CL-G2-NHR-TRH
HLC-1-G-12-CL-G2-TRH
HLC-1-G-12-CL-NHR
HLC-1-G-12-CL-NHR-TRH
HLC-1-G-12-CL-TRH
HLC-1-G-12-G2
HLC-1-G-12-G2-NHR
HLC-1-G-12-G2-NHR-TRH
HLC-1-G-12-G2-TRH
HLC-1-G-12-NHR
HLC-1-G-12-NHR-TRH
HLC-1-G-12-TRH
HLC-1-R-6
HLC-1-R-6-CL
HLC-1-R-6-CL-G2
HLC-1-R-6-CL-G2-NHR
HLC-1-R-6-CL-G2-NHR-TRH
HLC-1-R-6-CL-G2-TRH
HLC-1-R-6-CL-NHR
HLC-1-R-6-CL-NHR-TRH
HLC-1-R-6-CL-TRH
HLC-1-R-6-G2
HLC-1-R-6-G2-NHR
HLC-1-R-6-G2-NHR-TRH
HLC-1-R-6-G2-TRH
HLC-1-R-6-NHR
HLC-1-R-6-NHR-TRH
HLC-1-R-6-TRH
HLC-1-R-12
HLC-1-R-12-CL
HLC-1-R-12-CL-G2
HLC-1-R-12-CL-G2-NHR
HLC-1-R-12-CL-G2-NHR-TRH
HLC-1-R-12-CL-G2-TRH
HLC-1-R-12-CL-NHR
HLC-1-R-12-CL-NHR-TRH
HLC-1-R-12-CL-TRH
HLC-1-R-12-G2
HLC-1-R-12-G2-NHR
HLC-1-R-12-G2-NHR-TRH
HLC-1-R-12-G2-TRH
HLC-1-R-12-NHR
HLC-1-R-12-NHR-TRH
HLC-1-R-12-TRH
HLC-2-G-6
HLC-2-G-6-CL
HLC-2-G-6-CL-G2
HLC-2-G-6-CL-G2-NHR
HLC-2-G-6-CL-G2-NHR-TRH
HLC-2-G-6-CL-G2-TRH
HLC-2-G-6-CL-NHR
HLC-2-G-6-CL-NHR-TRH
HLC-2-G-6-CL-TRH
HLC-2-G-6-G2
HLC-2-G-6-G2-NHR
HLC-2-G-6-G2-NHR-TRH
HLC-2-G-6-G2-TRH
HLC-2-G-6-NHR
HLC-2-G-6-NHR-TRH
HLC-2-G-6-TRH
HLC-2-G-12
HLC-2-G-12-CL
HLC-2-G-12-CL-G2
HLC-2-G-12-CL-G2-NHR
HLC-2-G-12-CL-G2-NHR-TRH
HLC-2-G-12-CL-G2-TRH
HLC-2-G-12-CL-NHR
HLC-2-G-12-CL-NHR-TRH
HLC-2-G-12-CL-TRH
HLC-2-G-12-G2
HLC-2-G-12-G2-NHR
HLC-2-G-12-G2-NHR-TRH
HLC-2-G-12-G2-TRH
HLC-2-G-12-NHR
HLC-2-G-12-NHR-TRH
HLC-2-G-12-TRH
HLC-2-R-6
HLC-2-R-6-CL
HLC-2-R-6-CL-G2
HLC-2-R-6-CL-G2-NHR
HLC-2-R-6-CL-G2-NHR-TRH
HLC-2-R-6-CL-G2-TRH
HLC-2-R-6-CL-NHR
HLC-2-R-6-CL-NHR-TRH
HLC-2-R-6-CL-TRH
HLC-2-R-6-G2
HLC-2-R-6-G2-NHR
HLC-2-R-6-G2-NHR-TRH
HLC-2-R-6-G2-TRH
HLC-2-R-6-NHR
HLC-2-R-6-NHR-TRH
HLC-2-R-6-TRH
HLC-2-R-12
HLC-2-R-12-CL
HLC-2-R-12-CL-G2
HLC-2-R-12-CL-G2-NHR
HLC-2-R-12-CL-G2-NHR-TRH
HLC-2-R-12-CL-G2-TRH
HLC-2-R-12-CL-NHR
HLC-2-R-12-CL-NHR-TRH
HLC-2-R-12-CL-TRH
HLC-2-R-12-G2
HLC-2-R-12-G2-NHR
HLC-2-R-12-G2-NHR-TRH
HLC-2-R-12-G2-TRH
HLC-2-R-12-NHR
HLC-2-R-12-NHR-TRH
HLC-2-R-12-TRH

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New
HLC Series Hazardous Location LED Exit Combo
HLC Series Hazardous Location LED Exit Combo


Hazardous Location LED Exit Combo

The HLC Series is a hazardous location emergency exit combo constructed of fiberglass-reinforced polycarbonate in a gray finish. The sign is UL 844 and UL924 Listed and rated for use in: Class I, Division 2, Groups A, B, C & D. Enclosure is built as one piece with a UV stabilized polycarbonate lens, molded gasket and stainless steel hardware with optional tamper resistant hardware for extra protection and offers several levels of protection against the elements, including dust, dirt and water making this exit combo ideal for harsh environments.

cULus Listed cold_loc haz_loc cULus Listed for Wet Locations IP66 Rated for protection from high pressure water jets from any direction CEC Compliant Warranty

Need more information?

We are happy to answer any questions you have about the HLC Series Hazardous Location LED Exit Combo.

Spec Sheet Request More Info

Configure your HLC Series Hazardous Location LED Exit Combo

Series
Style
Legend Color
Battery Voltage
Options

Configure your HLC Series Hazardous Location LED Exit Combo

Series
Style
Legend Color
Battery Voltage
Options

Features & Benefits

  • Rated for Class 1, Division 2, Groups A,B,C, & D
  • Remote capacity from 4.8W up to 15W
  • IP66 Rated
  • Easy snap-out chevron directional indicators
  • California Energy Commission (CEC) compliant
  • Long-life, high-intensity, red or green LEDs with 2 x 3.6W LED lamp heads offering optimized center-to-center spacing up to 47’
  • Housing is fiberglass reinforced polycarbonate construction, Corrosion-resistant enclosure with one piece, high-impact resistant, UV stabilized polycarbonate lens and molded gasket with stainless steel screws
  • 120/277VAC Dual primary, 60Hz
  • 6V/12V maintenance-free NiCad battery
  • Remote Capacity: Single-face = 7.8W, Double-face = 4.8W, No Heads (NHR option) = 15W (single-face) or 12W (double-face)
  • Operating Temp: 0°C to 50°C (32°F to 122°F) or -20°C to 50°C (-4°F to 122°F) with CL option
  • UL Listed 90 minute emergency run time, 24 hour recharge time
  • Fully-illuminated 6” characters with 3/4” stroke, field-selectable directional chevrons
  • Pre-installed conduit hub for conduit and pendant mount installation
