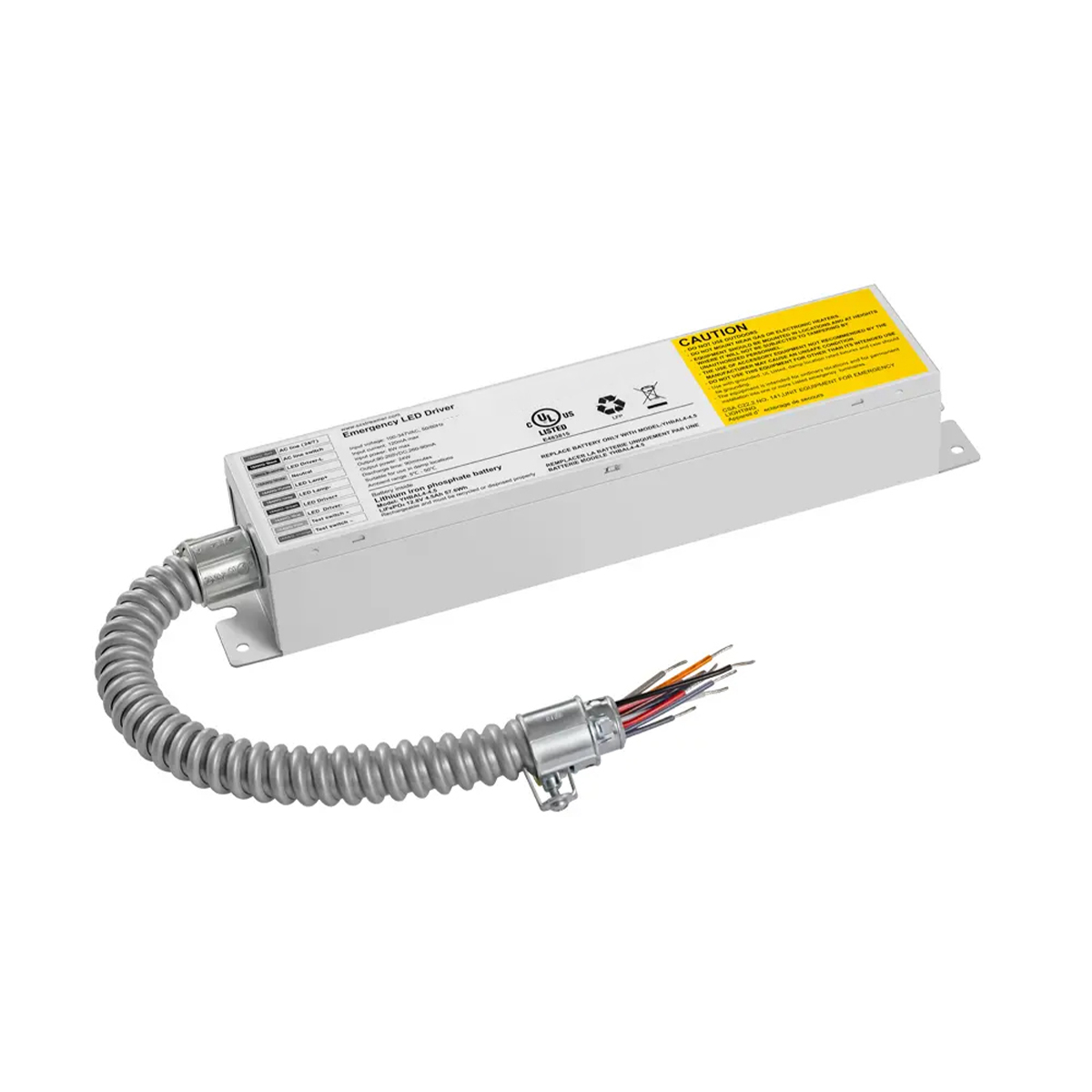

EMD Series 15W-24W Constant Power Emergency LED Driver


EMD Series 15W-24W Constant Power Emergency LED Driver

Spec Sheet Request More Info

The Exitronix EMD Series LED Backup Driver is specifically designed to provide emergency lighting of LED fixtures with the loss of power. The unit is suitable for most pre-installation and on-site applications requiring emergency illumination.

cULus Listed Damp Locations CEC Compliant Warranty
EMD Specification
EMD Series 15W-24W Constant Power Emergency LED Driver

EMD Series 15W-24W Constant Power Emergency LED Driver

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.

EMD-15-CP-C
EMD-24-CP-C

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New
EMD Series 15W-24W Constant Power Emergency LED Driver


15W-24W Constant Power Emergency LED Driver

The Exitronix EMD Series LED Backup Driver is specifically designed to provide emergency lighting of LED fixtures with the loss of power. The unit is suitable for most pre-installation and on-site applications requiring emergency illumination.

cULus Listed Damp Locations CEC Compliant Warranty

Need more information?

We are happy to answer any questions you have about the EMD Series 15W-24W Constant Power Emergency LED Driver.

Spec Sheet Request More Info

Configure your EMD Series 15W-24W Constant Power Emergency LED Driver

Model

Features

Construction

  • Unit provided with 12" conduit on one end
  • Remote Charge/Power “ON” LED illuminated push to test switch button for mandated code compliance test provides manual verification of the transfer circuit and LED fixtures

Installation

  • Suitable for top or in remote installation of an LED fixture
  • The test button is easy to locate and provides manual verification of the transfer circuit and emergency lamps
  • Can be remote mounted up to 20’ (the remote distance cannot exceed ½ the distance from the driver to the LED load specified by the AC driver manufacturer)
  • Remote charge/test button provides manual verification of the transfer circuit and emergency load

Electrical

  • Universal 120-277VAC, 50/60Hz
  • Long-life, Maintenance-free NiCad (EMD-15-CP-C) or LiFePO4 (EMD-24-CP-C) battery
  • Provides a minimum of 90min of emergency operating time within operating temperatures. 24-hour maximum battery recharge time as per UL 924
  • Charge/Power “ON” LED indicator light/ push to test switch for mandated code compliance test is included
  • Input over current protection, output over voltage protection, output under current protection, output short circuit protection

Testing & Compliance

  • UL Listed for Dry/Damp Locations
  • Meets UL 924 requirements
  • CEC Title 20 compliant
  • Suitable for field installation
  • Operating temperatures: 0°C to 50°C (32°F to 122°F)

Features

  • Works with or without an AC driver to convert new or existing LED fixtures into emergency lighting
  • Provides constant power output to the load during emergency mode operation
  • Suitable for >15W/24W systems with 20-50V output voltage

Warranty

  • Any component that fails due to a manufacturing defect is guaranteed for five years, with a five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)

Configure your EMD Series 15W-24W Constant Power Emergency LED Driver

Model

Features

Construction

  • Unit provided with 12" conduit on one end
  • Remote Charge/Power “ON” LED illuminated push to test switch button for mandated code compliance test provides manual verification of the transfer circuit and LED fixtures

Installation

  • Suitable for top or in remote installation of an LED fixture
  • The test button is easy to locate and provides manual verification of the transfer circuit and emergency lamps
  • Can be remote mounted up to 20’ (the remote distance cannot exceed ½ the distance from the driver to the LED load specified by the AC driver manufacturer)
  • Remote charge/test button provides manual verification of the transfer circuit and emergency load

Electrical

  • Universal 120-277VAC, 50/60Hz
  • Long-life, Maintenance-free NiCad (EMD-15-CP-C) or LiFePO4 (EMD-24-CP-C) battery
  • Provides a minimum of 90min of emergency operating time within operating temperatures. 24-hour maximum battery recharge time as per UL 924
  • Charge/Power “ON” LED indicator light/ push to test switch for mandated code compliance test is included
  • Input over current protection, output over voltage protection, output under current protection, output short circuit protection

Testing & Compliance

  • UL Listed for Dry/Damp Locations
  • Meets UL 924 requirements
  • CEC Title 20 compliant
  • Suitable for field installation
  • Operating temperatures: 0°C to 50°C (32°F to 122°F)

Features

  • Works with or without an AC driver to convert new or existing LED fixtures into emergency lighting
  • Provides constant power output to the load during emergency mode operation
  • Suitable for >15W/24W systems with 20-50V output voltage

Warranty

  • Any component that fails due to a manufacturing defect is guaranteed for five years, with a five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
EMD Series 15W-24W Constant Power Emergency LED Driver
EMD Specification

Contact us or your sales rep if you need a part number that isn't listed here.

EMD-15-CP-C
EMD-24-CP-C

Enter your zip code to find a representative in your area.
