Guardian G3

New
pic1
large view image
Guardian G3
Explore the complete Guardian G3 offering

More Guardian G3 Products

New
ELD-G3 Series Emergency LED Driver with Guardian G3


ELD-G3 Series Emergency LED Driver with Guardian G3

Spec Sheet Request More Info

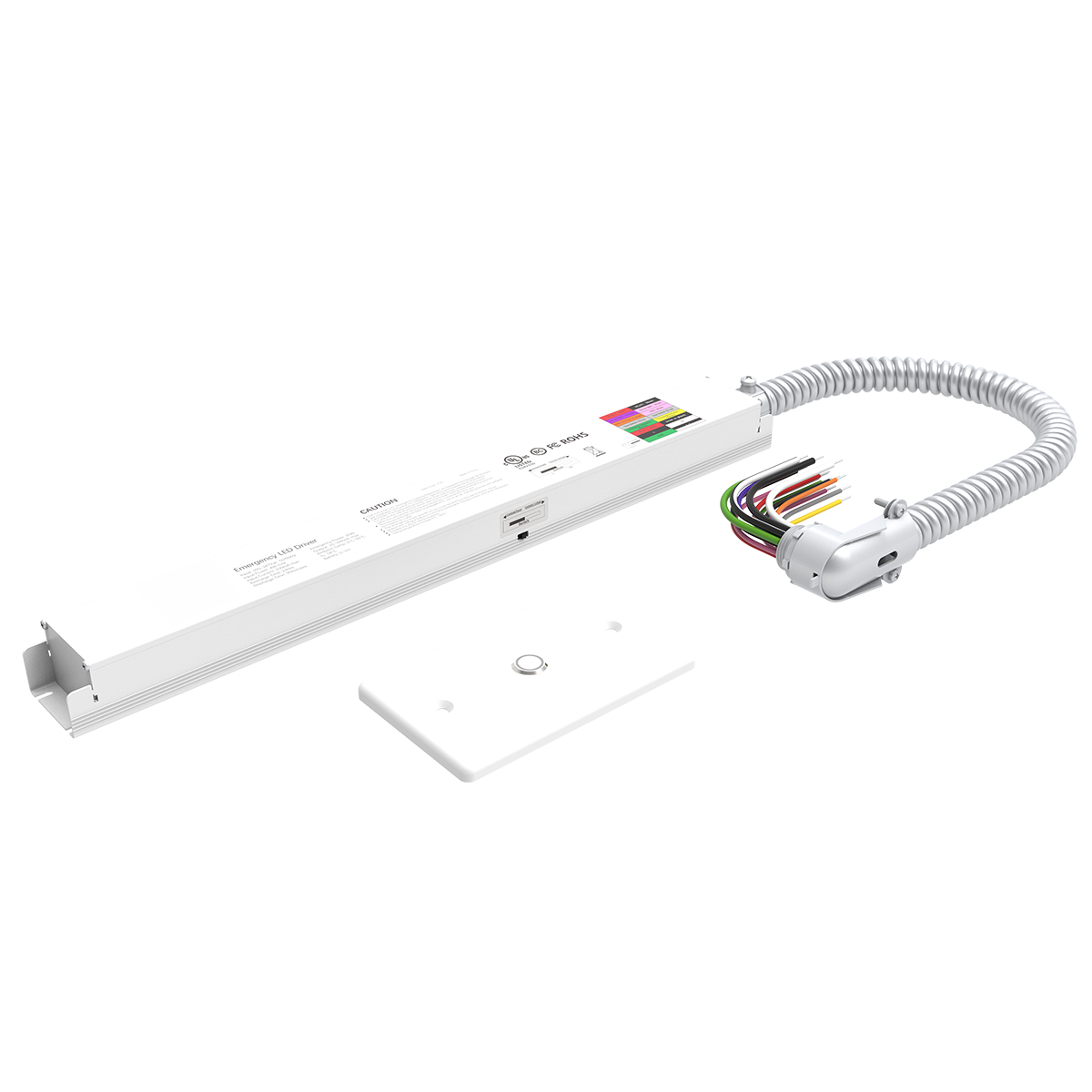

The Exitronix ELD-G3 Series emergency LED driver is specifically designed to enable emergency lighting of LED fixtures with the loss of power. The ELD-G3 configuration makes the series suitable for most pre-installation and on-site applications requiring emergency illumination.The GUARDIAN G3 remote monitoring and reporting system from Exitronix simplifies code compliance and significantly reduces operating and maintenance costs by offering automated testing, remote monitoring and reporting of emergency fixture status from a centralized location.

cULus Compliant Damp Locations Remote Reporting Warranty
ELD-G3 Specification
ELD-G3 Installation
ELD-G3 Series Emergency LED Driver with Guardian G3

ELD-G3 Series Emergency LED Driver with Guardian G3

IES Files


Guardian G3 Accessories

GTWY-PRIMARY
Primary Remote Reporting Gateway
GTWY-SECONDARY
Secondary Remote Reporting Gateway, Extends Range
NETWORK-SWITCH-16
16 Port Switch
NETWORK-SWITCH-24
24 Port Switch
NETWORK-SWITCH-5
5 Port Switch
NETWORK-SWITCH-8
8 Port Switch
ROUTER
Wireless Internet Router
TAB11
11" Tablet, Includes Guardian G3 Software
TAB12
12.4" Tablet, Includes Guardian G3 Software
WALLBRK-LOCK11
Wall Bracket for TAB11, With Lock
WALLBRK-LOCK12
Wall Bracket for TAB12, With Lock

Contact us or your sales rep if you need a part number that isn't listed here.

ELD-8-CP-G3
ELD-8-CP-G3PRO
ELD-16-CP-G3
ELD-16-CP-G3PRO

Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite
Guardian G3


New
ELD-G3 Series Emergency LED Driver with Guardian G3


Emergency LED Driver with Guardian G3

The Exitronix ELD-G3 Series emergency LED driver is specifically designed to enable emergency lighting of LED fixtures with the loss of power. The ELD-G3 configuration makes the series suitable for most pre-installation and on-site applications requiring emergency illumination.The GUARDIAN G3 remote monitoring and reporting system from Exitronix simplifies code compliance and significantly reduces operating and maintenance costs by offering automated testing, remote monitoring and reporting of emergency fixture status from a centralized location.

cULus Compliant Damp Locations Remote Reporting Warranty

Need more information?

We are happy to answer any questions you have about the ELD-G3 Series Emergency LED Driver with Guardian G3.

Spec Sheet Request More Info

Configure your ELD-G3 Series Emergency LED Driver with Guardian G3

Series
Wattage
Power
Self-test/Self-diagnostics

Features

Features

  • Capacity: 8W, 16W
  • Input Voltage/ Frequency: 120-277VAC, 50/60Hz
  • Output Power: 8W, 16W
  • Output Voltage Range: 20-300VDC (Recommended 30-400VDC)
  • Number of Output Channels: 1 Channel
  • Output Type: Adaptive Output: 20-300VDC suitable for Nonisolated
  • Battery Type: Li-ion
  • Battery Capacity Available: 8W: 7.2V 3Ah Li-ion 16W: 14.4V 3Ah Li-ion
  • Input Surge Protection: Over-voltage, over-current, over-temp premature, short-circuit, open circuit protection and current limitation
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)

Configure your ELD-G3 Series Emergency LED Driver with Guardian G3

Series
Wattage
Power
Self-test/Self-diagnostics

Features

Features

  • Capacity: 8W, 16W
  • Input Voltage/ Frequency: 120-277VAC, 50/60Hz
  • Output Power: 8W, 16W
  • Output Voltage Range: 20-300VDC (Recommended 30-400VDC)
  • Number of Output Channels: 1 Channel
  • Output Type: Adaptive Output: 20-300VDC suitable for Nonisolated
  • Battery Type: Li-ion
  • Battery Capacity Available: 8W: 7.2V 3Ah Li-ion 16W: 14.4V 3Ah Li-ion
  • Input Surge Protection: Over-voltage, over-current, over-temp premature, short-circuit, open circuit protection and current limitation
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
ELD-G3 Series Emergency LED Driver with Guardian G3
ELD-G3 Specification
ELD-G3 Installation
GTWY-PRIMARY
Primary Remote Reporting Gateway

GTWY-SECONDARY
Secondary Remote Reporting Gateway, Extends Range

NETWORK-SWITCH-16
16 Port Switch

NETWORK-SWITCH-24
24 Port Switch

NETWORK-SWITCH-5
5 Port Switch

NETWORK-SWITCH-8
8 Port Switch

ROUTER
Wireless Internet Router

TAB11
11" Tablet, Includes Guardian G3 Software

TAB12
12.4" Tablet, Includes Guardian G3 Software

WALLBRK-LOCK11
Wall Bracket for TAB11, With Lock

WALLBRK-LOCK12
Wall Bracket for TAB12, With Lock


Contact us or your sales rep if you need a part number that isn't listed here.

ELD-8-CP-G3
ELD-8-CP-G3PRO
ELD-16-CP-G3
ELD-16-CP-G3PRO

Enter your zip code to find a representative in your area.
