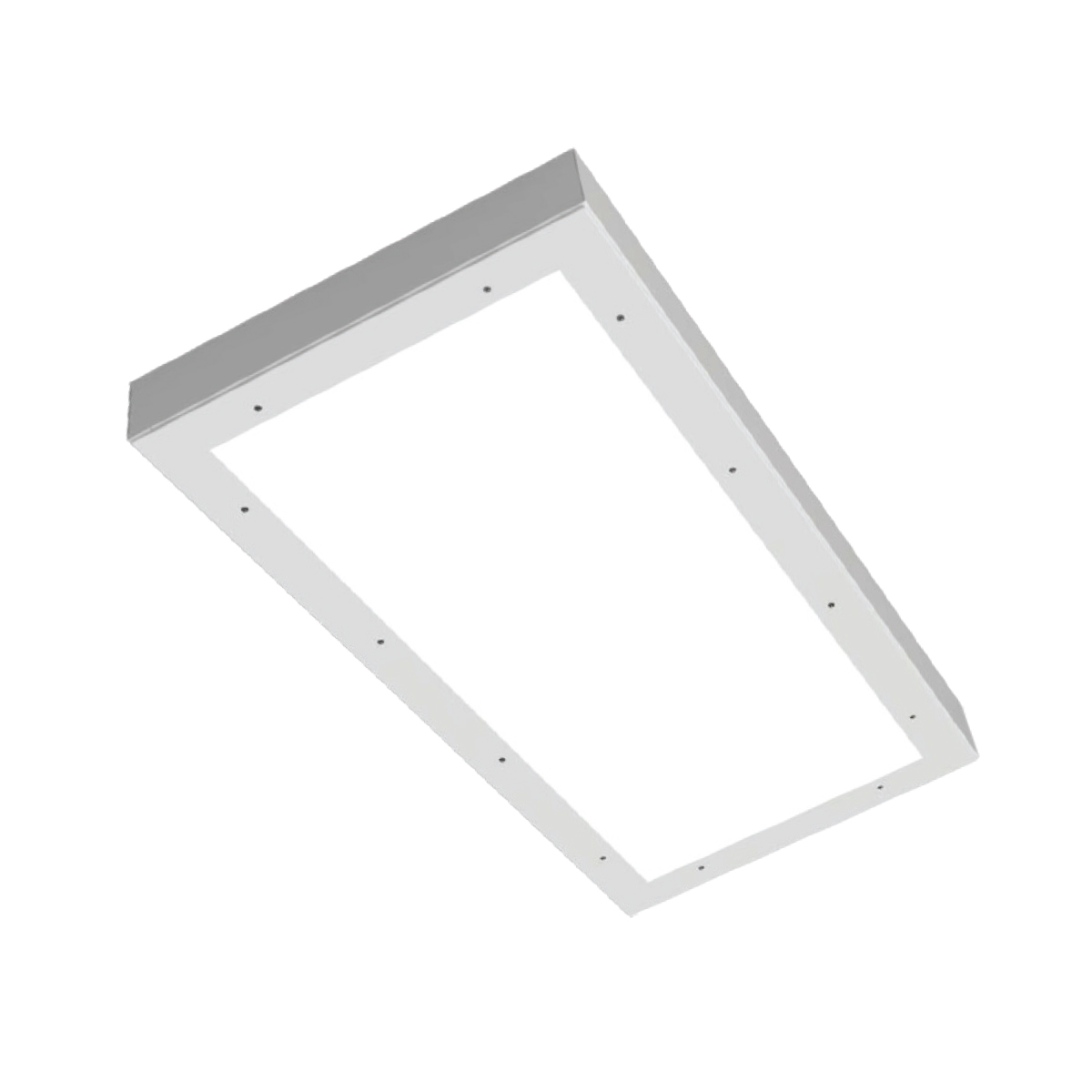

CAB Series Correctional Grade LED Surface Mount


CAB Series Correctional Grade LED Surface Mount

Spec Sheet Request More Info

The CAB Series correctional grade LED surface-mount luminaire is designed for maximum-security and behavioral-health facilities including correctional institutions, detention centers, psychiatric wards, and any high-abuse environment requiring ligature-resistant, tamper-proof lighting. Offered in 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with static color tempertures between 2700K-5000K CCT and lumen packages from 2,000 to 30,000 lumens, the CAB delivers durable, high-performance illumination in a low-profile surface-mount design.

ETL Compliant Damp Locations cULus Listed for Wet Locations IK07 Rated for Impact Protection Buy American Act Build America Buy America ligature Warranty
CAB Specification
Correctional Lighting Sell Sheet
CAB Series Correctional Grade LED Surface Mount

CAB Series Correctional Grade LED Surface Mount

IES Files



Contact us or your sales rep if you need a part number that isn't listed here.


Enter your zip code to find a representative in your area.


exitronix trace lite specialty led growlite

New
CAB Series Correctional Grade LED Surface Mount


Correctional Grade LED Surface Mount

The CAB Series correctional grade LED surface-mount luminaire is designed for maximum-security and behavioral-health facilities including correctional institutions, detention centers, psychiatric wards, and any high-abuse environment requiring ligature-resistant, tamper-proof lighting. Offered in 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with static color tempertures between 2700K-5000K CCT and lumen packages from 2,000 to 30,000 lumens, the CAB delivers durable, high-performance illumination in a low-profile surface-mount design.

ETL Compliant Damp Locations cULus Listed for Wet Locations IK07 Rated for Impact Protection Buy American Act Build America Buy America ligature Warranty

Need more information?

We are happy to answer any questions you have about the CAB Series Correctional Grade LED Surface Mount.

Spec Sheet Request More Info

Configure your CAB Series Correctional Grade LED Surface Mount

Model
Size
Wattage
Inner Lens
Voltage
CCT
Housing/Door Material
Gauge Size
Door Type
Outer Lens
Finish
Driver
Options

Features

Applications

  • Cells
  • Dayrooms (Correctional)
  • Cafeterias
  • Restrooms
  • Showers
  • Corridors
  • Sally Ports
  • Recreational (Correctional - Indoor)
  • Behavioral Health

Construction

  • Cold rolled steel or stainless steel enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in brushed, white or antimicrobial white paint that inhibits growth of bacteria on the fixture surface
  • Tested to 1,000 hours salt spray with 92% reflectance
  • Ligature-resistant design
  • Stainless steel tamper resistant T25 Torx hardware

Optics/LEDs

  • Optional Inner diffused lens for uniform LED diffusion
  • Outer polycarbonate or glass lens
  • Lens secured using through studs and vertically adjustable cold rolled steel internal hold-downs
  • Lumen packages from 2,000 to 30,000 lumens
  • 2700K, 3000K, 3500K, 4000K, 5000K CCT
  • CRI ≥ 82, optional 90 CRI (Option: 90)
  • Efficacy up to 165 lumens per watt
  • L70 > 100,000 hours

Installation

  • For ceiling surface mount installation

Electrical

  • Universal 120/277VAC, 50/60Hz
  • 0-10V Dimming driver
  • Power factor ≥ 0.90
  • 347-480VAC option (Option: HVS)

Options

  • Integral Battery Backup provides 14-watt emergency for continued illumination during power loss (Option: BB)
  • Tamper-resistant allen head screws with center pin for enhanced security over standard Torx with center pin. Available in Stainless (Option: AH) or White (Option: AHW)
  • LED Night Light offers low-level lighting without full illumination (Option: LN)
  • IP65-rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)
  • High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
  • Fully integral microwave sensor for automatic occupancy control (Option:SC)

Testing & Compliance

  • cETL Listed for Damp Locations
  • Optional Wet Location (Option: WL)
  • IK07 Rated
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -20°C to 60°C (-4°F to 140°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)

Configure your CAB Series Correctional Grade LED Surface Mount

Model
Size
Wattage
Inner Lens
Voltage
CCT
Housing/Door Material
Gauge Size
Door Type
Outer Lens
Finish
Driver
Options

Features

Applications

  • Cells
  • Dayrooms (Correctional)
  • Cafeterias
  • Restrooms
  • Showers
  • Corridors
  • Sally Ports
  • Recreational (Correctional - Indoor)
  • Behavioral Health

Construction

  • Cold rolled steel or stainless steel enclosure
  • Die-formed, TIG and spot welded
  • Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
  • Available in brushed, white or antimicrobial white paint that inhibits growth of bacteria on the fixture surface
  • Tested to 1,000 hours salt spray with 92% reflectance
  • Ligature-resistant design
  • Stainless steel tamper resistant T25 Torx hardware

Optics/LEDs

  • Optional Inner diffused lens for uniform LED diffusion
  • Outer polycarbonate or glass lens
  • Lens secured using through studs and vertically adjustable cold rolled steel internal hold-downs
  • Lumen packages from 2,000 to 30,000 lumens
  • 2700K, 3000K, 3500K, 4000K, 5000K CCT
  • CRI ≥ 82, optional 90 CRI (Option: 90)
  • Efficacy up to 165 lumens per watt
  • L70 > 100,000 hours

Installation

  • For ceiling surface mount installation

Electrical

  • Universal 120/277VAC, 50/60Hz
  • 0-10V Dimming driver
  • Power factor ≥ 0.90
  • 347-480VAC option (Option: HVS)

Options

  • Integral Battery Backup provides 14-watt emergency for continued illumination during power loss (Option: BB)
  • Tamper-resistant allen head screws with center pin for enhanced security over standard Torx with center pin. Available in Stainless (Option: AH) or White (Option: AHW)
  • LED Night Light offers low-level lighting without full illumination (Option: LN)
  • IP65-rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)
  • High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
  • Fully integral microwave sensor for automatic occupancy control (Option:SC)

Testing & Compliance

  • cETL Listed for Damp Locations
  • Optional Wet Location (Option: WL)
  • IK07 Rated
  • Buy American Act compliant
  • Build America, Buy America Act compliant
  • Operating temperatures: -20°C to 60°C (-4°F to 140°F)

Warranty

  • Five Year Warranty (Terms and Conditions Apply)
