The CAA Series correctional grade LED flat panel is designed for maximum-security and behavioral-health facilities including correctional institutions, detention centers, psychiatric wards, and any high-abuse environment requiring ligature-resistant, tamper-proof lighting. Offered in 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with static color temperatures between 2700K-5000K CCT and lumen packages from 1,000 to 25,000 lumens, the CAA delivers durable, high-performance illumination.
Applications
Cells
Dayrooms (Correctional)
Cafeterias
Restrooms
Showers
Corridors
Sally Ports
Recreational (Correctional - Indoor)
Behavioral Health
Construction
Cold rolled steel or stainless steel enclosure
Die-formed, TIG and spot welded
Durable TGIC polyester powder coating featuring a 5-stage pre-treatment for superior adhesion and corrosion protection
Available in white or antimicrobial white paint that inhibits growth of bacteria on the fixture surface
Tested to 1,000 hours salt spray with 92% reflectance
Ligature-resistant design
Tamper resistant T25 Torx hardware
Recessed design fits most standard T-bar grid ceilings
Optics/LEDs
Optional inner clear or diffused lens for uniform LED diffusion
Outer polycarbonate or glass lens
Lens secured using through studs and vertically adjustable cold rolled steel internal hold-downs
Lumen packages from 1,000 to 25,000 lumens
2700K, 3000K, 3500K, 4000K or 5000K CCT
CRI ≥ 82, optional 90 CRI (Option: 90)
Efficacy up to 165 lumens per watt
L70 > 100,000 hours
Installation
Universal mounting allows for both recessed flanged and recessed grid mounting
Easy installation with adjustable 90° swing arm system standard
Electrical
Universal 120/277VAC, 50/60Hz
347-480VAC option (Option: HVS)
0-10V Dimming driver
Power factor ≥ 0.90
Options
Integral Battery Backup provides 14-watt emergency for continued illumination during power loss (Option: BB)
Tamper-resistant allen head screws with center pin for enhanced security over standard Torx with center pin. (Option: AH)
LED Night Light offers low-level lighting without full illumination (Option: LN)
IP65-rated sealed construction suitable for wet locations and high-pressure wash-down. (Option: WL)
High color-rendering LEDs with ≥90 CRI for improved color accuracy (Option: 90)
Fully integral microwave sensor for automatic occupancy control (Option: SC)
Testing & Compliance
cETL Listed for Damp Locations
Optional Wet Location (IP65) (Option: WL)
Buy American Act compliant
Build America, Buy America Act compliant
Operating temperatures: -30°C to 50°C (-22°F to 122°F)
Contact us or your sales rep if you need a part number that isn't listed here.
Enter your zip code to find a representative in your area.
New

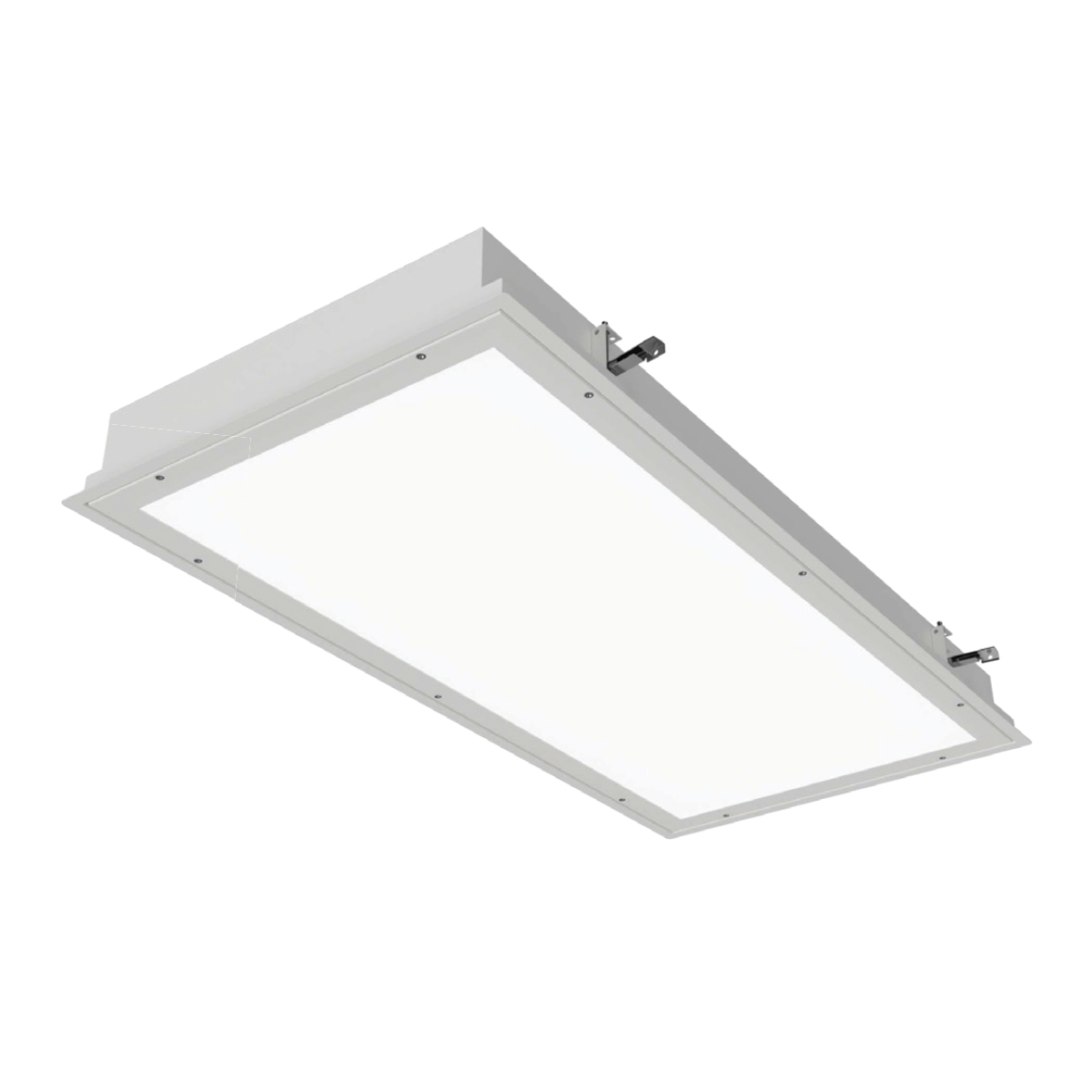

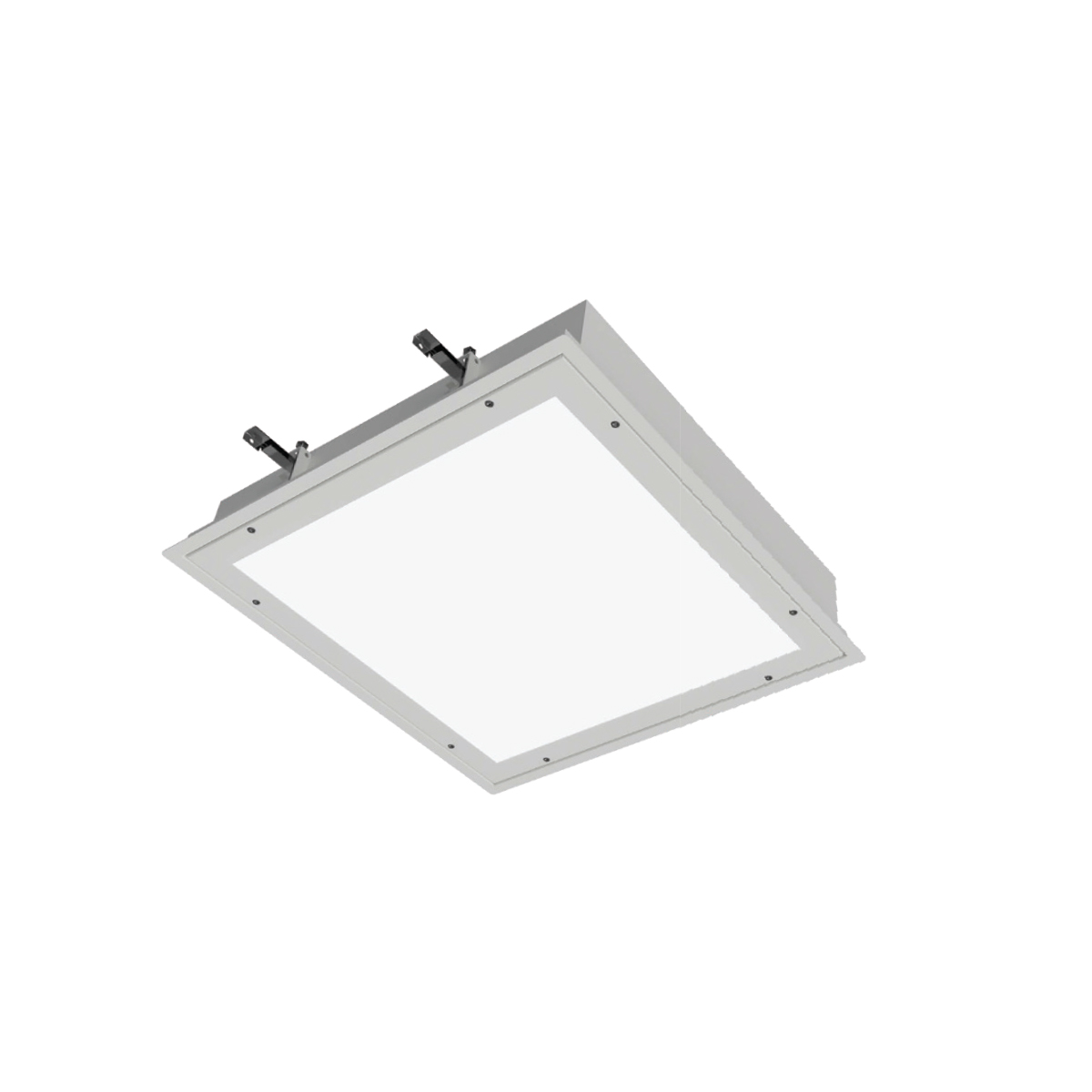

Correctional Grade LED Recessed Flat Panel
The CAA Series correctional grade LED flat panel is designed for maximum-security and behavioral-health facilities including correctional institutions, detention centers, psychiatric wards, and any high-abuse environment requiring ligature-resistant, tamper-proof lighting. Offered in 1' x 1', 1' x 2', 1' x 4', 2' x 2', and 2' x 4' sizes with static color temperatures between 2700K-5000K CCT and lumen packages from 1,000 to 25,000 lumens, the CAA delivers durable, high-performance illumination.
Need more information?
We are happy to answer any questions you have about the CAA Series Correctional Grade LED Recessed Flat Panel.
